Operating instructions K1G200-AD37-02
Translation of the original operating instructions

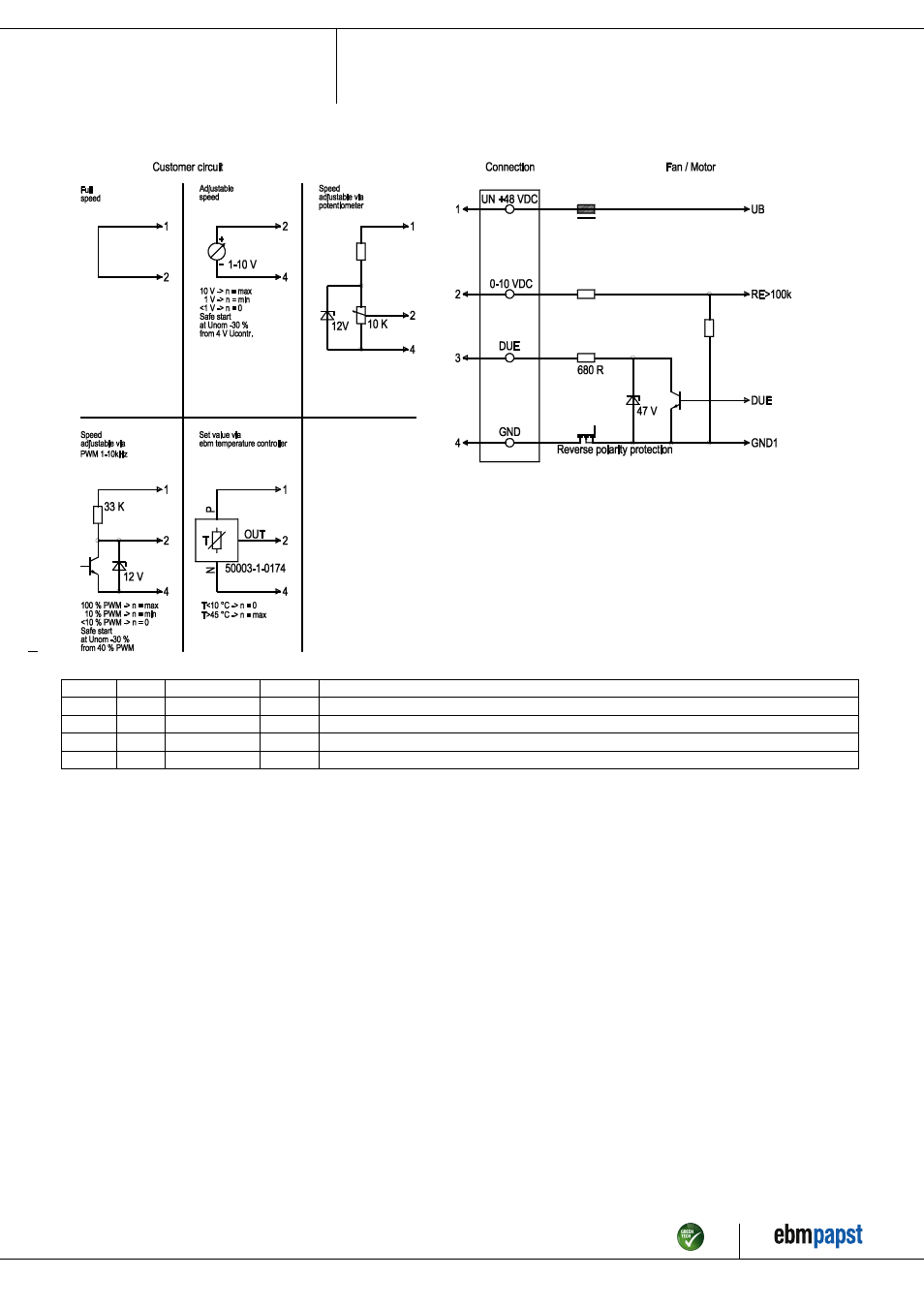

4.4 Connection screen
No. Conn. Designation Colour Function / assignment
1 1 Un +48 VDC red Power supply 48 VDC, residual ripple 3.5 %
1 2 0-10 VDC yellow Control input Re > 100 K
1 3 Tach white Speed monitoring output, 3 pulses per rotation, Isink max = 10 mA
1 4 GND blue Reference mass
Item no. 50899-5-9970 · ENG · Revision 83494 · Release 2014-10-16 · Page 7 / 9
