Dangerous Music Liaison - Manual (Page 8)

LIAISON | 3
3. INSERTS: INPUTS & OUTPUTS
[

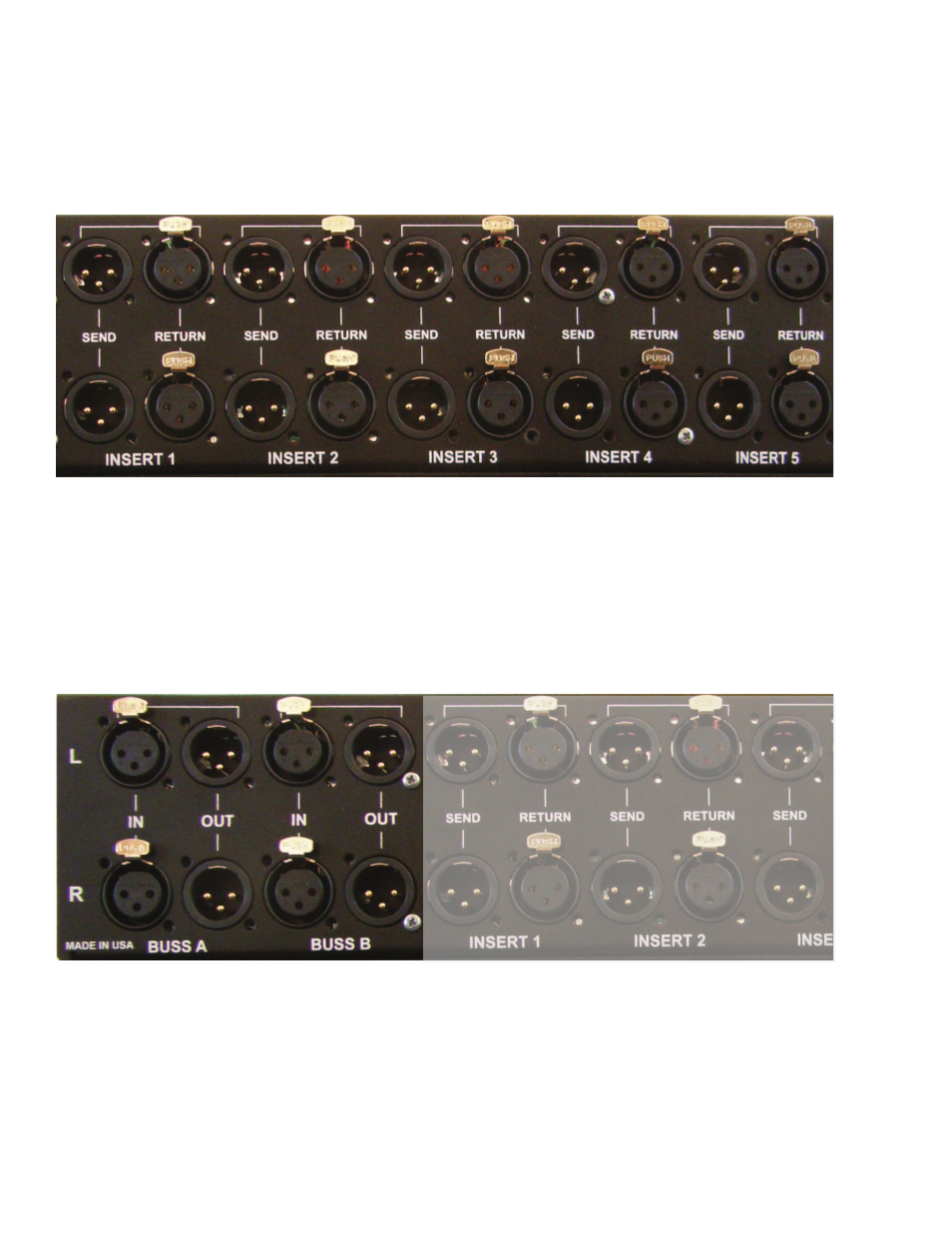

rear panel insert section pictured above
]
Feature: Connect outboard equipment here (i.e. compressor, limiter, eq, reverb...)
Benefit: Individually selectable via the front panel of the unit (more to follow on this).
Feature: Separate send and return cables, each on XLR.
Benefit: Standard issue, readily available cables.
!
Tip:
,
The ability to loop multiple pieces of gear on a single insert if desired (i.e. comp and limiter back to back).
4. BUSS A & B: INPUTS & OUTPUTS
[
rear panel buss section pictured above
]
Feature: Individual access in and out to both
buss a
&
buss b
Benefit: Leverage all your outboard gear twice, on two discrete buss paths. For example, take the output of your favorite mic
preamp and send it to
buss a
. Then send the signal into your session. Meanwhile, connect the output of your mix to
buss b
. Now all of your gear is accessible all the time for tracking, mixing and mastering.
Tip:
,
: Take the output of of
buss a
and connect it to the input of
buss b
to make one contiguous chain. This will allow
outboard that is connected later, to appear earlier. For example... the BAX EQ is in
insert 1
and the Variable Mu™
