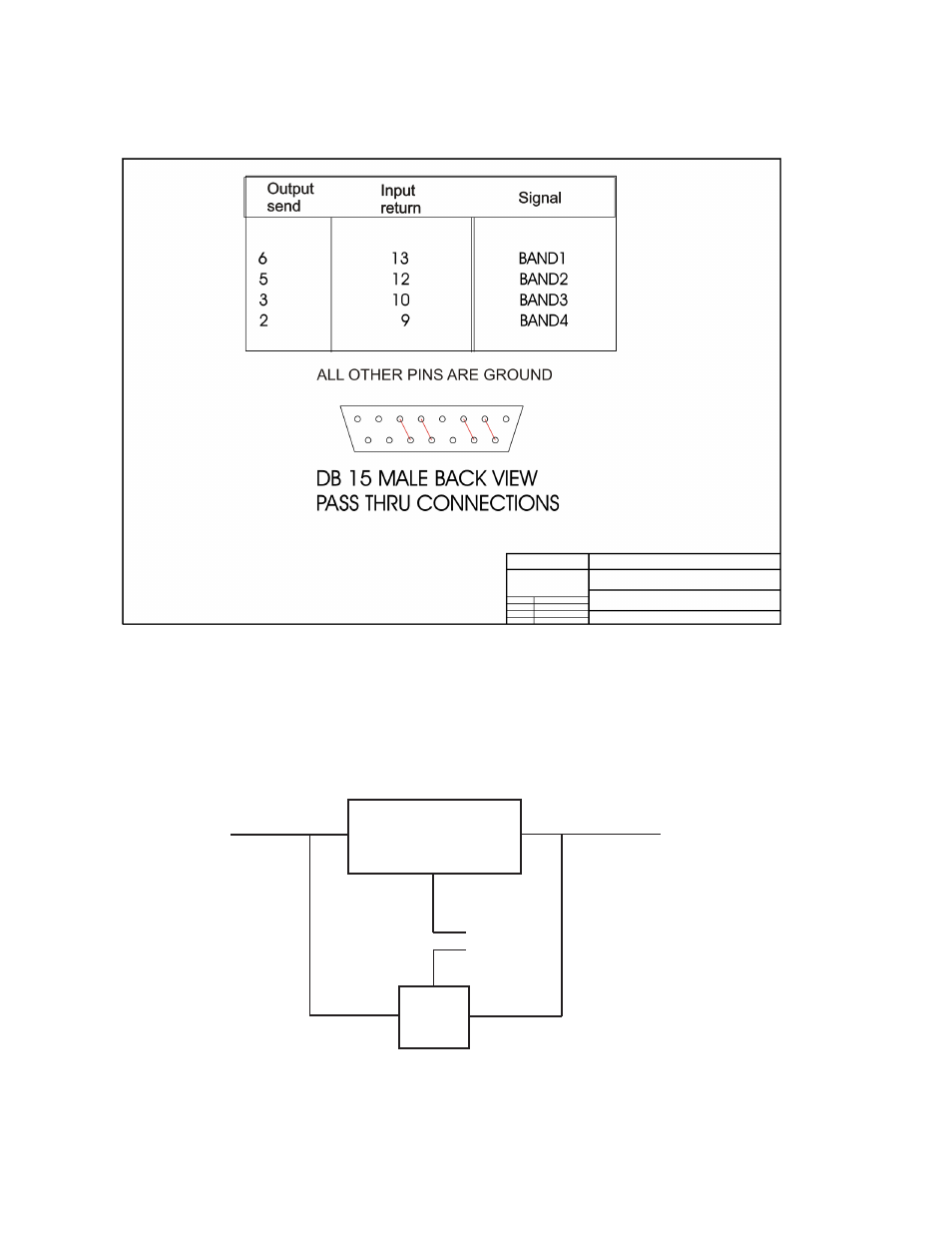

IBIS INSERT CONNECTOR

If you are going to use this, use it with caution. The inserts are a loop and must be normaled
for the band to work correctly. If there is a phase inversion in the inserted device it is possible
that the system will be an oscillator. This will not hurt Ibis, but your Speakers.

boost / cut amp

filter

Send

Return

Insert

IBIS INPUT

IBIS OUTPUT

There are 4 filter circuits in parallel in Ibis. When using the insert with a compressor you are
modifing the filter output before is sums back into the audio path. The inserts are unbalanced
