11
Manage Your Modem (continued)

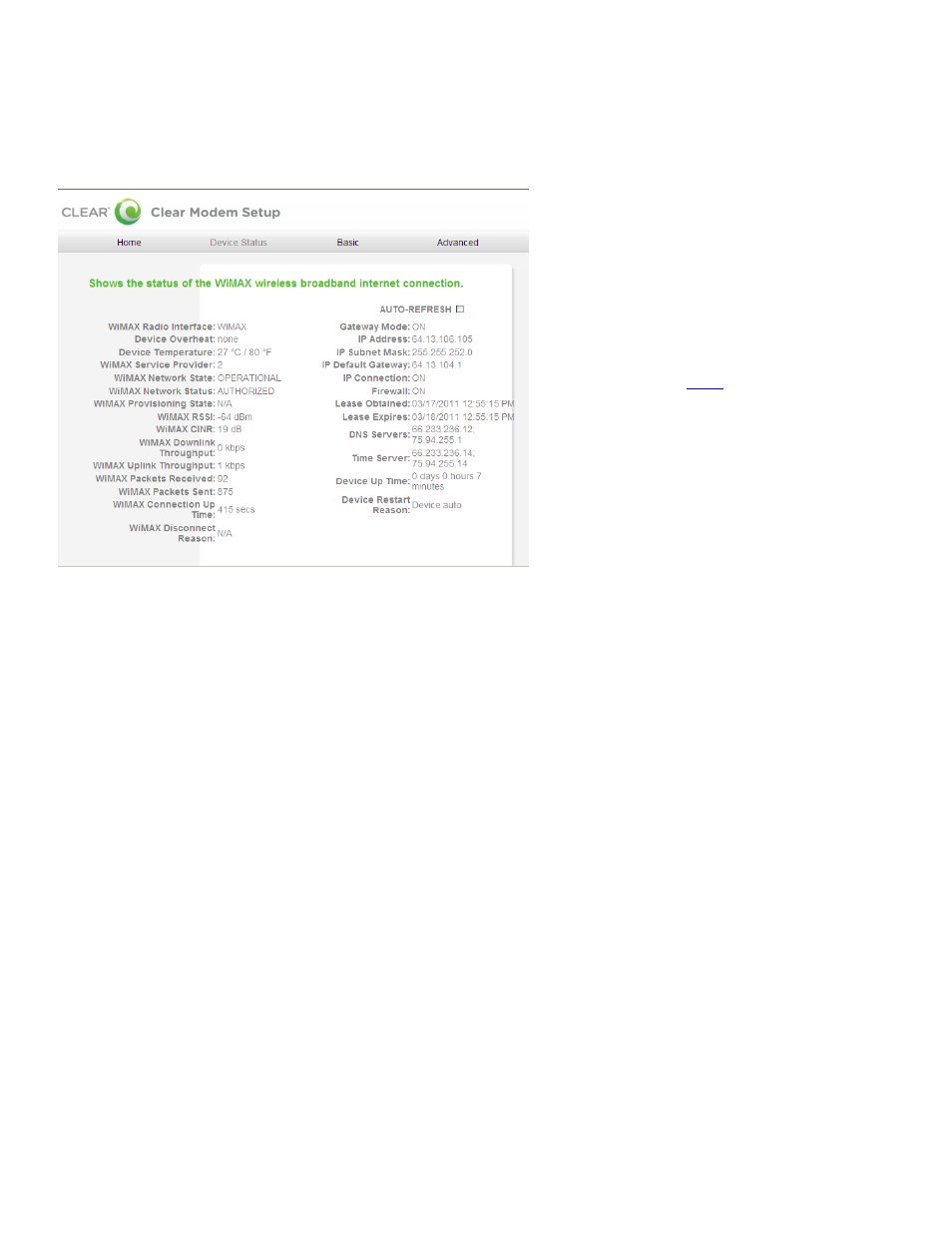

Modem Home Page / Device Status Tab
This screen shows the status of the Modem.
 Auto-Refresh: Click so the data automatically refreshes every three seconds.
 WiMAX Radio Interface: Displays the status (enabled / disabled) of the Modem.
 Device Overheat: Indicates if the Modem is overheated.
 Device Temperature: Displays the current temperate of the Modem.
 WiMAX Service Provider: Displays the service provider with whom the Modem is activated.
 WiMAX Network State: Displays the operational state of the Modem.
 WiMAX Network Status: Displays the status of the Modem on the CLEAR 4G network.
 WiMAX Provisioning State: Displays the provisioning state of the Modem.
 WiMAX RSSI: Displays the power present in the radio signal (RSSI) of the active connection.
 WiMAX CINR: Displays a measurement of signal effectiveness, or CINR, for the active
connection.
 WiMAX Downlink Throughput: Displays the downlink bandwidth. 
 WiMAX Uplink Throughput: Displays the uplink bandwidth.
 WiMAX Packets Received: Shows the number of WiMAX data packets received by the Modem.
 WiMAX Packets Sent: Shows the number of WiMAX data packets sent by the Modem.
 WiMAX Connection Up Time: Shows the length of time the Modem has been connected to the
CLEAR 4G network.
 WiMAX Disconnect Reason: Describes the reason a computer was disconnected from the
Modem.
 Gateway Mode: Displays the status of the Gateway Mode.
 IP Address: Displays the Internet Protocol (IP) Address used to locate and access your Modem.
 IP Subnet Mask: The subnet mask can be used to subdivide the network.
 IP Default Gateway: Displays the IP Default Gateway value.
 IP Connection: Displays the IP Connection status (ON or OFF).
If you’re using your Modem
and are connected to the
internet, click here to open
the Modem Home Page.
