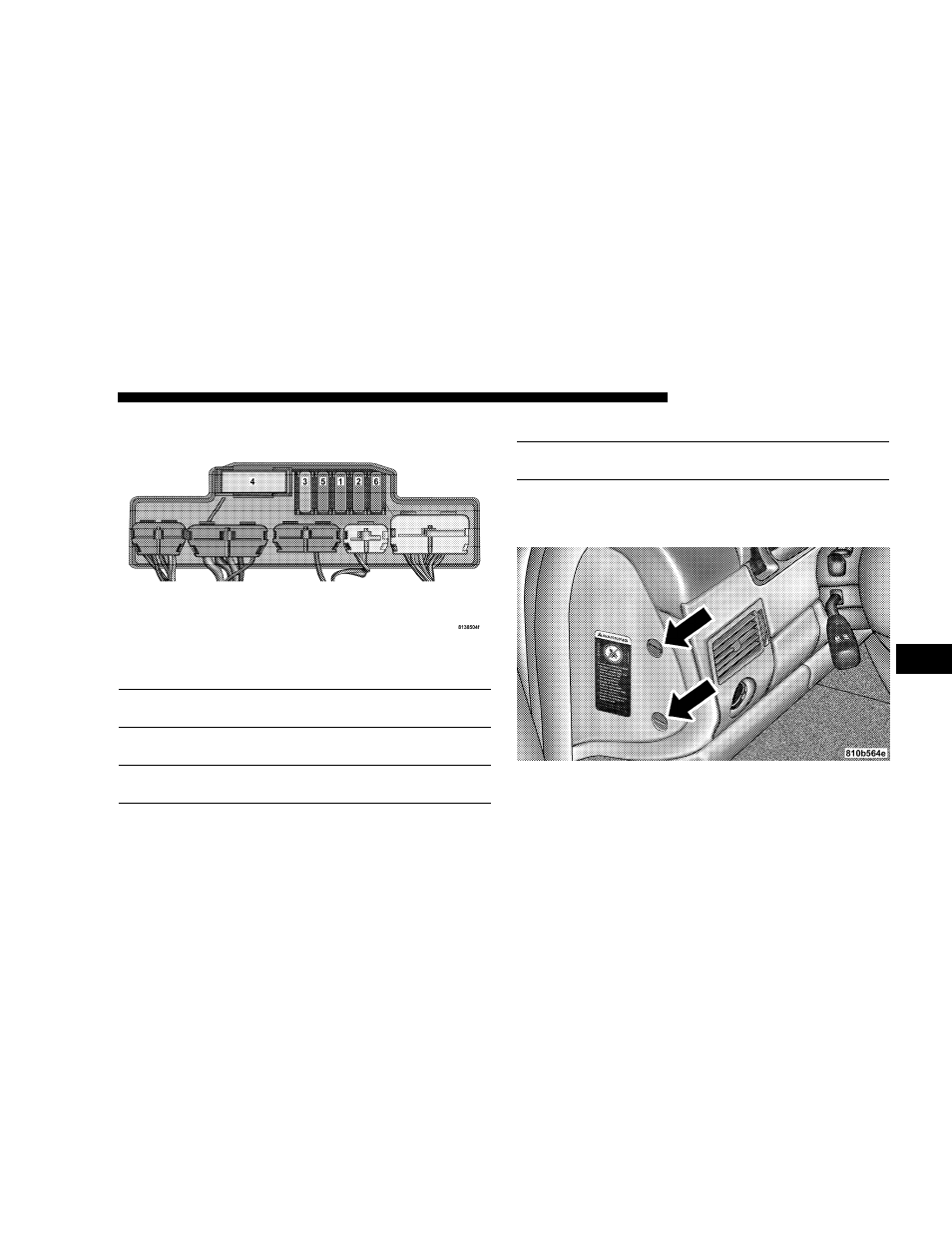

Relay Control Module Fuses

Cavity

Fuse

Circuits

1

15 Amp
Blue

Traction System

2

15 Amp
Blue

Engine Control 2

3

15 Amp
Blue

Engine Control 1

4

40 Amp
Orange

Air Pump

Cavity

Fuse

Circuits

5

15 Amp
Blue

Fuel Pump

6

15 Amp
Blue

Horn

Interior Fuses

MAINTAINING YOUR VEHICLE

233
