2-4
Installation
2.2.2 Mounting the 7C04 Chassis
To mount the 7C04 Chassis in a standard 19-inch equipment rack,
(Figure 2-2) use the following steps:
1. Slide the chassis into the equipment rack.
2. Align the holes on the chassis’ mounting brackets with the
holes on the equipment rack.
3. Insert screws (provided with the equipment rack) into the
desired holes of the mounting brackets.
4. Use a screwdriver to tighten each screw until the chassis is
secured to the equipment rack.

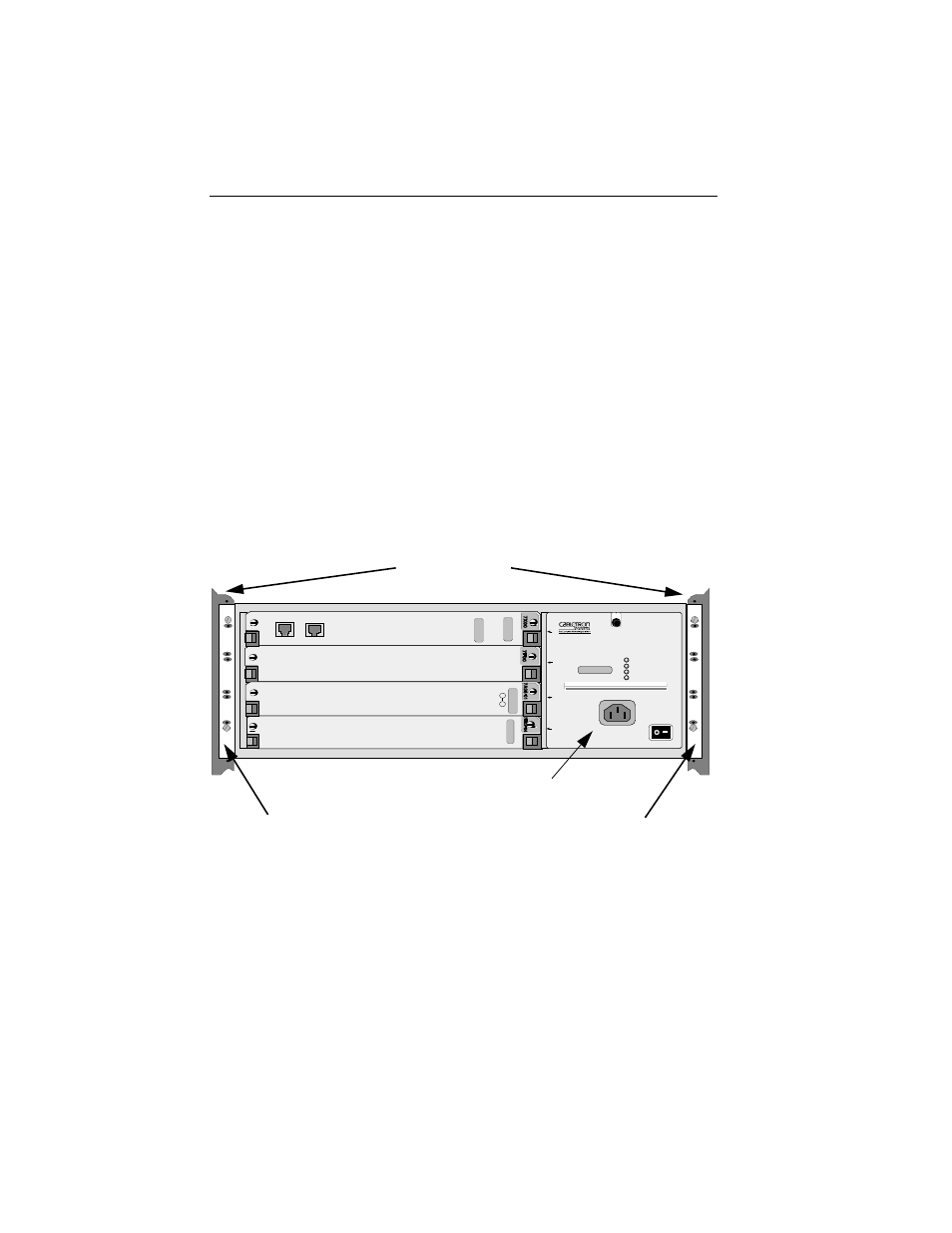

Figure 2-2. A 7C04 Chassis mounted in an equipment rack
SN MA
C
AD
R
SN
SN
SN
1
2
3
4
POWER IN
POWER OUT
OVERLOAD
FANS
Equipment Rack
Mounting Bracket
Power Supply Module
Mounting Bracket
