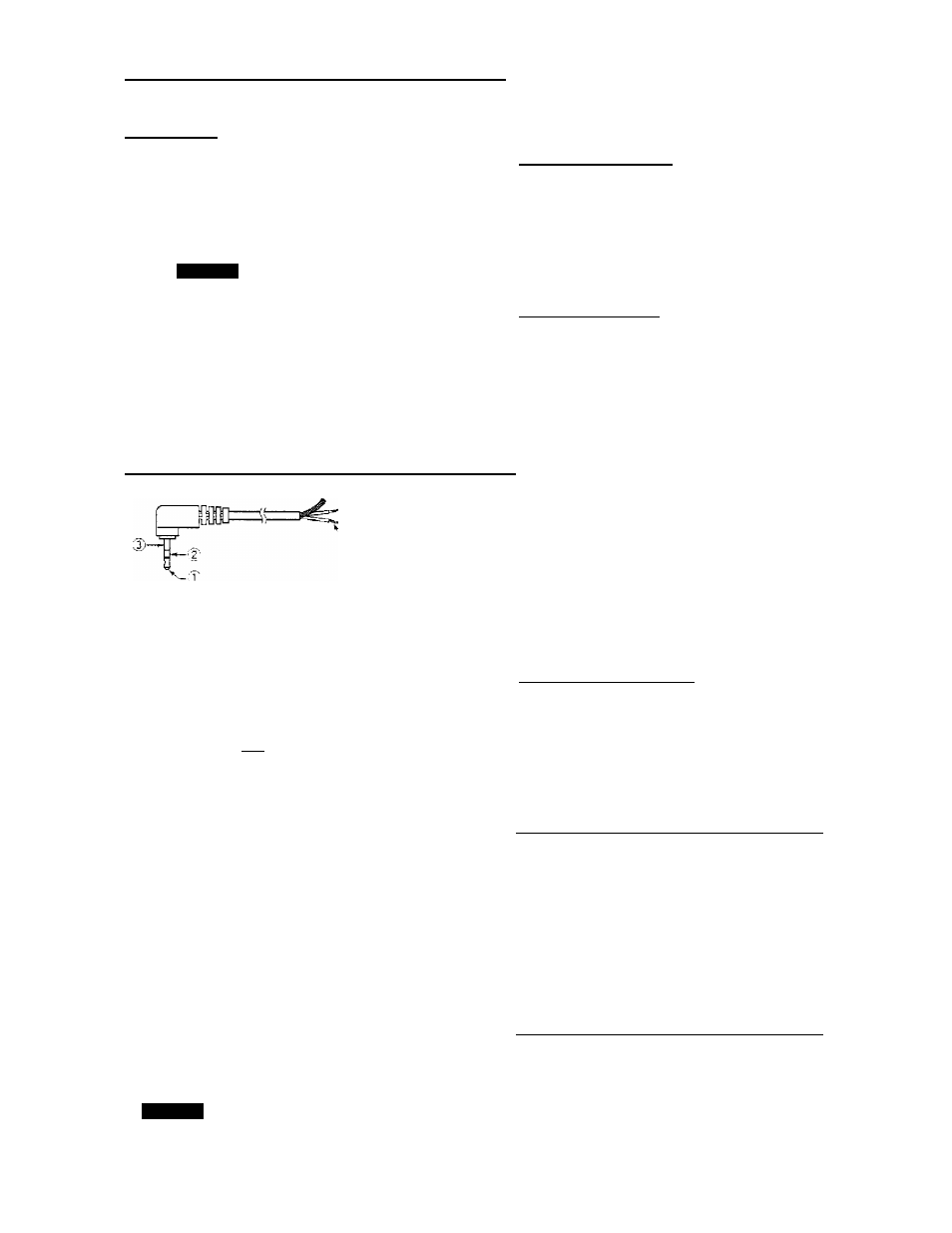

Specialized Connections and Cables
TH-D7A
GPS Connection
2.5mm Plug
oo
02.5
plug
€»
1 Tip
2 Ring
3 Sleeve
PC Connection
2.5mm Plug
To RXD on GPS
To TXD on GPS
Ground
1 Tip
2 Ring
3 Sleeve
To RXD on PC
To TXD on PC
Ground
Supplied Cable Part No E30-3374-05
1 White
2 Red
3 Shield
RXD On GPS
TXD On GPS
GND On GPS
VC-Hl
o
02.5
plug
&
(X
03.5
plug
Ode
oe
02.5
plug
Video Output Plug
2.5mm Plug
e
1 Tip
Video Signal
2 Sleeve
Ground
Video Innut Plug
3.5mm Plug
1 Tip
N/C (For VC-Hl
Camera ONLY)
2 Ring
Video Signal
3 Sleeve
Ground
Com Jack Connection
2.5mm Plug
1 Tip
To RXD on PC
2 Ring
To TXD on PC
3 Sleeve
Ground
