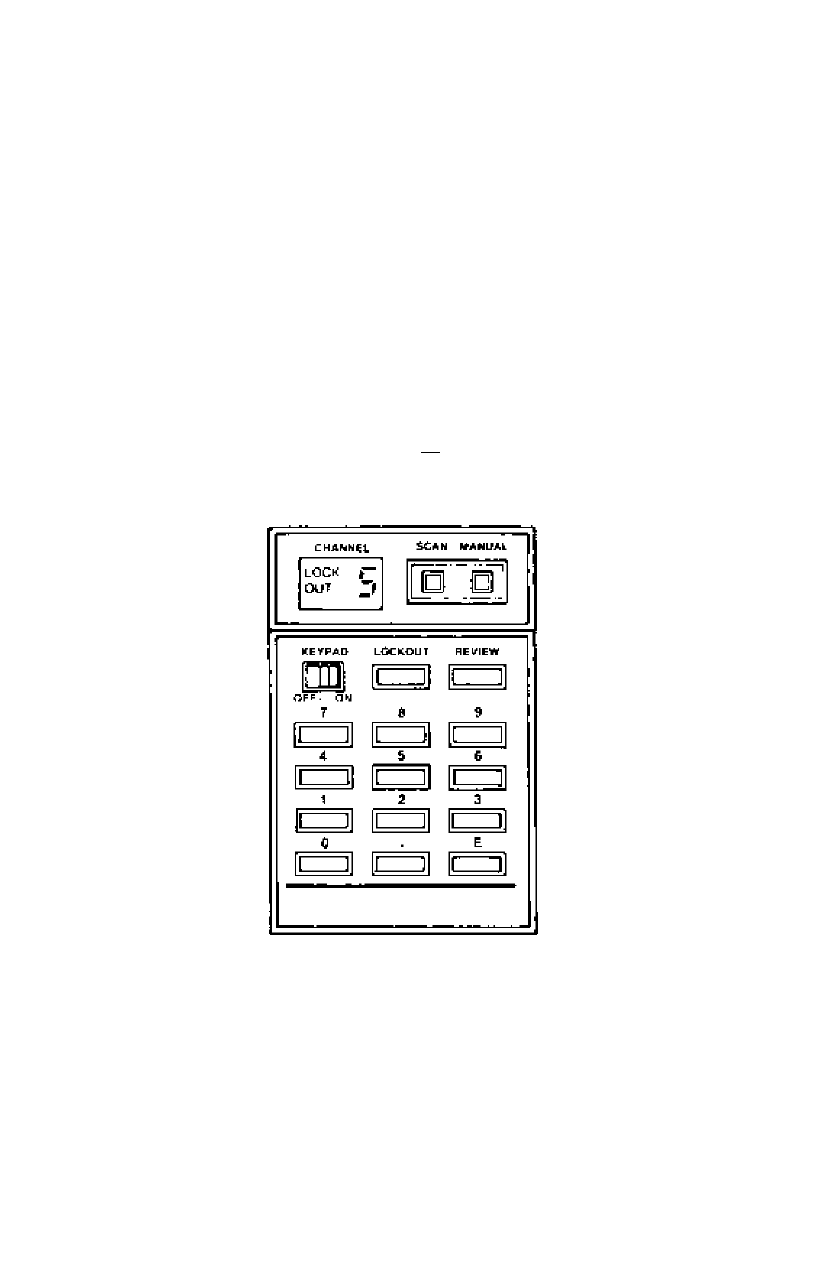

FRONT PANEL FEATURES (Figure 2)

Liquid Crystal Display: The LCD shows channel number, Irequency (by

displayi. g each digil coneaculively^, and indicates the "LOCKOUT” lunction

2 Keypad Lock: Locks the keypad lo avoid accidental entry or misprograming.

SCAN

Press to start scanning all aclive channels

MANUAL

Stops the scan fynctior^, steps scanner through channels in se
quence, and allows direct channel access

lockout

! Locks out ihe reception of signals on any selected channels while

scanning only.

Press to see the frequency programed in each channel All digits

ol the frequency will be shown in sequence

Nurneric keys a through [T]and decimal pomi Q are used

program frequencies. E enters frequencies into any of the ten

channeis.

Figure 2

LIQUiD CRVSTAL DISPLAY

The Uniden'- Bearcat*^ 5CXL i$ equipped with a custom designed liquid crystal
display to Indicate channel number, frequency and lockout mode. All LCDs have

a preferred viewing angle where the display contrast is rnaiumum, The best
viewing angle depends on design consideration, temperature and battery con
dition. Optimum viewing of Ihe Uniden* Bearcat' 50XL is achieved by holding
the unit at about AS degrees. This also provides the best position for using the

keypad.
