Cambridge SoundWorks MC630HD - Manual (Page 8)

- -

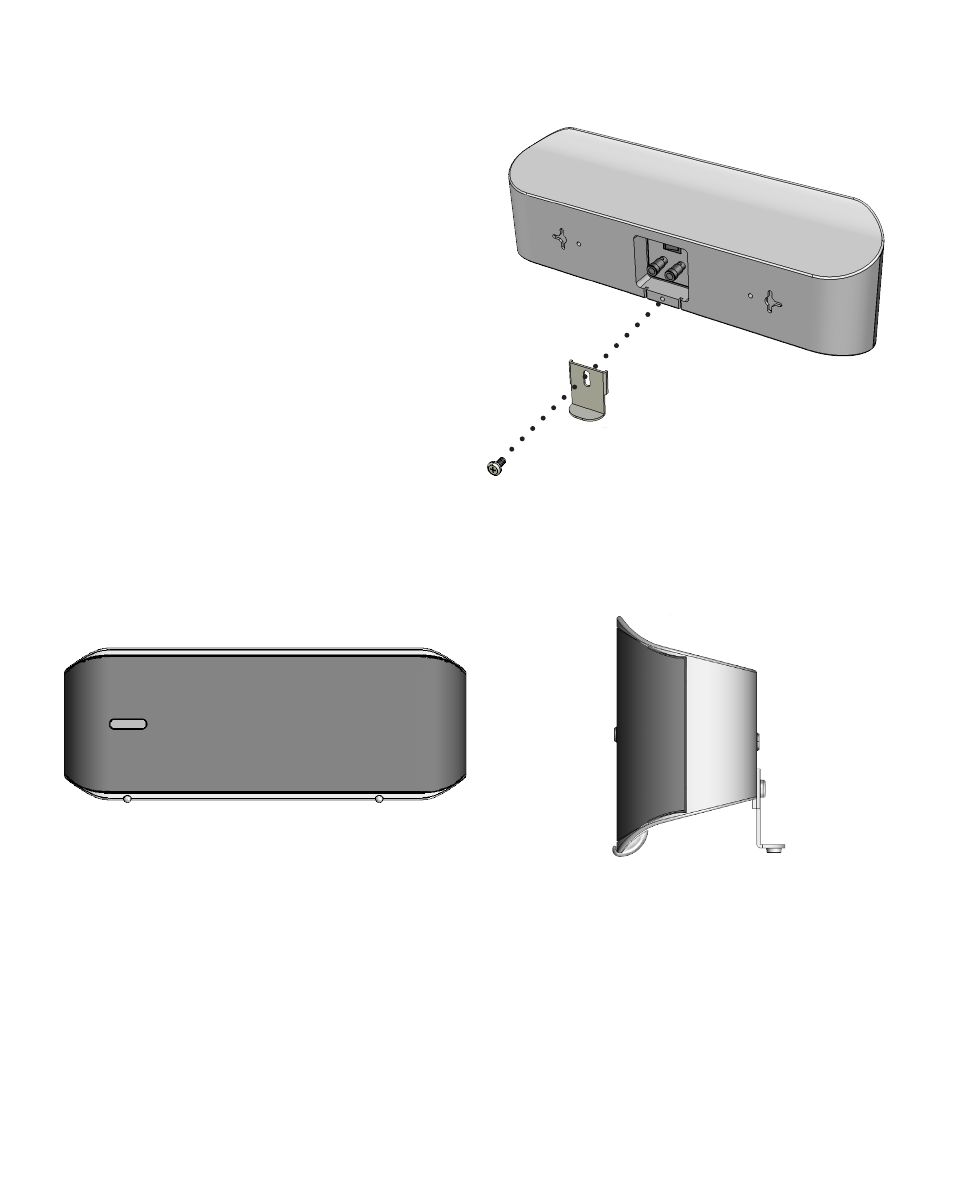

Placing Horizontally On a Tabletop Or Shelf
Attach the rear support into the channel on the rear of the
speaker using the included ¼-20 machine screw. Tighten the
set-screw finger-tight to stabilize the support.
Attach two rubber hook-shaped stick-on feet symmetrically
along the bottom edge of the speaker approximately 10” apart.
If you are mounting the speaker on an uneven surface you may
need to attach the feet closer to the center. Adapt the actual
position to your needs.
Remove the logo by pulling it straight out. Turn it 90 degrees so
that the text reads correctly. Press it back in place.
1.
2.
3.
Logo Orientation
Rubber Feet
