Cambridge SoundWorks MC630HD - Manual (Page 7)

- -
Speaker Mounting

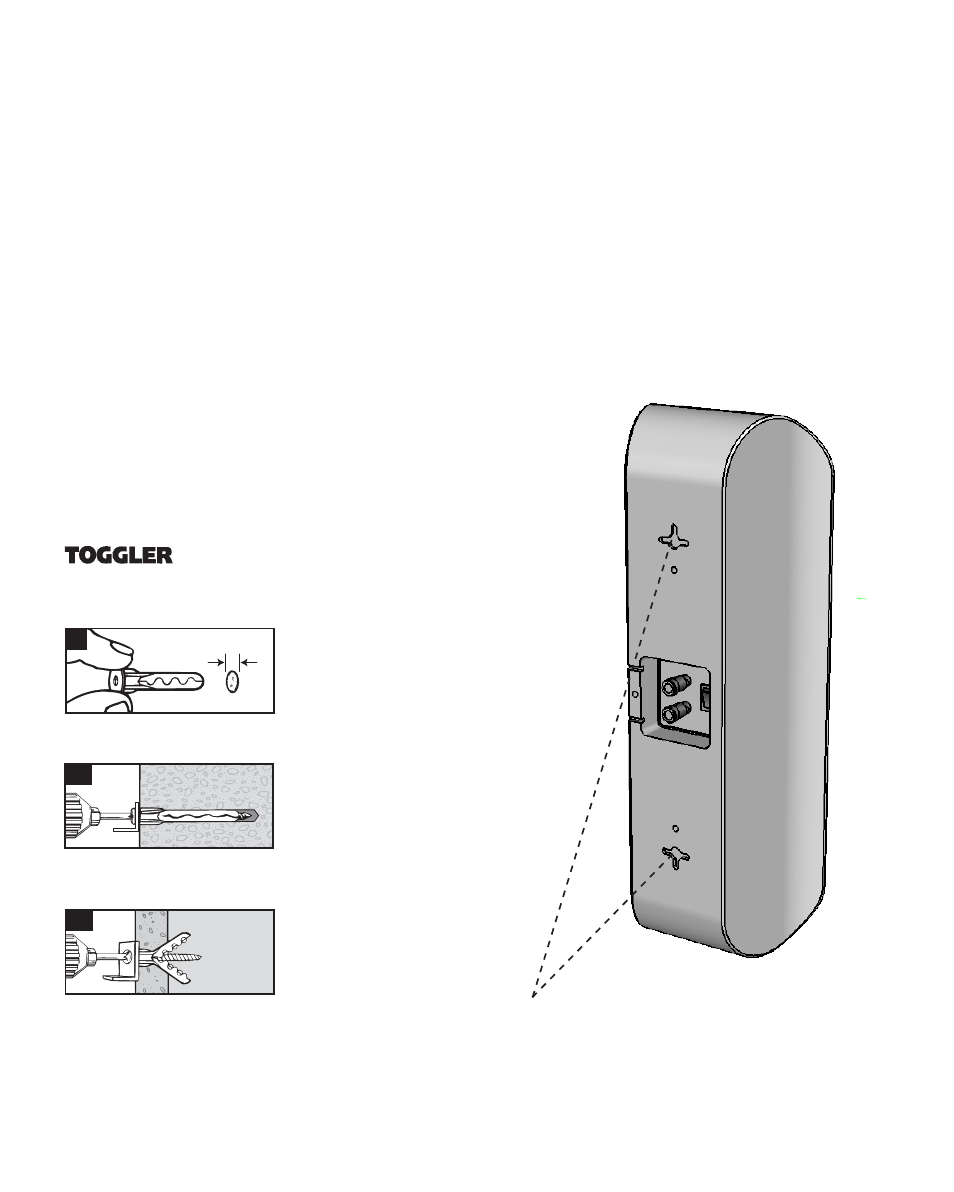

Use a keyhole slot to hang the speaker from a screwhead.
The MC630HD may be wall mounted or placed horizontally on a
table-top as a center-channel using the included hardware. Matching
floor and table-top stands are available separately from Cambridge
SoundWorks.
Hanging The Speaker On The Wall
The MC630HD may be mounted either vertically or horizontally
using the supplied wall anchors.
Using the dimension diagram as a guide, mark the position of
two locations for mounting screws and anchors. The anchors
will not be needed if you can locate the speakers directly over a
wall stud. If concealing the wiring in the wall, you should arrange
the speakers so that the wire exits the wall directly behind
the center of the speaker. Drill a ¼” diameter hole and install
wall anchors in each location. Refer to the instructions below
for proper use of the Toggler brand anchors included with this
speaker.
Insert the #10 screws into each anchor and screw them partially
in leaving approximately 3/8” exposed. Test fit the speaker on
the screws and adjust both screws so that the speaker hangs
firmly on the wall without rattling.
Attach the wire to the speaker terminals. Slide the speaker on
the screws from the top.
1.
2.
3.
2a
2b
1
1/4"
BRAND
AF6 TM ALLIGATOR ®
Solid-Wall Anchors
Drill 1/4" diameter hole — minimum hole
depth
1 1 /
2
". Insert anchor and tap flush.
Place item over anchor. Insert screw and
tighten flush. For best results use screw
gun for installation in solid walls.
In walls of minimum thickness 3/8",
screw opens anchor and locks securely.
Patented under U.S. Patent Nos. 4,752,170 and
5,161,296; and foreign counterparts thereof.
Other patents pending. TOGGLER and typeface,
and ALLIGATOR are worldwide registered
trademarks of Mechanical Plastics Corp.
© 2002 MPC
®
