Installing the cap over the universal connector – Kenwood TK-290/390 User Manual

Page 7

Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

Screw the antenna into the connector
on the top of the transceiver by holding
the antenna at its base and turning it

clockwise until secure.

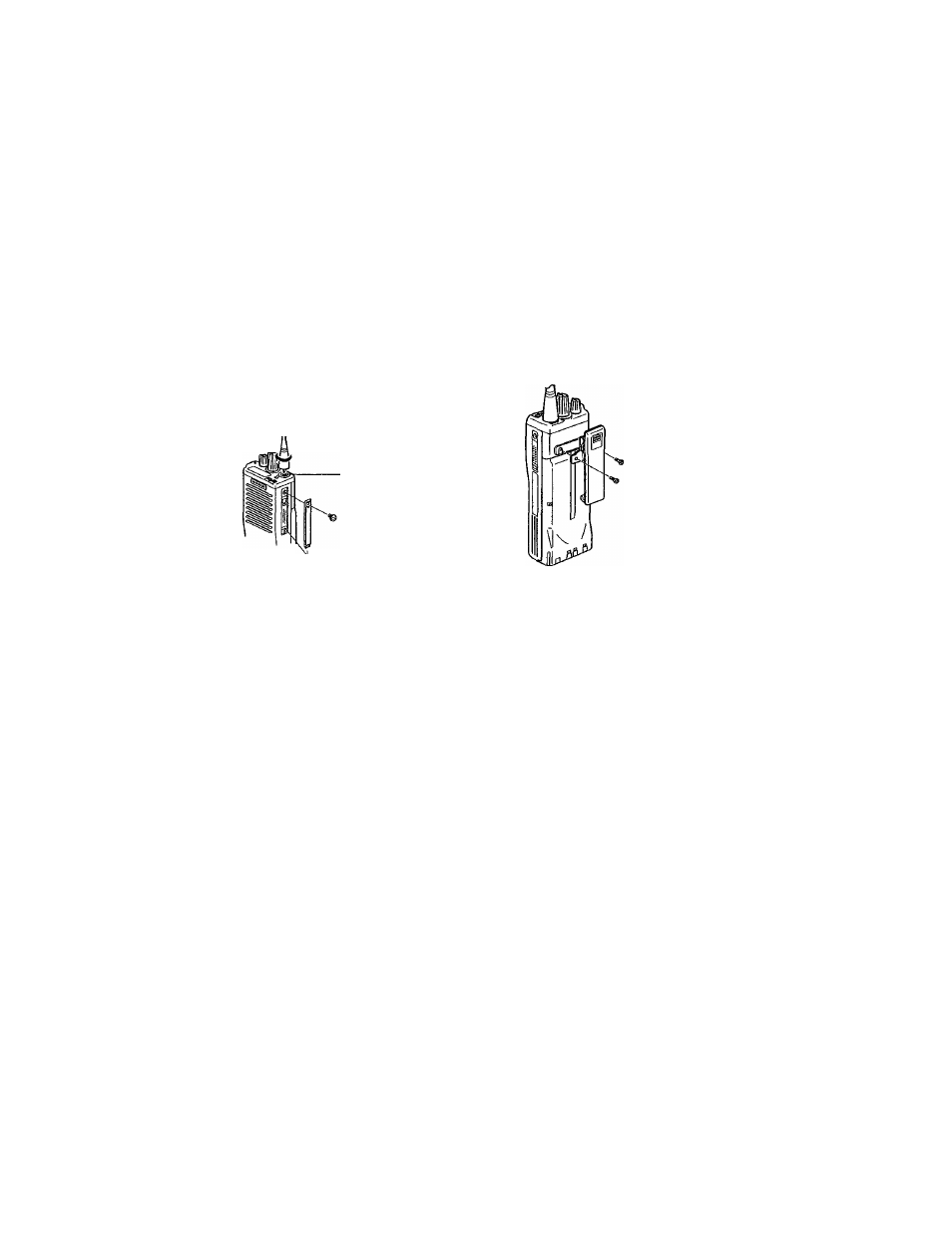

INSTALLING THE CAP OVER THE
UNIVERSAL CONNECTOR

When a speaker/microphone is not
being used, install the cap over the

universal connector using the supplied
accessory screw ( 4 x 6 mm).

INSTALLING THE ANTENNA (OPTIONAL)

The antenna
connector of the
transceiver is an
SMA male type
connector.

Note: To keep the transceiver water resistant, you
must cover the universal connector with the cap or
the speaker/microphone connector.

If necessary, attach the belt hook using

the two binding screws ( 3 x 6 mm)
which are supplied in the screw set.

Note; It the belt hook Is not Installed, Its mounting
location may get hot during continuous
transmission or when left sitting in a hot
environment.

INSTALLING THE BELT HOOK
