EXTERNAL SPEAKER

KENWOOD

r\co o

KENWOOD CORPORATION

INSTRUCTION MANUAL

©PRINTED IN JAPAN B50-8327-08(M)(T)

90/12 1110 9 8 7 6 5 4 3 2 1 89/12 1110 9 8 7 6

Thank you for purchasing the new External Speaker.

■ BEFORE OPERATION

IMPORTANT:----------------------------------------------

1. Please read this instruction manual carefully before

placing your Speaker in service.

2. SAVE THIS INSTRUCTION MANUAL.

ISPECIFICATIONS

Speaker size

Maximum input power

Impedance

Frequency responce

Plug

Dimension ( W x H x D )

WëîghT

Note: —

50x 90 mm

5 W

4

Q

300 to 9,000 Hz

1 1 4 x 6 6 x 5 5 mm

4-1/2"

X

2-19/32"

X

2-5/32"

‘35tTgl077TTüT '

Ratings are subject to change without notice due

to advancement in technology.

lACCESSORIES

Please unpack your new Speaker carefully, and

confirm that the accessories listed below are includ­

ed in the box.

Self-tapping screw............ N44-4012-45....2

ea.

Flat washer........................N15-1040-45....2

ea.

Instruction Manual............B50-8327-XX . . . 1

sheet

IMAINTENANCE

Cleaning

1. Do not use any type of abrasive pad, thinner,

benzine or any substances which may damage

the unit.

2. Wipe the front pannel and other exterior surfaces

of the unit with a soft dry cloth or a soft cloth

lightly moistened with water.

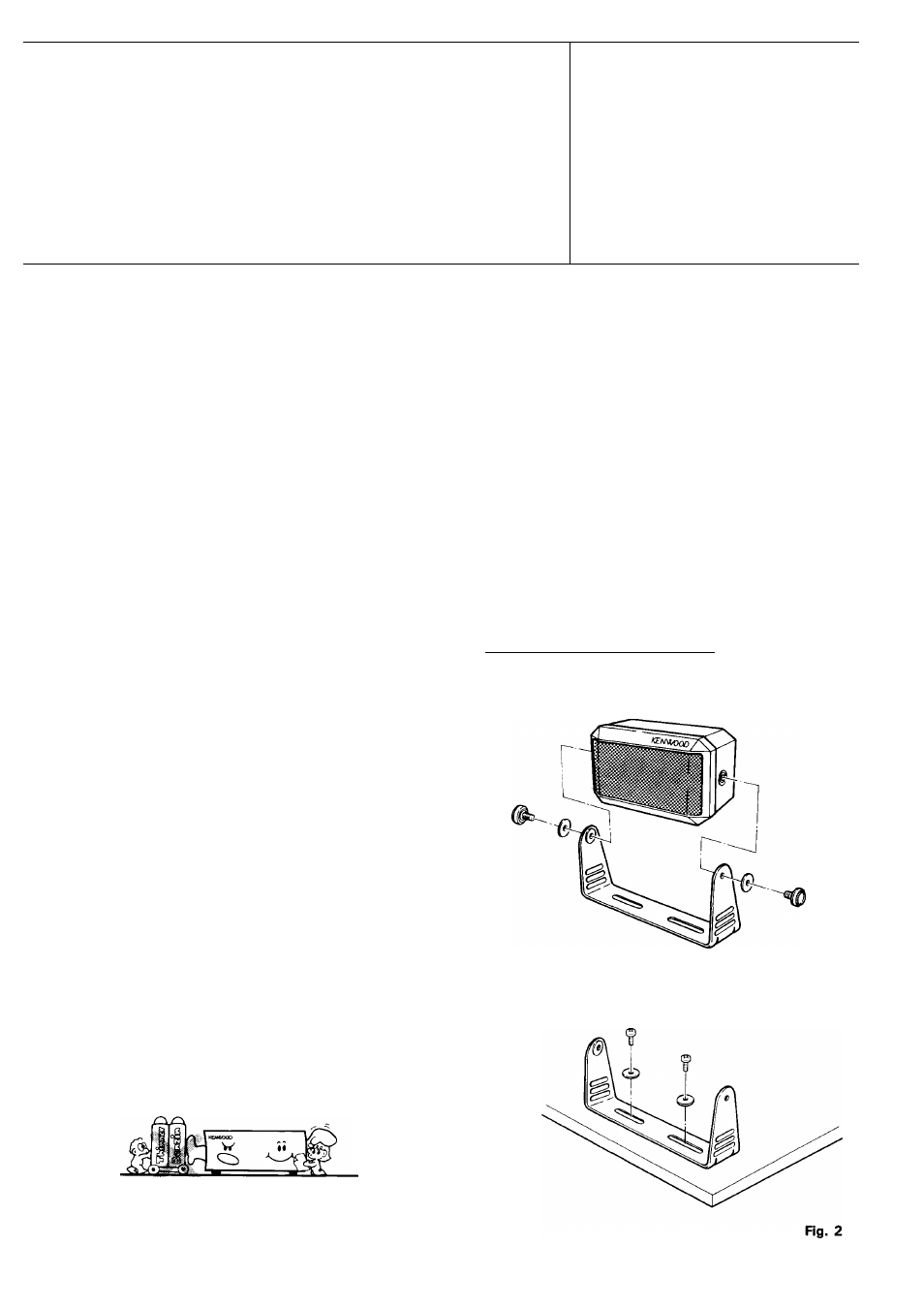

■INSTALLATION INSTRUCTIONS

1. Select the desired mounting position.

2. Loosen the two mounting screws and remove

the bracket from the speaker (Fig. 1).

3. Use the bracket as a template to locate the holes

and mark the position of the two mounting

screws.

4. Drill the two holes that were just marked. Use

a 1 / 8 " drill for self-tapping screws.

5. Secure the bracket with two self-tapping screws

(Fig. 2).

6. Attach the speaker to the bracket, temporarily.

7. The angle of the bracket may be adjusted to any

of several possible angles. Select the desired

angle.

8. Hold the speaker in position and tighten thei

bracket screws.

Fig. 1

06-30-505-00
