Installing the FOMIM into the MMAC
FOMIM User’s Guide 2-3
2.3 INSTALLING THE FOMIM INTO THE MMAC
You can easily install the FOMIM into a Multi Media Access Center with
a Flexible Network Bus (MMAC-FNB). Install the FOMIM into the
MMAC as follows:
1. Power down the MMAC hub.
2. Remove any chassis safety bars present on the front of the MMAC
hub.
3. Slide the FOMIM (Figure 2-1) into the card cage of the MMAC hub.
Be sure that the card is properly aligned in the top and bottom slots of
the card cage.
4. Firmly press the module connections into the backplane. Do not force
the module into place or use the knurled knobs to draw the module into
place.
5. Screw in the knurled knobs to secure the module to the MMAC.
6. Reinstall any chassis safety bars that were present on the MMAC.

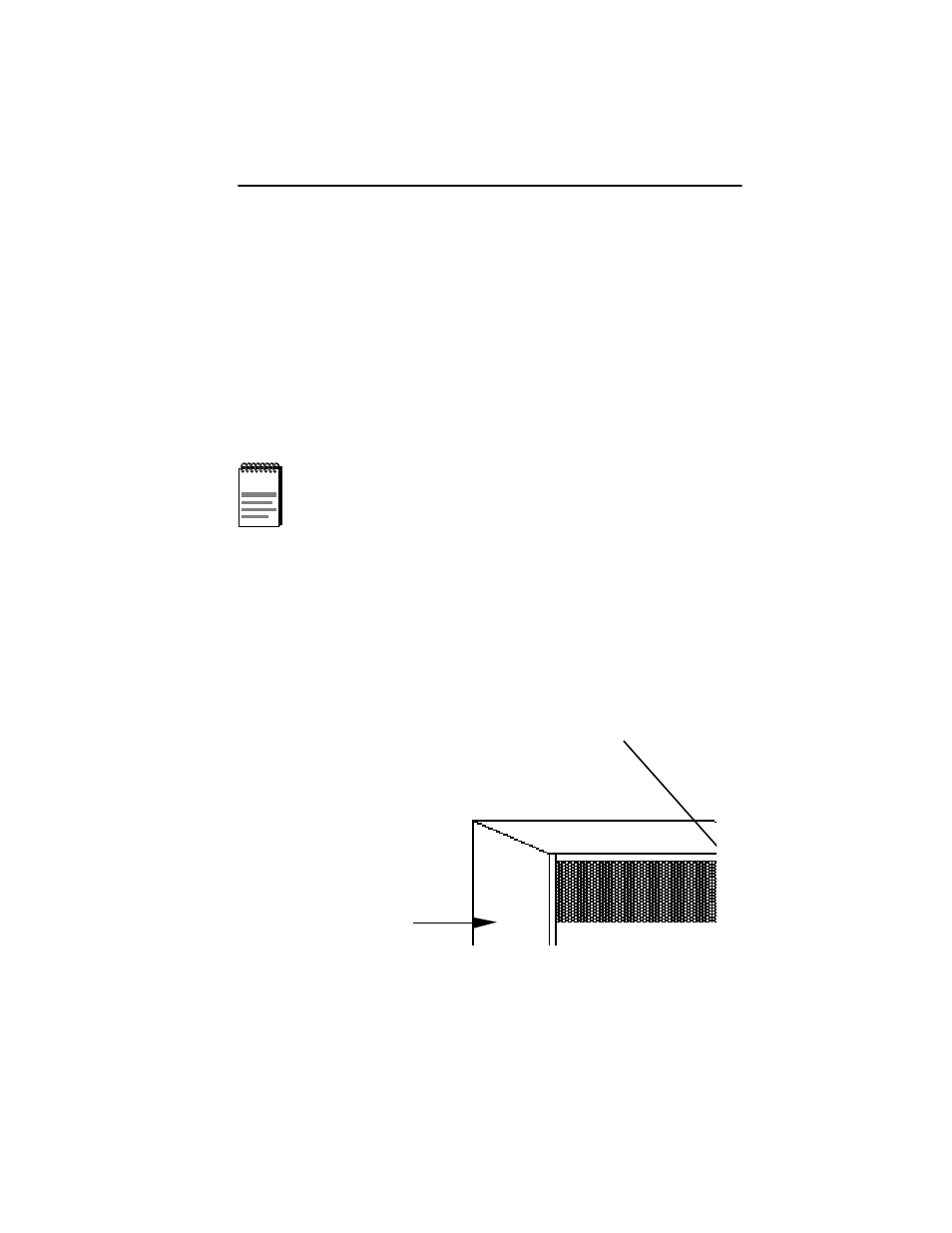

Figure 2-1 Installing the FOMIM
NOTE
Slot 1 of the MMAC hub is reserved for a management module
(e.g., IRM3) only.
FOMIM
MMAC-8FNB
