8 Live! Drive IR Quick Start SB0010
2. Connect the cables to the Live! Drive IR as shown in Figure 4.
3. Slide the Live! Drive IR into the vacant 5¼" drive bay, and then secure its sides to the casing
with the screws provided.

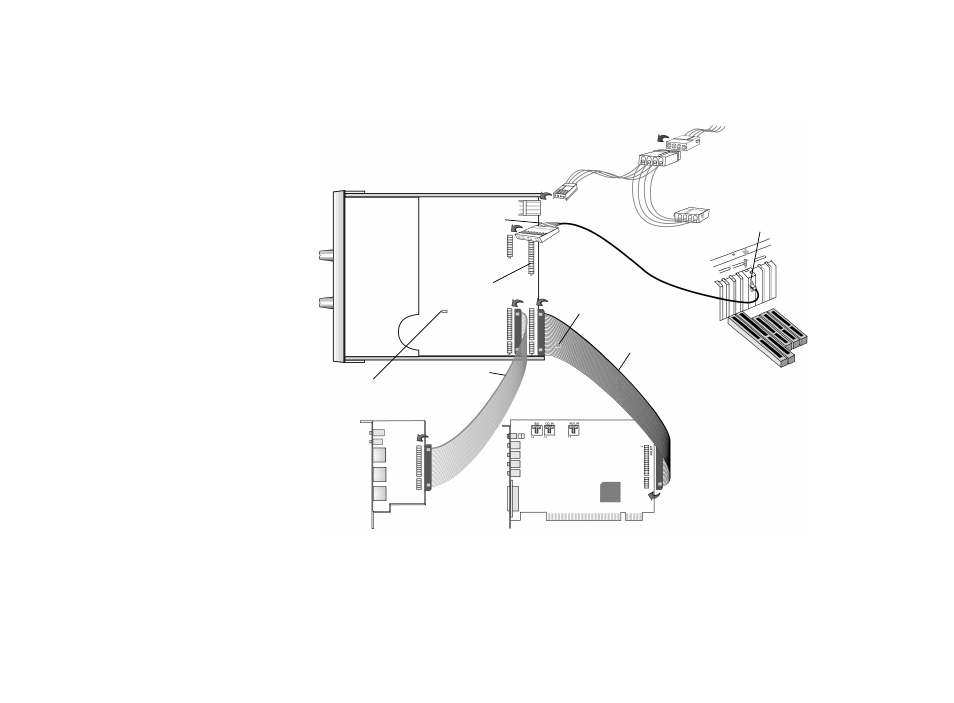

Figure 4: Connecting cables to the Live! Drive IR.
Dark grey
flat cable
Light grey
flat cable
Digital
DIN cable
Power splitter cable
Red-colored wire
Orange-colored wire
To system
power supply unit
Digital DIN
metal bracket
Live! Drive IR
Connector for
future upgrades
(Optical)
Digital I/O card
Sound Blaster Live! card
Black circle on the
underside of the cable
Red-colored wire
J1
J3
J2
Jumper for microphone
type selection
JP1
