Undercounter Ovens
FL-2291
Rev. 2 (6/05) Page
8 of 10
REPLACEMENT PARTS:
Include all information on nameplate when ordering parts.

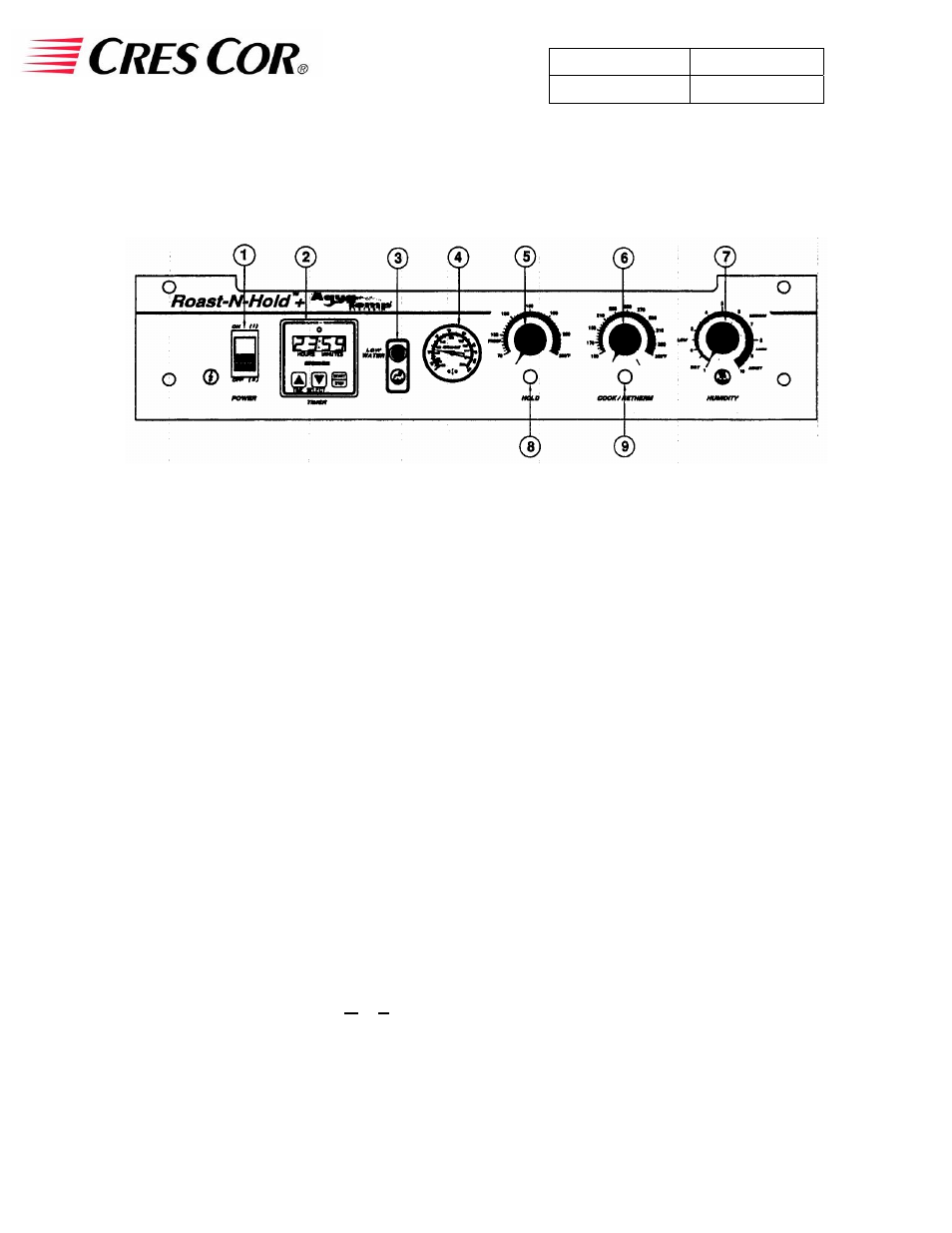

Figure 3: Control Panel
Hot Unit Replacement Parts
ITEM DESCRIPTION CMP Part No. ITEM DESCRIPTION CMP Part No.
1. Switch (On/Off) 0808-113 17. Hi-Limit (Switch) 0848-079
2. Timer, Digital 0849-088 18. Fan Switch 0848-034
3. Light, Low Water 0766-094 19. Relay 0857-130
4. Thermometer and Sensor 5238-031 20. Transformer 0769-159
5, 6, 7. Knob Thermostat 0595-061 21. Relay 0857-100
5, 6. Control Board 0848-069 22. Sensor – Thermostat 0848-058-K1
7. Thermostat 0848-008-1ACK 23. Sensor Bushing 0818-066
8. Lights, Yellow 0766-094 24. Receptacle (6 pin) 0810-154-02
9. Lights, Green 0766-098 25. Power Cord 0810-039-06
12. Vent Fan 0769-165 26. Heater Kit 0811-022
13. Fan Guard 0769-167 27. Strain Relief 0818-057
14. Blower Kit 0769-180-K NS Float Switch 0857-122
15. Terminal Block, Front 0852-096 NS Water Pan Kit 0756-033
16. Terminal Block, Rear 0852-093 NS Heater 0811-271
NS = Not Shown (located in cabinet bottom)
