MAINTENANCE INSTRUCTIONS
TROUBLE-SHOOTING GUIDE, continued
HOW TO ADJUST THE DOOR LATCH:
1. For vertical adjustment:
(up and down movement)
a. Loosen (2) screws located in
magnetic strike.
b. Move strike up or down for
alignment to magnet on latch.
c. Tighten screws to secure
2. For horizontal adjustment:
(greater or lesser magnetic draw)
a. Loosen (4) screws in door latch.
b. Move latch forward or backward
to adjust magnetism.
c. Tighten screws to secure.
HOT UNIT REMOVAL:
1. Disconnect power cord from wall outlet.
2. Remove screws around top cover.
3. Disconnect the yellow cord between top and
bottom, in the back of the cabinet (see Figure 2).
4. Lift off Hot Unit.

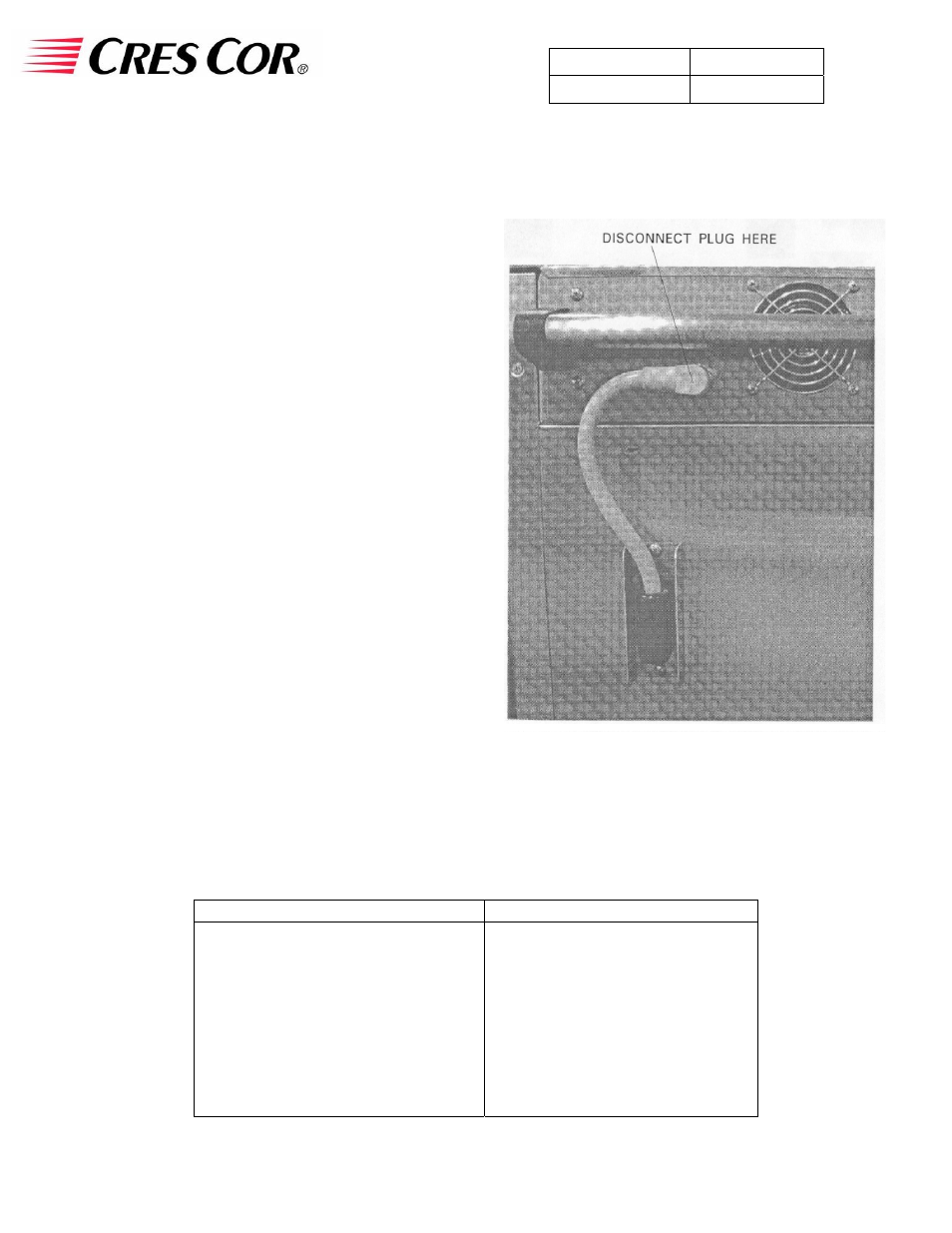

FIGURE 2
Hot Unit Removal
REPLACEMENT PARTS:
Include all information on nameplate when ordering parts.
Cabinet Replacement Parts
DESCRIPTION PART NO.
Hot Unit, 120V, 1 Ph HU675049
Door Latch Kit 1006-120-01
Latch Strike Kit 1006-120-02
Door Hinge 0519-074
Door Assembly 1221-545
Door Gasket 0861-250
Angles or Racks 0621-281-SS
Casters 0569-310
Casters w/brake
0569-310B
