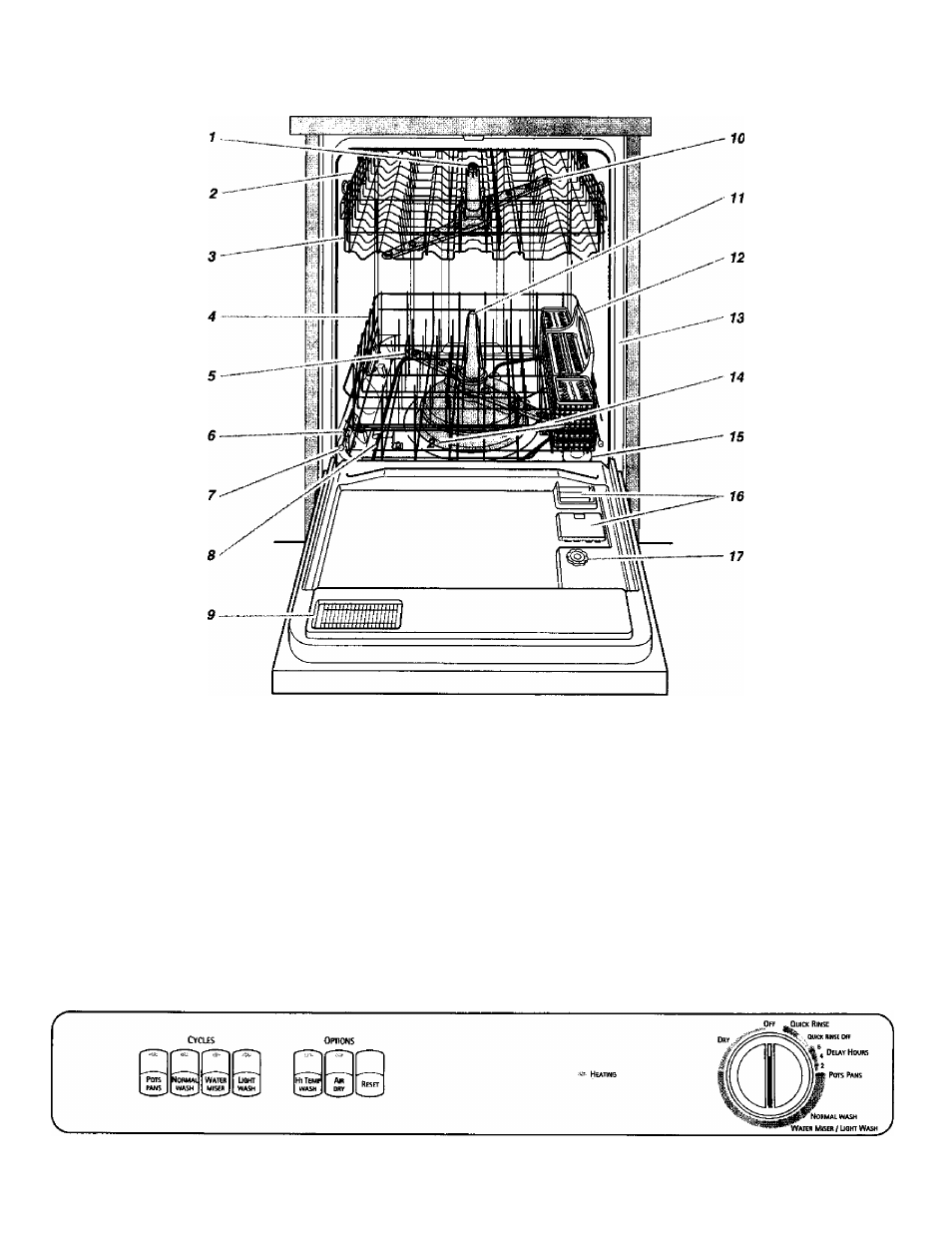

PARTS AND FEATURES
1. Upper level wash
7. Rack bumper
13.
Model and serial number label
2.
3-position adjuster
8. Heating element
14.
ULTRA WASH* module
3.
Top rack
9. Vent
15.
Overfill protection float
4.
Bottom rack
10. Top spray arm
16.
Detergent dispenser
S. Lower spray arm
11. Spray tower
17.
Rinse aid dispenser
6.
Water inlet opening [in tub wall]
12. SII ventare basket
Control Panel
