FRONT LOVOW vsnfc:R

PROCEDI RE FOR REPLNCTNG THE BOO I coiumued

! 4 )

)

Replace ihe hoot e\taision back onto the

duct and pull it up ovei the ndge on the

duct neat the top ot'the opening

Reinstall the clamp in such a way that the

clamp sits between the ridges on the

extrusion and abo\'e the ndge on the duct

Snap the clamp closed with the copper

tubing tool that \’ou used preuously

Before attaching the new boot to the front

panel, clean the suiTace of the front panel

with alcohol or household cleaner Also

clean the flat surface of the new boot that
will be contacting the front panel This

step IS needed to remove the mold release material used in the manufactunng process and will allow

the adhesive to stick

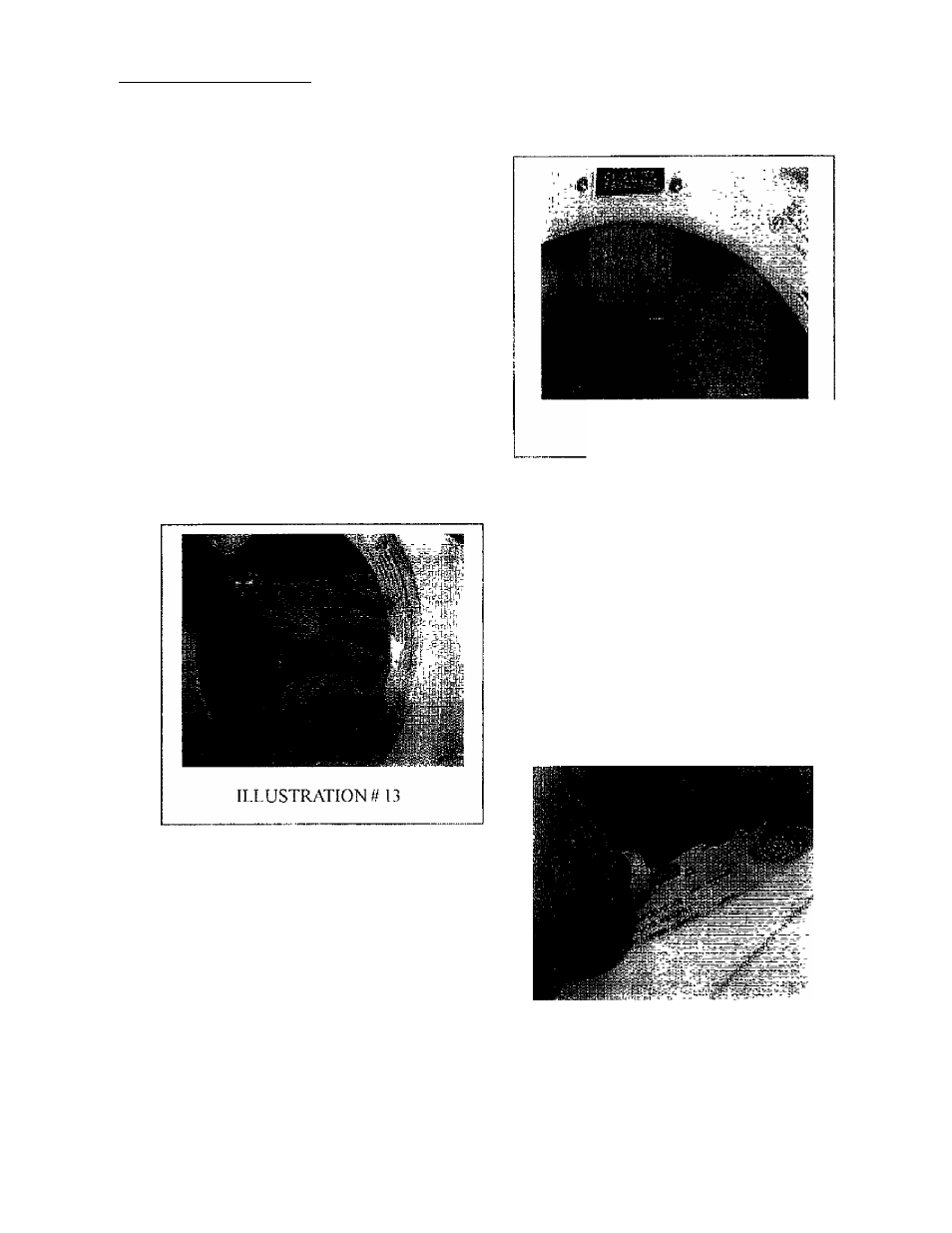

16) Remount the boot onto the front panel as

shown in figure # 1 3 , making sure that
the boot is not wTinkled Iflarge wrinkles

exist, they may pool water in the boot and
dribble onto the floor w hen the door is

opened

[fthis IS the case, pull it loose from the front

pane! and remount it slightly more clockwise

or counter clockwise as needed

ILLUSTRATION# 12

Using the adhesive supplied in the kit,

sparingly apply dots of glue under the edge

of the boot as shown in # 14

Spot glue at the 1 2 o’clock, 1. 2. 3, 4, 5 6,

7, 8 and 9 o'clock positions around the
opening

Caution the consumer to wait a couple of

hours before using the washer to allow the
adhesive enough t i m e t o d r y

ILLUSTRATION# 14
