Locations of the

Gas

Surface Burners

The SIMMER burner (5000 BTU) is best used for simmering delicate sauces,
etc. This burner is located at the right rear burner position on the cooktop.

The STANDARD burners (7000 BTU or 9500 BTU) are used for most surface
cooking needs. These burners are located at the left front and left rear
positions on the cooktop (and there is one more standard burner located at the
center rear position on the 36" cooktop models).

The POWER burner (17200 BTU) is best used forbringing large
quantities of liquid rapidly up to temperature or when preparing larger
quantities of food. This burner is located at the right front position on
the cooktop.

The BRIDGE burner is best suited when using rectangular or long
shaped cookware. The left rear (7000 BTU) and left middle (7000 BTU)
are combined and controlled by the same control knob. The left front
burner (7000 BTU) may also be added for a total of 3 burners
(21000 BTU).

Before Setting Surface Controls

Assembly of the Surface Burner Heads, Burner Caps and Burner Grates

It is very important to make sure that all of the
Surface Burner Heads, Surface Burner Caps and
Surface Burner Grates are installed correctly and at

the correct locations.

1. Be sure to follow the Installation Instructions

when installing your new cooktop.

2. Remove all packing tape from cooktop. Remove

Burner Caps and Burner Heads (See Figure 1).

3. Discard all packing material located under all

Burner Heads (if applicable).

4. To replace Burner Heads & Caps, match the

letters located under center of Burner Caps with

the letters located inside Burner Head (only 5K,

9.5K and 17.2K burners are marked with letters -
See Figure 1). Place all Burner Heads & Caps on

the cooktop (See Figure 1) while carefully
aligning the Electrodes into slots or holes of the

Burner Heads (Figure 3). Note: The Burner Heads
should sit flat on Cooktop Burner Skirts.

Bridge Burner Head

„ , .

Bridge

: :

. :

Bumer

■—End

Cap

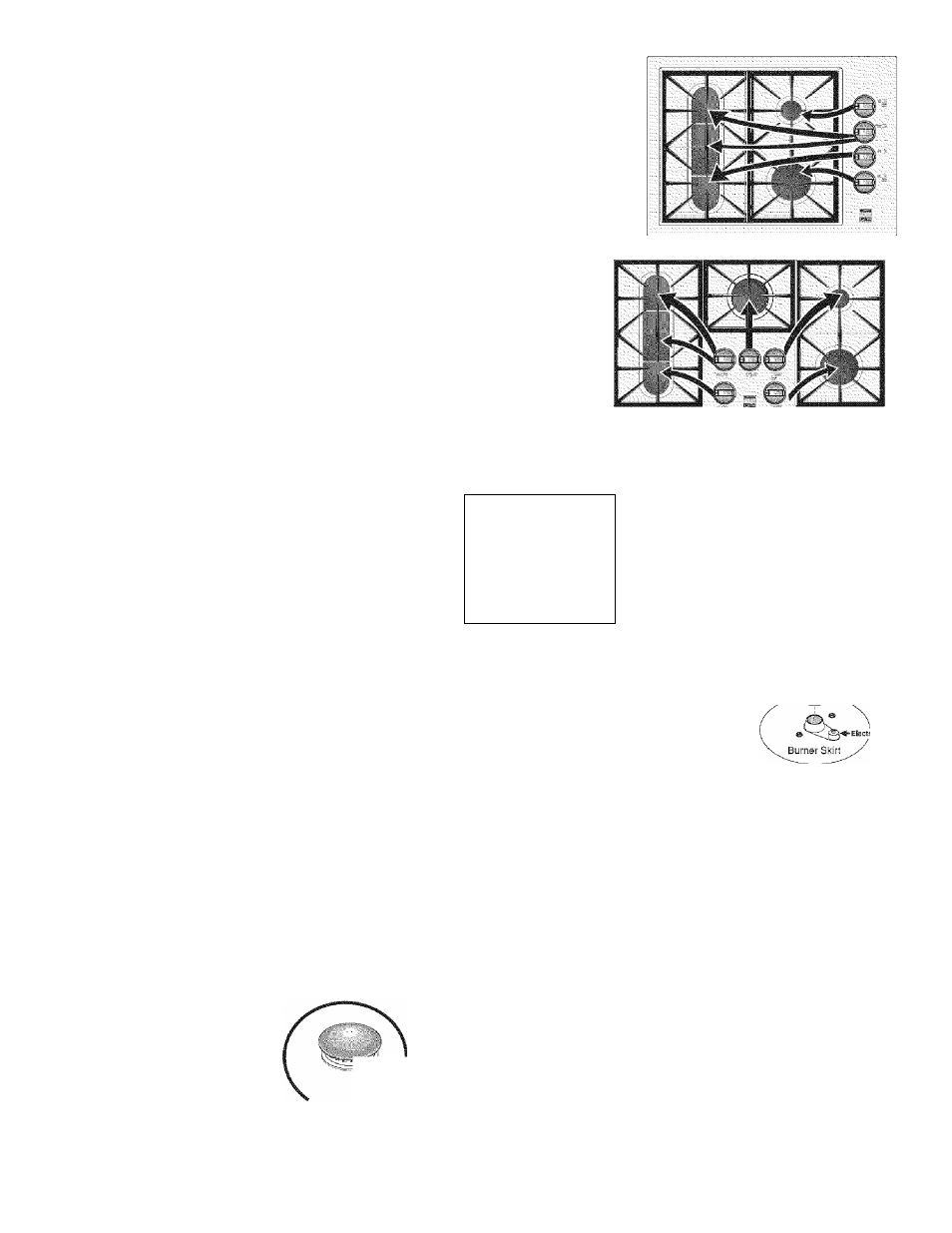

30” Cooktop Layout

^ : 17.2K

i ... 1 •

©■

Example of Burner Assembly

36” Cooktop Layout

i®)

:^.5K

17.2K

Match letter located
under center ot
Burner Cap ;
with letter ■
located

Inside ■
Burner
Head

Burner/

Head

Burner

Cap

Bridge
Burner

Center
Cap

Bridge
Burner

'End

Cap

Figure 1

5. Replace Bridge Burner Caps. These include one Bridge Burner Center Cap (rectangular

shaped) and the two Bridge Burner End Caps (The Bridge Burner End Caps will fit either
the front or rear Bridge Burner Head locations). Make sure that the tabs located under the
Bridge Burner Caps fall into the slots located in the Bridge Burner Head (See arrows in
Figure 2) and that all the Bridge Burner Caps lie flat and evenly on the Bridge Burner
Head.

6. Unpack Burner Grates. NOTE: Do not force End Burner Grates down on cooktop. Posi

tion Burner Grates on cooktop and check that all the Burner Grate legs lie on the glass
surface.

7. Place Center Burner Grate between the end Burner Grates

(36" models only).

REMEMBER — DO NOT ALLOW SPILLS, FOOD,

p. . CLEANING AGENTS OR ANY OTHER MATERIAL TO

must be located ^NTER THE GAS ORIFICE OPENING. Always keep the

properly in slot of each Burner Caps and Burner Heads in place whenever the

Burner Head surface burners are in use.

Figure 2

Figure 3
