MODEL: FPBM189KF/FGBM185KF/FGBM185KW/FGBM185KB/FGBM187KW/FGBM187KB
120VAC
60Hz

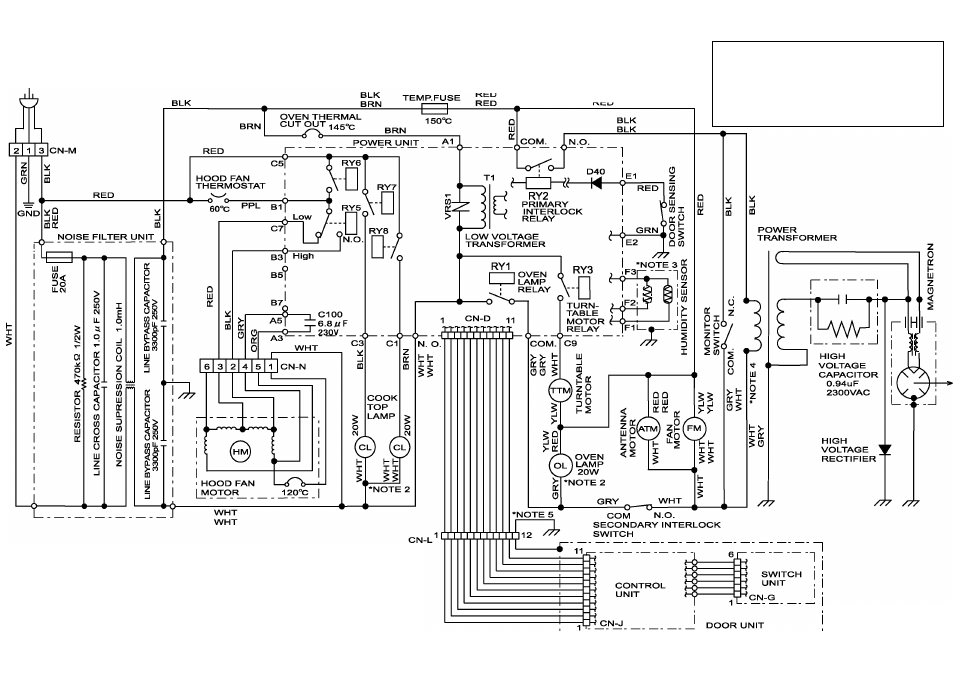

SCHEMATIC DIAGRAM (DOOR CLOSED COOK OFF CONDITION)
MAGNETRON
LEAD WIRE COLOR CODE
BLK
BLACK
GRY
GRAY GRN : GREEN
BRN
BROWN
WHT
WHITE
ORG
: ORANGE
BLU
BLUE
PNK
PINK
PPL :
PURPLE
RED :
RED
YLW
YELLOW
NOTES:
1. Circuits subject to change without notice
The neutrai wire(White or Gray wire) must be connected to the prescribed
tab terminal of the lamp socket.
Only certain models use the humidity sensor.
The neutral wire(White/Gray wire) must be connected to the winding end tab
terminal of the power transformer primary winding.
OnlyFPBM189KF FGBM185KF has the earth wire.
3.
4.
P/N 316495066
TMAPCA790WRRZ
