REVERB INSERT CLEAN/SOLO/
RHYTHM
EXTENSION
SPEAKER
FOOTSWITCH
120 VAC: 250V T3A
22 22 23 23 24 24 25 25 26 26

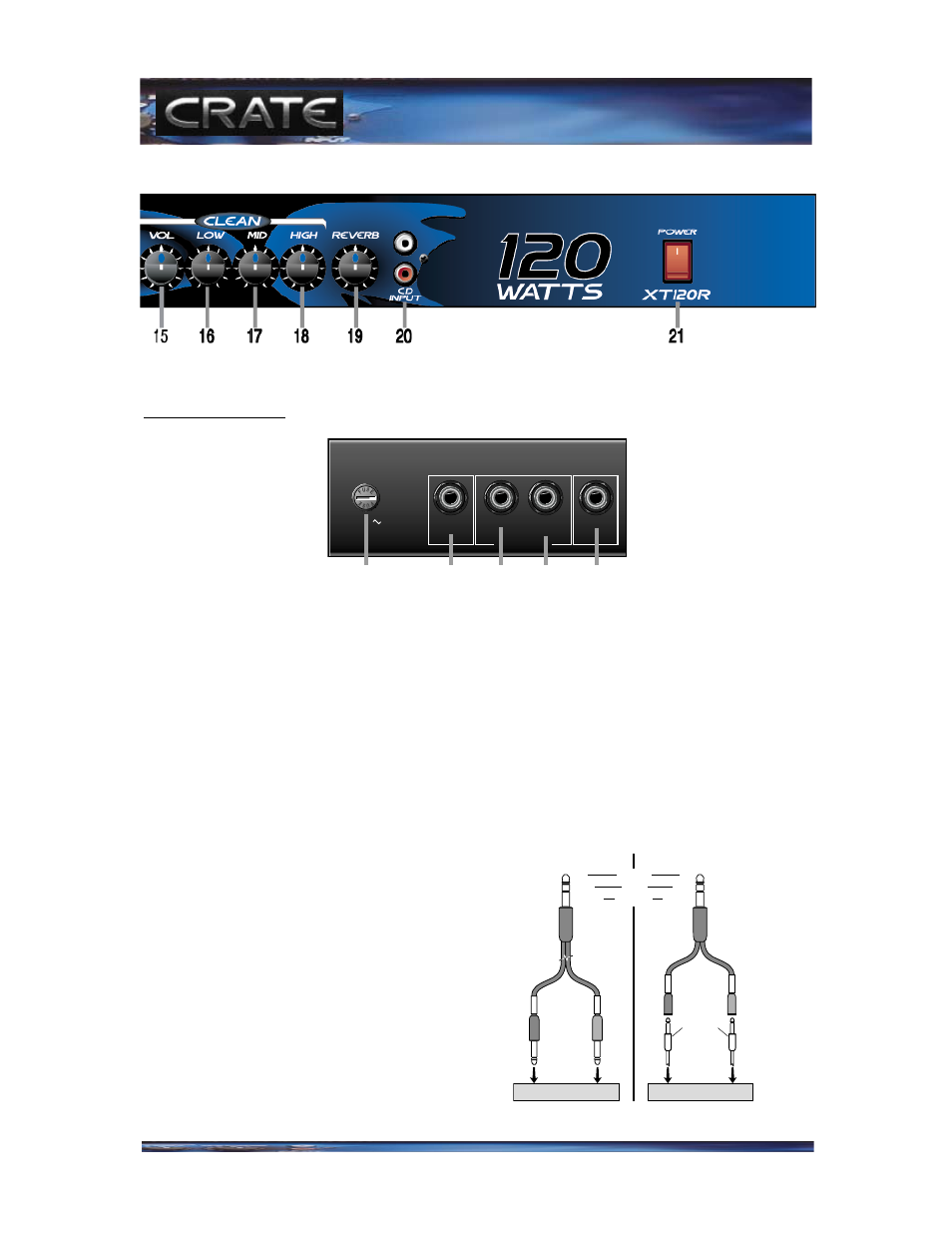

The Rear Panel:
22: FUSE: The fuse protects the amplifier from damages caused by a faulty AC power source and/or
other problems. If the fuse opens, replace it ONLY with the same size and type. If fuses continue to fail,
check the AC source – if the source is okay, contact your Crate dealer for service information.
23: EXTENSION SPEAKER: Use this jack to connect the amplifier to an external speaker cabinet. This
jack is wired in series with the internal speakers which remain active when an extension speaker is con-
nected.
24: REVERB FOOTSWITCH: Use this jack to connect the 1/4” mono plug on the footswitch cable to the
three-button footswitch (supplied). This allows you to remotely turn the reverb on and off.
25: CLEAN/SOLO/RHYTHM FOOTSWITCH: Use this jack to connect the 1/4” stereo plug on the
footswitch cable to the three-button footswitch (supplied). This allows you to remotely switch between
the Clean and Distortion channels and between the Solo and Rhythm channels.
26: INSERT: Use this jack to connect an external
effects device to the amplifier. Use Crate’s STP201,
STP202, or STP203 stereo-to-mono Y-cord or an
adapter such as Crate’s YPP117 and two 1/4” mono
signal cables to connect to the effect as shown to the
immediate right.
27: AC LINE CORD (not shown): This grounded
power cord is to be plugged into a grounded power out-
let, wired to current electrical codes and compatible with
the voltage, power, and frequency requirements stated
on the rear panel. Do not attempt to defeat the safety
ground connection.
TIP
RING
SLEEVE RETURN
SEND
GROUND
Stereo-to-mono Y-cord:
to Insert
jack
to Insert
jack
(STP201, 3'
STP202, 6'
STP203, 9')
(YPP117)
(1/4"-TO-1/4"
MONO CABLES)
to
effect
"OUT"
jack
to
effect
"IN"
jack
TIP
RING
SLEEVE
Y-adapter and 2 cables:
RING
RING TIP
TIP
to
effect
"OUT"
jack
to
effect
"IN"
jack
External Effect External Effect
5
XT120R
Three Channel Guitar Amplifier
