4G Systems XSBoxR4v User Manual

Xs box

Box

R4v

Quick Start Guide

Initial setup

Setting up a network

XSBoxR4v Location

Locate the XSBoxR4v close to a window, where the reception is

usually best.

Information on how to setup a network can be found in the manual on page 21

on the CD or in the help files of your Operating Systems.

Initial setup with a PC

At first login on the administrative interface, you have to use the username

„admin“.

This cannot be changed. Then select and type a password and click

OK.

The wizard

Step 1, PIN

At first start up of the XSBoxR4v you have to type in the PIN code of your

SIM card.

The PIN code is part of the contract paperwork of the SIM card.

Note:

The PIN will be stored in the XSBoxR4v for further usage.

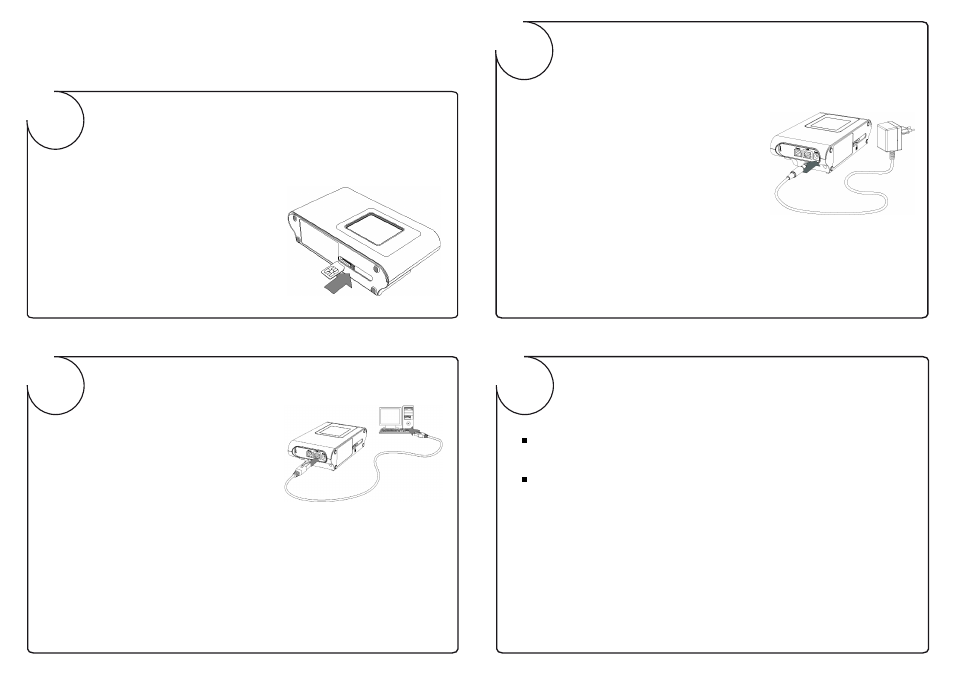

Insert SIM-Card

Push the SIM card fully into the SIM card

slot on the bottom of the device, until it clicks

home.

Note that the slash cut of the SIM faces the

release latch.

Initial connection to PC

Connect one end of the white ethernet cable

to the XSBoxR4v and the other end to the

network card of your computer.

Note:

This can be done when the devices are running.

Start a browser on the connected computer and type in the

address field:

http://192.168.0.1 or click the login link on the CD.

Connection of the power supply

Push the small round connector of the power

supply into the matching jack of the XSBoxR4v.

Never use any other power supplies or other

power sources to run the XSBoxR4v.

4G Systems disclaims all liability if other power

supplies where used.

Initialisation takes 60 - 90 seconds.

XSBoxR4v to PC/Laptop

If you set the connection to „automatic“, the XSBoxR4v will connect to the

internet automatically when it is started next time.

Separate after idle time

This timer disconnects the internet connection

when it has not been used for the time set.

Name of the WLAN-network (SSID)

The SSID is the name of your network of the XSBoxR4v.

Computer in the area will see this name as an access point.

Activate Online-Connection

SSID-broadcast

By default the XSBoxR4v broadcasts its SSID.

This way it can be seen by computers in the area in order to connect to it.

Disabling the broadcast function makes the SSID invisible and any

computer trying to connect, has to have the SSID entered manually.

Security level

The security level setting prevents the system of the majority of

attacks, when set to „normal“.

For further information about the setup of the firewall, see

„security settings“ on page 33 of your manual.

HSDPA/UMTS/EDGE/GPRS access point (APN)

Further configuration

Your XSBoxR4v is configured now successfully.

For questions contact us : [email protected]

or Tel.: +49 (0)9005 2222 13

Administration interface >> Mobile broadband >> Access point

Enter the APN in

HSDPA/UMTS/EDGE/GPRS access point

(APN), you have received from your provider.

Note:

Encrypting your WLAN connection is very important as misuse and high costs

can occur when the network is infiltrated.

Only if you cannot open any web pages but can ping external IP addres-

ses you have to type in the IP address of your providers DNS.

Otherwise leave it empty.

Enter the username, if you have received one from your provider.

Otherwise leave it empty.

Enter the password, if you have received one from your provider.

Otherwise leave it empty.

PPP username

PPP password

Nameserver

PartNo. 4602.000017.01

The wizard

Step 2, activation

The wizard

Step 3, WLAN

The wizard

Step 4, firewall
