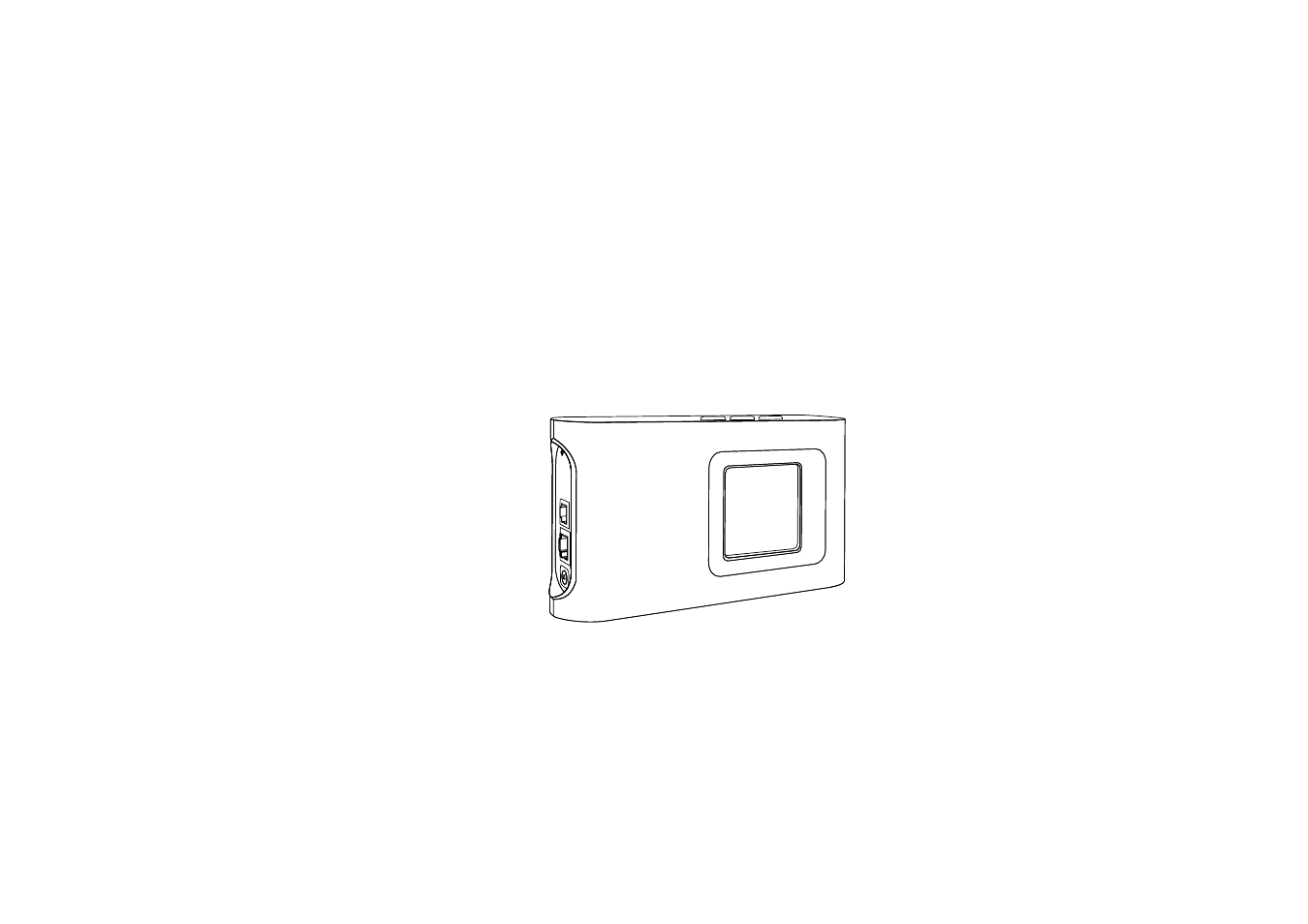

4G Systems XSBox R4v User Manual
Xs box
Table of contents
Document Outline
- Welcome
- Safety instructions
- Table of Contents
- Operating elements and connectors
- LCD display
- 1. Bar indicators of network reception quality U or G The more bars shown, the better the reception. Boxes with black background show activity.
- 2. current time - shown in 24 hour format
- 3. current date in format: DD.MM.YYYY
- 4. Status indicator for local network connection to computer: WLAN or LAN
- 5. Status indicator for network availability and kind: G or U (G = GPRS/EDGE, U = UMTS/HSDPA)
- 6. Indication of SMS receipt
- Keys
- Reset key
- LAN connection
- Power supply
- LCD display
- Instructions for use
- Initial setup
- Initial setup only with telephone
- Activating SIM card
- 1. Pick up the telephone receiver.
- 2. Please enter PIN is shown on the display. And you can hear a peep tone in addition to the dial tone.
- 3. Press the # key, enter your PIN and confirm with the # key.
- 4. Should the PIN be correct, you will hear a confirmation tone and the time, date and network reception bars will appear on the...
- Activating SIM card
- Initial setup with PC and telephone
- Network setup
- WLAN connection setup
- 1. Configure WLAN connection
- 2. Establish WLAN connection
- 3. Deactivate proxy server
- 4. Configure encryption for the XSBoxR4v
- 5. Configure encryption for your PC/laptop
- Step 1 - Configure WLAN connection
- 1. Click with the right-hand mouse button on wireless network connection and select the entry properties in the context menu.
- 2. The dialogue Wireless network connection properties appears.
- 3. Ensure that the control box Internet protocol (TCP/IP) is activated in the register General.
- 4. Highlight the internet protocol (TCP/IP), and click on the button Properties. The dialogue Internet Protocol properties (TCP/IP) will appear.
- 5. Activate the option field get IP address automatically in the General register (Standard setting)
- 6. and click on the button OK.
- 7. Click in the dialogue Wireless network connection properties on the button Close.
- 8. you will then be requested to reboot the computer again if necessary.
- Step 2 - Establish WLAN connection
- 1. Click with the right-hand mouse button on wireless network connection and select the entry Show available wireless networks in the context menu.
- 2. The dialogue Wireless network connection appears.
- 3. Highlight the wireless network XSBoxR4v and click on the button connect.
- 4. It will take approximately 10 seconds until the connection between your PC/laptop and the XSBoxR4v is established.
- Step 3 - Deactivate proxy server
- Step 4 - Configure encryption for the XSBoxR4v
- 1. Select the entry WPA1+2 from the selection list encryption mechanism.
- 2. Activate the option field Pass phrase in the area WPA settings.
- 3. Enter a user-defined string in the field Key or select one of the four generated keys. The string serves to dynamically create a WPA code (eg. mustermann).
- 4. Click on the button OK. The encryption is now activated for the XSBoxR4v, however not for your computer. Therefore the WLAN connection is disrupted between the devices. Your browser could show the message The document contains no data.
- Step 5 - Configure encryption for your computer
- 1. With the right-hand mouse button click on wireless network connections and select the entry Properties in the context menu.
- 2. The dialogue Wireless network connection properties appears.
- 3. Click on the register wireless networks.
- 4. Highlight the entry XSBoxR4v in the area preferred networks and click on the button Properties.
- 5. The dialogue XSBoxR4v properties appears.
- 6. Carry out the following settings in this dialogue:
- 7. Click on the button OK. Click on the button close in the wireless network connection properties dialogue. Encryption for the XSBoxR4v and your computer is now activated. The WLAN connection between the devices will now be automatically established.
- LAN connection setup
- 1. Connect network cable
- 2. Configure LAN connection
- 3. Deactivate proxy server
- Step 1 - Connect network cable
- Step 2 - Configure LAN connection
- 1. With the right-hand mouse button click on LAN connection and select the entry Properties in the context menu.
- 2. The dialogue LAN connection properties appears.
- 3. Ensure the control box Internet protocol (TCP/IP) is activated on the register General.
- 4. Highlight Internet protocol (TCP/IP) and click on the button Properties.
- 5. The dialogue Internet protocol properties (TCP/IP) appears.
- 6. Activate the option field get IP address automatically in the General register (Standard setting) and click on the button OK.
- 7. Click in the dialogue LAN connection properties and click on the button Close.
- 8. You will then be requested to reboot the computer again if necessary.
- Step 3 - Deactivate proxy server
- 1. Click on the button properties in the area LAN settings.
- 2. The dialogue Properties for local network (LAN) appears.
- 3. Deactivate the control box: Use Proxy server for LAN
- 4. Activate the control box: Automatic settings search
- 5. In order to save the configuration, click on the button OK.
- 6. Close the dialogue Internet options by clicking on the button OK.
- Administration
- Administration interface log-in
- 1. Start your browser.
- 2. Enter http://192.168.0.1 into your browser's address line and confirm by pressing ENTER.
- 3. You will be requested to change the password the first time you log in to the administration interface. The user name is admin and can not be changed. Enter your new password in the field marked New password and confirm new password and click OK.
- 4. From now on you will log in with the user name admin and your new password.
- Administration interface log-off
- Disconnecting from the internet
- Change password
- Change the SIM card PIN
- Unblock SIM card
- Automatic disconnection
- Access point Configuration (APN)
- Time and date setup
- 1. Enter the appropriate data in the fields marked Time and Date.
- 2. Click on the button Manual time/date.
- 1. Enter the desired NTP server in the field marked Primary NTP Server and optionally in the field marked Secondary NTP Server.
- 2. Click on the button change configuration.
- 3. Click on the button Time query.
- Rebooting XSBoxR4v
- Resetting factory settings
- Perform a self-test
- Firmware Update
- Exchange SIM card
- 1. Unplug the power supply from the wall socket and from the device.
- 2. The SIM card slot is on the base of the device. Move the SIM card sliding catch carefully to the right until the SIM card is released.
- 3. Remove the SIM card.
- 4. Insert the new SIM card. To do this move the SIM card slot catch carefully to the right and insert the SIM card in the slot. ...
- 5. Plug the XSBoxR4v power supply into the wall socket and plug the small end into the XSBoxR4v's round Power input.
- 6. Open the administration interface: Administration interface >> Mobile >> enter PIN
- 7. Enter the PIN for the newly inserted SIM card in the fields marked PIN and Confirm PIN and click OK.
- Administration interface log-in
- Security settings
- Basic protection through firewall
- Firewall rules
- Network Address Translation (NAT)
- Denial-of-Service attack (DoS)
- Limiting out-going services
- 1. Activate next to Services the option field Allow the following outgoing services.
- 2. Click on the button Add service.
- 3. Describe the service you wish to activate in the fields marked Name, Type, Start Port and End Port.
- 4. Click on the button OK.
- 5. Add further services in this way to the list if desired.
- 6. Click on the button OK.
- Additional protection with encryption
- WPA encryption
- 1. Enter any string in the field marked key (e.g. mustermann).
- 2. Click on the button OK. The WLAN connection to the XSBoxR4v is disconnected. The list of available wireless network connections already shows, that it is a WPA encrypted wireless network.
- 3. Reconnect to your PC/laptop using WLAN and enter the key generated in your PC/laptop.
- WEP encryption
- 1. Select the entry WEP 152 from the selection list Encryption mechanism.
- 2. This is the highest security level for WEP, which allows the most secure encryption. Enter any string in the field marked Pas...
- 3. Click on the button Create key. Your pass phrase will be converted hexadecimal. The length of the key generated depends on the security level:
- 4. Make note of the key generated and click on the button OK. The WLAN connection to the XSBoxR4v is disconnected. The list of available wireless network connections already shows, that it is a WEP encrypted wireless network.
- 5. Reconnect to your PC/laptop using WLAN and enter the key generated in your PC/laptop.
- Changing SSID
- 1. Enter the desired identification in the field marked SSID. The SSID may be up to 32 characters long; it can contain letters and numbers. The SSID is case sensitive.
- 2. Make a note of the SSID and click on the button OK. The WLAN connection to the XSBoxR4v is disconnected. The new SSID is shown in the list of available wireless network connections.
- Deactivating SSID transmission
- Controlling Access with the help of address filters
- 1. If you wish to allow or refuse the computer access, then activate the option field marked Allowed adresses or Blocked Addresses next to Active Filter lists.
- 2. Click on Add address. Enter the Computer MAC Address for which you would like to allow or refuse access.
- 3. Click on the button OK.
- 4. The MAC address will be added to the appropriate filter list.
- 5. Add further MAC addresses to the filter lists in this way if desired.
- Settings for experts
- Change fixed IP addresses
- Configure DHCP Server
- Dynamic IP addresses
- 1. Highlight the desired entry and click on edit or, should you wish to create a dynamic address area then Add.
- 2. Enter the desired IP addresses in the fields marked IP range.
- 3. Click on the button OK. The connection to the XSBoxR4v's administration interface is disrupted.
- 4. Please enter the new IP address in your browser's address line.
- Static IP addresses
- 1. Click on the button Add.
- 2. Enter the MAC address of the computer connected to the XSBoxR4v in the field marked MAC Address, to which you would like to allocate a static IP address.
- 3. Enter the last numbers of the IP address which you would like to allocate to the computer in the field marked give IP address...
- 4. Click on the button OK. You can change the given static IP address. Highlight the appropriate entry in the list and click on ...
- Configure dynamic DNS
- Configure port forwarding
- Select WLAN channel
- Adjust WLAN Signal strength
- Diagnosis tools
- Status of the XSBoxR4v
- Tools
- Ping Diagnosis
- Trouble shooting
- Delete temporary internet files
- Activate JavaScript in your browser
- Configure your computer to fetch dynamic IP addresses.
- 1. Click with the right-hand mouse button on LAN connection and select the entry properties from the context menu.
- 2. Ensure that the control box Internet protocol (TCP/IP) is activated on the register general.
- 3. Highlight Internet protocol (TCP/IP) and click on the button Properties.
- 4. Activate the following option field on the register General:
- 5. Click on the button OK to store the configuration. You could possibly be requested to reboot your computer.
- Identifying your computer's IP address.
- Check whether the WLAN card is correctly installed on your computer.
- Telephoning
- 1. Pick up the telephone receiver. The device checks the GSM signal strength. The signal strength is shown by the bar indicator on the XSBoxR4v's display. You will here a dial tone if the signal is good.
- 2. Enter the desired telephone number in the usual way.
- Activate SIM card
- 1. Pick up the telephone receiver.
- 2. Please enter PIN appears on the display and you can hear an broken dial tone.
- 3. Press the #-key, enter your PIN, and confirm with the #-key.
- 4. Should the PIN entered be correct, you will hear a confirmation tone and the time, date and network signal strength bars will appear on the display.
- 5. Should the PIN entered be incorrect, you will hear a warning tone and the following hint will appear on the display: wrong PIN. X attempts left
- 6. Ring off.
- Unblocking SIM card
- 1. Pick up telephone receiver.
- 2. Please enter PUK appears on the display and you will hear a broken dial tone.
- 3. Press #, your PUK, *, your new PIN, #.
- 4. Should the PUK entered be correct, you will hear a confirmation tone and the time, date and network signal strength bars will appear on the display.
- 5. Should the PUK entered be incorrect, you will hear a warning tone and the following hint will appear on the display: wrong PUK. X attempts left
- 6. Ring off.
- Changing SIM card PIN
- 1. Pick up the telephone receiver and wait for the dial tone.
- 2. Enter the key sequence #99*.
- 3. Enter the old PIN.
- 4. Press the *-key.
- 5. Enter the new PIN (you can freely select a four to eight digit number).
- 6. Press the *-key.
- 7. Enter the new PIN again to confirm.
- 8. Press the #-key, and wait for the confirmation signal
- 9. Ring off
- Emergency call
- Caller identification
- Service: Call forward (CF)*
- Service: Call waiting, call hold, three party conference *
- SMS Centre
- Appendix
- Specification/Technical data
- Drilling measurements
- (Proportions are not true to scale)
- 4G Systems GmbH declares herewith, that XSBoxR4v fulfils the basic requirements in accordance with TS
- 51.010-1 (GSM/GPRS), EN 301 511, EN 301 908-1 (R&TTE Regulatory Radio Testing), EN 301 489-1, EN
- 301 489-7, EN 301 489-24 (EMC Testing), EN 60950 (Safety Testing) and other relevant provisions of the Directive 1999/5/EG. A copy of the original CE declaration of conformity can be found under the following internet address: http://www.4g-systems.com
- The European directive which became effective on February 13th 2003 and which was implemented in the Federal Republic of Germany...
- The use of the symbol ( ) indicates that this product may not be treated as household waste. You are responsible for disposing o...
