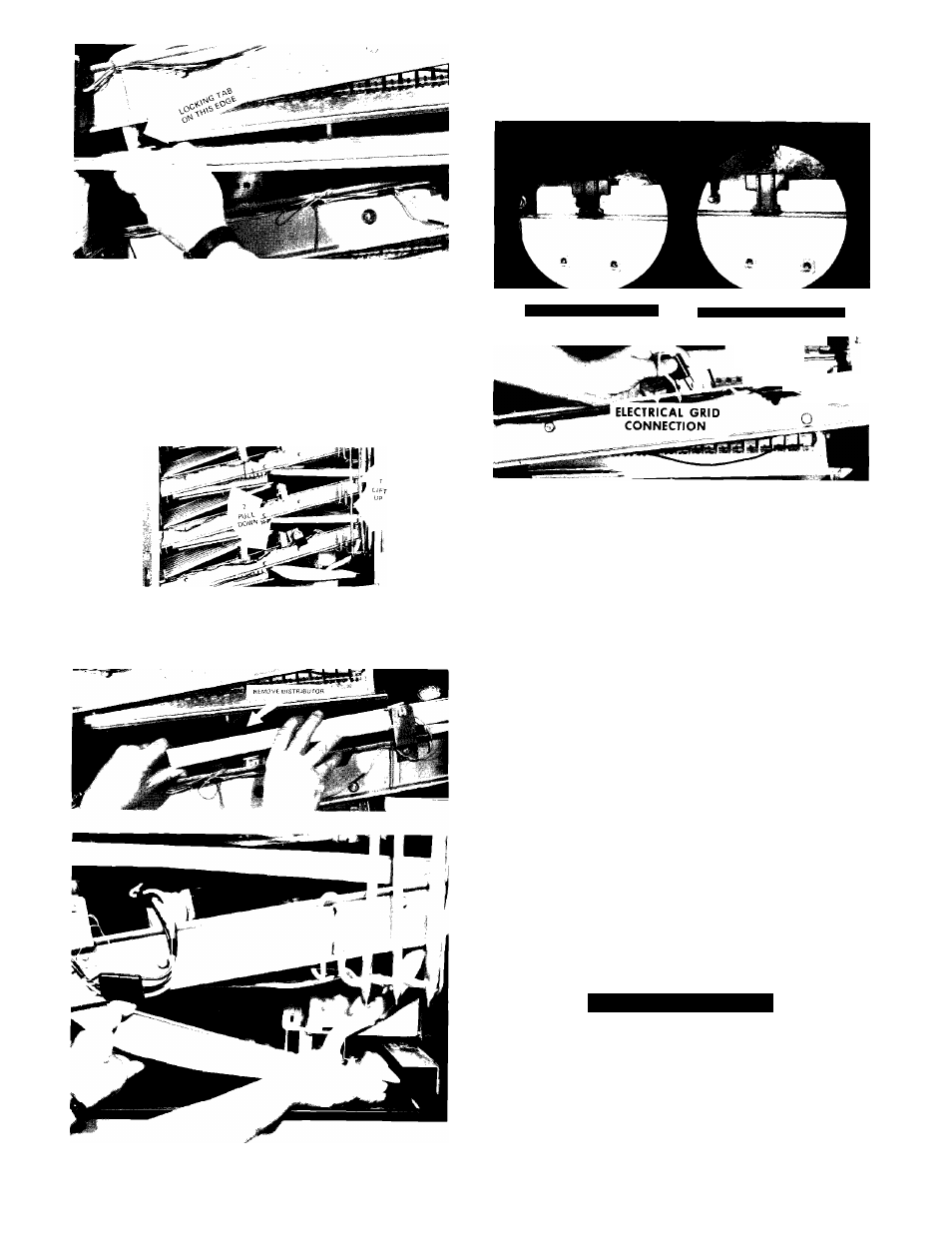

14. Remove the ice cube deflectors between each cutter
grid. The lower left edge has a locking tab which must
clear the grid frame. Push left and up on the lower edge
of the deflector. The right edge then readily comes off
the lower flange of the cutter grid above.
Wash the deflectors and distributors with a mild
detergent solution, rinse with clean water and sanitize
with the sanitizer solution. If heavy scale exists the
components
may be soaked in cleaning solution to
remove the scale.
15. Remove the lower water distributors. Lift up on the
right side and pull the left edge off of the cutter grid.
The plastic distributor may have to be flexed slightly to
get it off the grid flange.
hose connected to the bottom of the pan. The plastic
pan should then be moved to the left until the right
edge can be dropped off the mounting flange. During
removal the pan may have to be flexed slightly.
MOUNTING CLIP - LOCKED MOUNTING CLIP - UNLOCKED
MERCURY
SWITCH
m,»;» »
17. Remove each cutter grid. Unplug the electrical
connection and remove the grid switch. Grids are held
in position on four studs. Sliding clips free the grids
from the studs on the left end and the other end of the
grid slides off the studs nearest the freezing plate. The
entire grid can be placed in cleaning solution (see item
1). Allow the grid to soak and use a toothbrush to
remove scale and mineral deposits on connecting pins
and grid wires.
18. Wash the ice maker interior with a mild solution of
detergent and rinse with fresh water. Then wipe the ice
maker interior with the sanitizer solution (see item 1).
19. Reinstall grids, mercury switch, deflectors and
distributors.
NOTE; Mercury switches are to be positioned as
indicated on the sketch located on the support rail.
Incorrect position will result in malfunction of the
machine.
20. Wash the interior of the bin with a mild solution of
detergent, and rinse with fresh water. Then wipe the
bin interior with sanitizing solution.
21. Place the service switch to the "normal on" or "timed
on position to resume the ice making cycle.
16. Remove the water reservoir pan. Remove the syphon
WINTER SHUT DOWN
If the ice cube maker is to be shut off for several months,
remove all ice from the bin and then Clean & Sanitize the
ice maker.
Water inlet and drain lines must be blown out if the unit
will
be subjected to freezing temperatures during shut
down. Failure to do so may cause the water inlet or drain
line to freeze and rupture. Disconnect electricity to the
machine and leave the door cracked open to prevent any
odor from developing.
