Changing the light bulb...

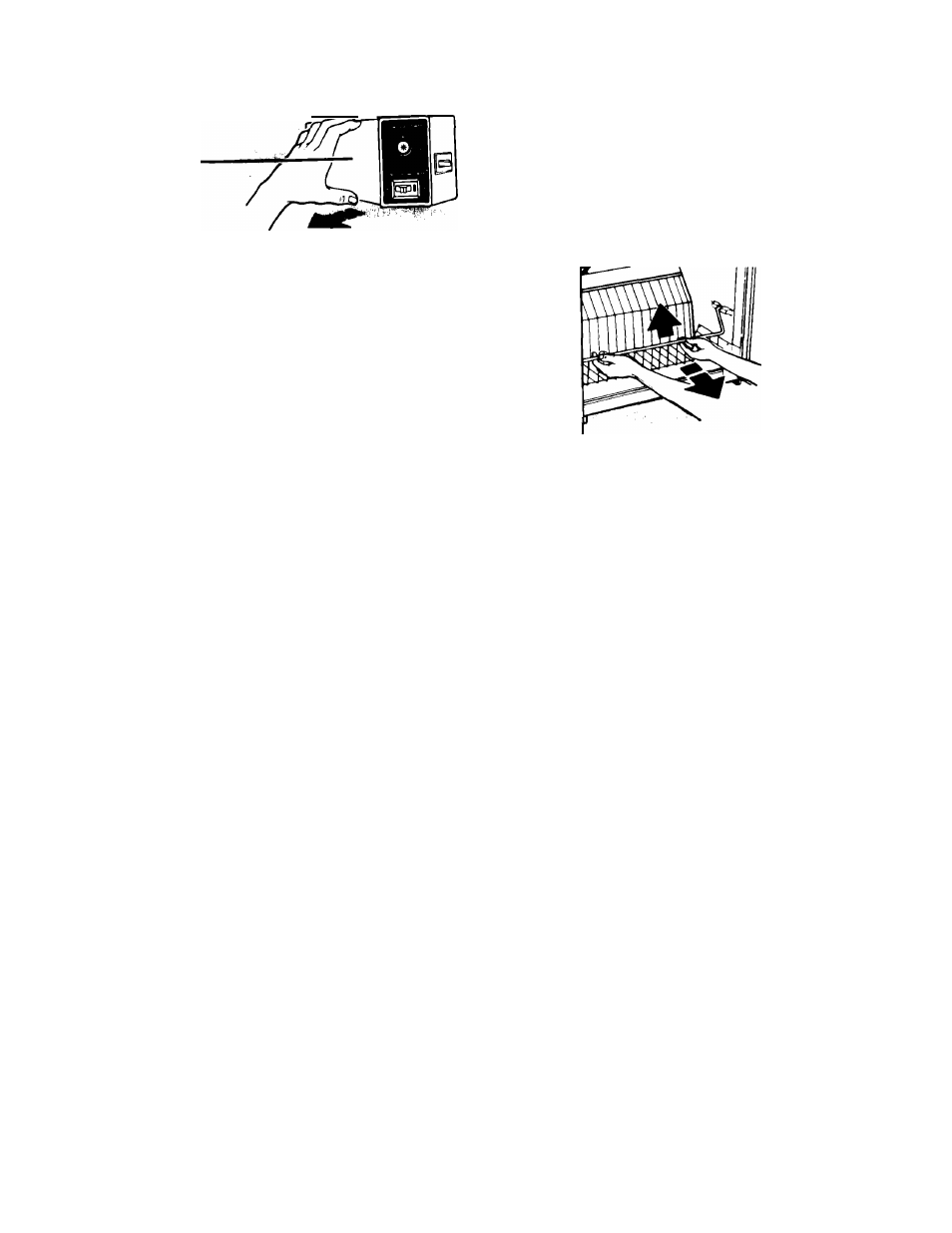

Light Shield
Removing the bottom trivet...
To remove:
1. Lift front of trivet out of supports.
2, Pull out.
Lift the Front,
Then Pgll Out.
To replace:
1. Position back of trivet on the rear wall supports.
2. Lower front into place.
WARNING: To avoid possible shocks, first unplug
freezer or turn off electricity leading
to freezer at the main power supply.
1. Remove the light shield from the side of the control
panel. Depress the back of the shield to release the
tabs, then pull away.
2. Replace bulb with a 40-watt appliance bulb.
3. Replace the light shield. Insert the shield tabs in the
slots, then press the shield to snap into place.
4. Plug in power cord or switch on electricity.
Energy saving tips...
You can help your freezer use less electricity.
• Check door gasket and level freezer to assure a
good door seal.
• Clean the condenser colls regularly,
• Keep door openings to a minimum. Remove several
items at one time. Keep contents organized to elimi­
nate searching.
• Fill to capacity. Follow recommended procedures
for freezing foods. See pages 8 and 9,
• Set Temperature Control to provide temperatures
around 0°F(- 17.8 °C), There is no need to store
foods below 0°F
• Keep door locked to ensure door closure.
• Do not let frost build up to more than K
j inch (6 mm]
thick. Efficiency is reduced.
• Keep Power Saving Control on OFF when humidity is
low.
