For technical questions, please call 1-800-444-3353.
Item 69683

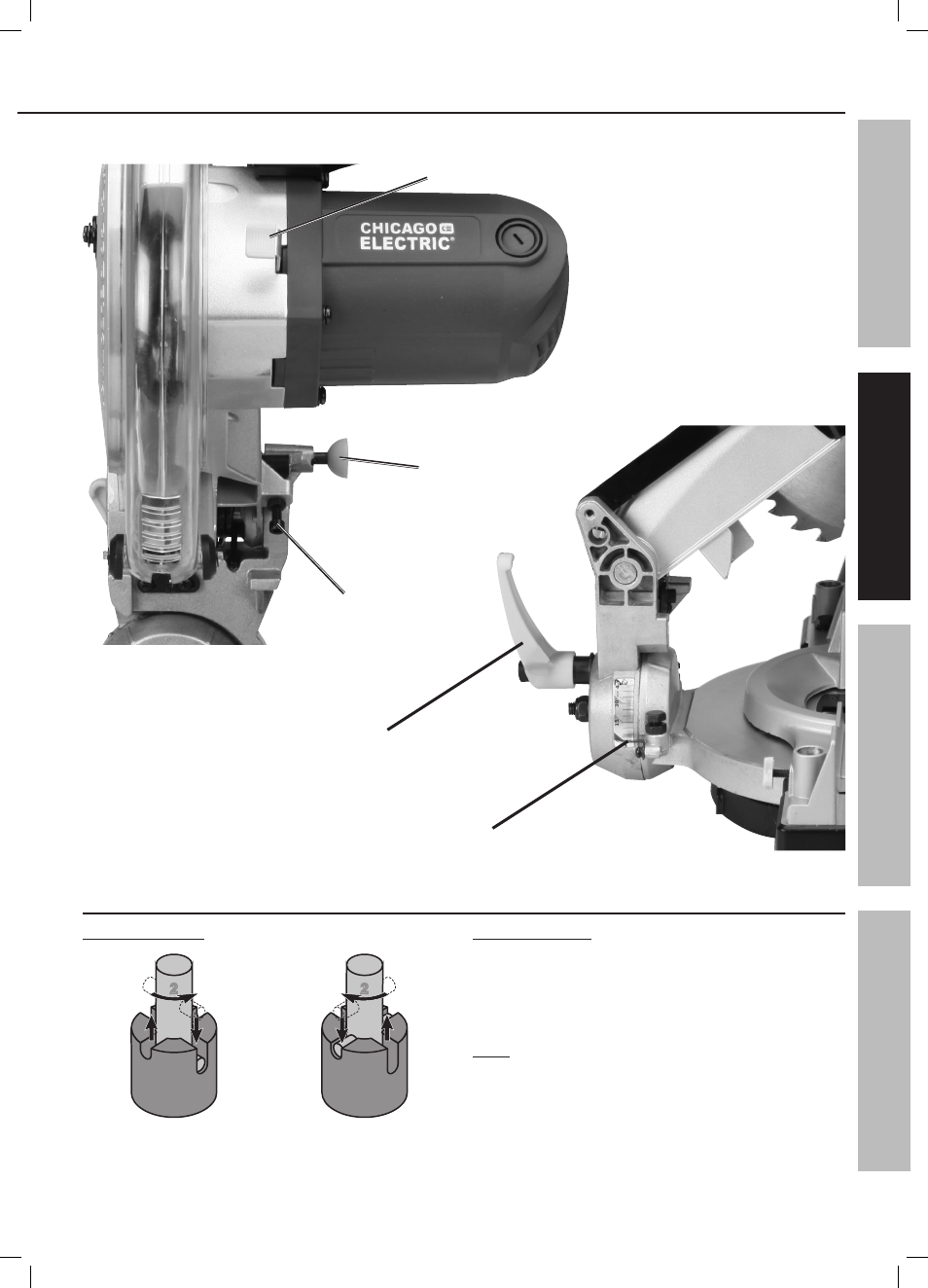

Functions
Description of Selected Functions
Head Lock-down:
2
3
1
Align pin with
deep groove
to lock cutting head.
2
1
3
Align pin with
shallow groove
to unlock cutting head.
Guard operation:
When the Handle is lowered, the Lower Guard
raises automatically. When the Handle is raised the
Lower Guard returns to its safety position. Keep hands
clear of the Blade when the Handle is lowered. Do not
interfere with the proper movement of the Lower Guard.
Note: Additional functions are explained
elsewhere in the manual.
Spindle Lock
Head
Lock-down
Depth
Stop
Bolt
Bevel
Indicator
Bevel
Lock
Lever
SAFETY
OPERA
TION
MAINTENANCE
SETUP
