4-12 Storage

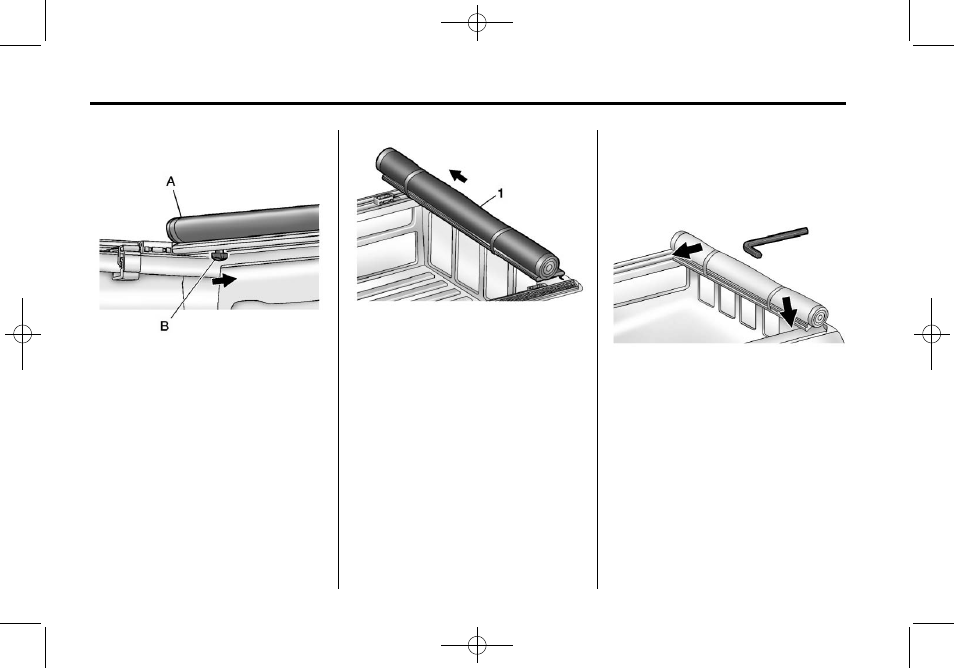

Removal
1. Secure the cover (A) into the
open position.
2. Loosen wing bolts (B) on both
driver and passenger side of
front rail, then slide latches
inboard until released from the
side rail.
3. Pick the cover assembly up on
the driver side and pull the
whole assembly off the
truck box.
Adjustment
1. If the cover is too loose, turn the
tensioning screw clockwise to
tighten the tension of the vinyl.
This makes it harder to operate
the rear release latch. The
tensioning screws are located on
each side rail. Use the provided
1/4 inch key to turn the
tensioning screws.
2. Adjust the screws on both sides
to the same tension.
