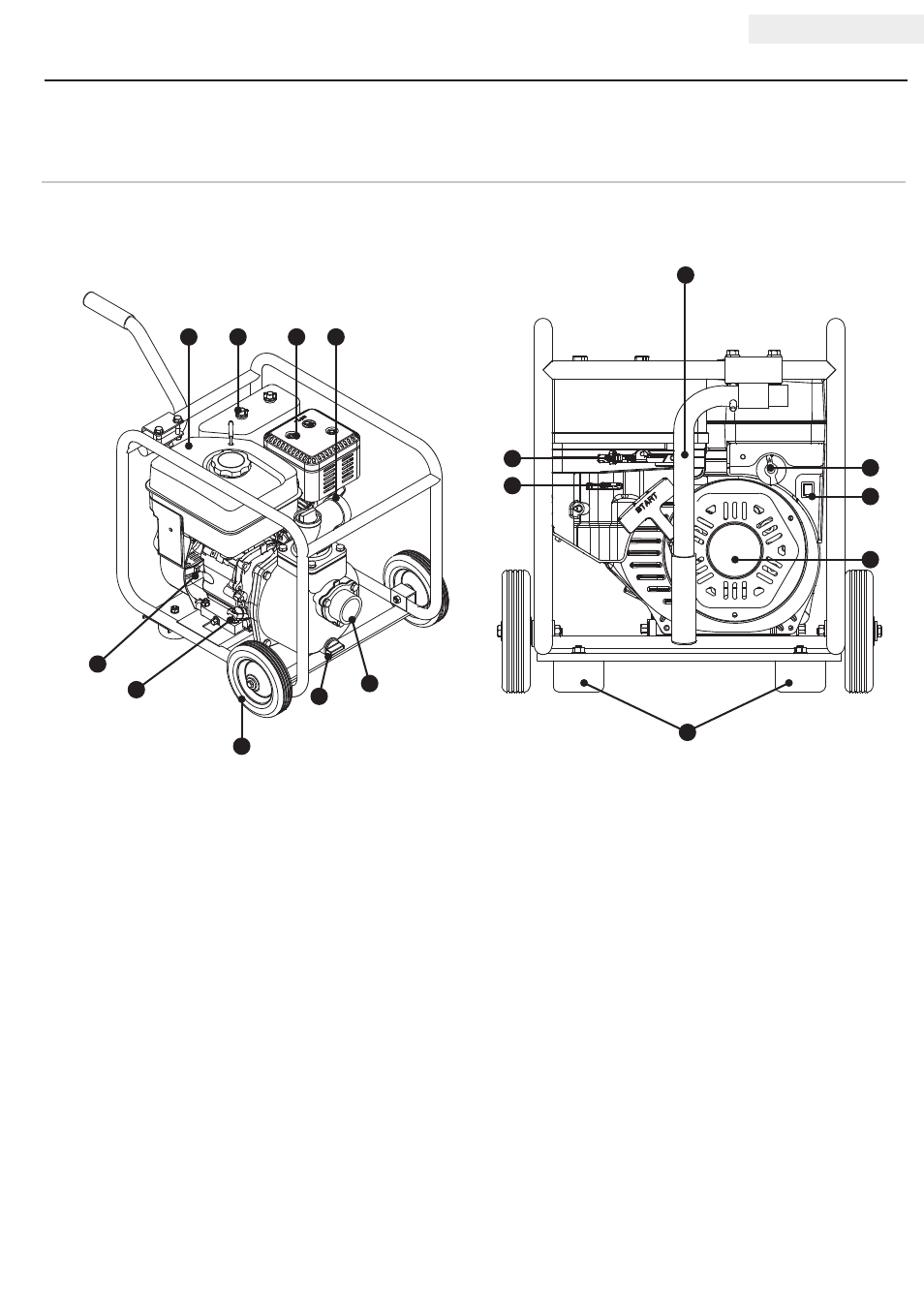

(1) Fuel Tank – 0.9 gal. (3.4 L) capacity fuel tank.
(2) Air Filter – Protects the engine by filtering dust
and debris from the air intake.
(3) Muffler
(4) 2 in. (5.1 cm) Outlet – 2 in. (5.1 cm) NPT outlet
connector.
(5) Low Oil Sensor – Senses the level of oil in the
crankcase and shuts the engine down if the level
falls too low.
(6) Oil Filler Cap – Check and fill engine oil level.
(7) 6 in. (15.2 cm) Never Flat Wheels
(8) Drain Plug
(9) 2 in. (5.1 cm) Inlet – 2 in. (5.1 cm) NPT inlet
connector.
(10) Handle
(11) Throttle Lever – Used to adjust engine speed.
(12) Choke lever– Used to start the engine.
(13) Anti-Vibration Mounts
(14) Recoil Starter – Used to start the engine.
(15) Engine Switch – Used to start the engine.
(16) Fuel Valve – Used to turn fuel supply on and off to
engine.
Semi-Trash Pump
CONTROLS AND FEATURES
4 1 2 3
9
8
13
7
15
12
11
10
14
16
6
5
Read this owner’s manual before operating your semi-trash pump. Familiarize yourself with the location and function
of the controls and features. Save this manual for future reference.
