Log Splitter Specifications
– Ram Force 7 Ton
– Cycle Time, Max 20 seconds
– Hydraulic Tank Capacity 0.87 gal. (3.3 L)
– Max Log Length 20 in. (50.8 cm)
– Tire Size, Outside Diameter 10 in. (25.4 cm)
– Engine 80 cc, OHV, 4 stroke
– Cylinder size 3 in. diameter (7.5 cm)
– Gear Pump 2-stage
– Max pressure 3000 psi
– Max flow 3 GPM
– Control Valve Detent (auto-return)
– Overall Dimensions
– Gross Weight 167.6 lb. (76 kg)
– Net Weight 143.3 lb. (65 kg)
– Height 18.1 in. (46 cm)
– Width 23.6 in. (60 cm)
– Length 53.1 in. (135 cm)
SPECIFICATIONS
Engine Specifications
– Model YF152F-2-000
– Displacement 80 cc
– Type 4-Stroke OHV
– Start Type Recoil
Hydraulic Oil System
Oil capacity is 1.3 gallons (4.9 L).
For year round use in warmer climates
(always ABOVE 32 ˚F/0 ˚C):
– SAE 10W
– ISO 32
– SAE 32
– ISO 46
– ASLE H-150
– Universal Hydraulic/Transmission Fluid
For year round use in colder climates
(sometimes BELOW 32 ˚F/0 ˚C):
– Automatic Transmission Fluid
When temperature is below 32º F (0ºC) use
universal tractor/transmission fluid.
NOTE
Maintenance Valve Clearance
– Intake: 0.13 – 0.17 mm (0.005 – 0.007 in.)
– Exhaust: 0.18 – 0.22 mm (0.007 – 0.009 in.)
Note: Tech bulletin regarding the valve adjustment
procedure is on www.championpowerequipment.com.
Spark Plugs
OEM spark plug: NHSP E6RTC
Replacement spark plug: NGK BPR6HS or equivalent
Make certain the spark plug gap is 0.7 - 0.8 mm or
(0.028 - 0.031 in.).
Oil
Use 10W-30 automotive oil.
Oil capacity is up to 0.42 qt (0.4 L).
DO NOT OVERFILL.

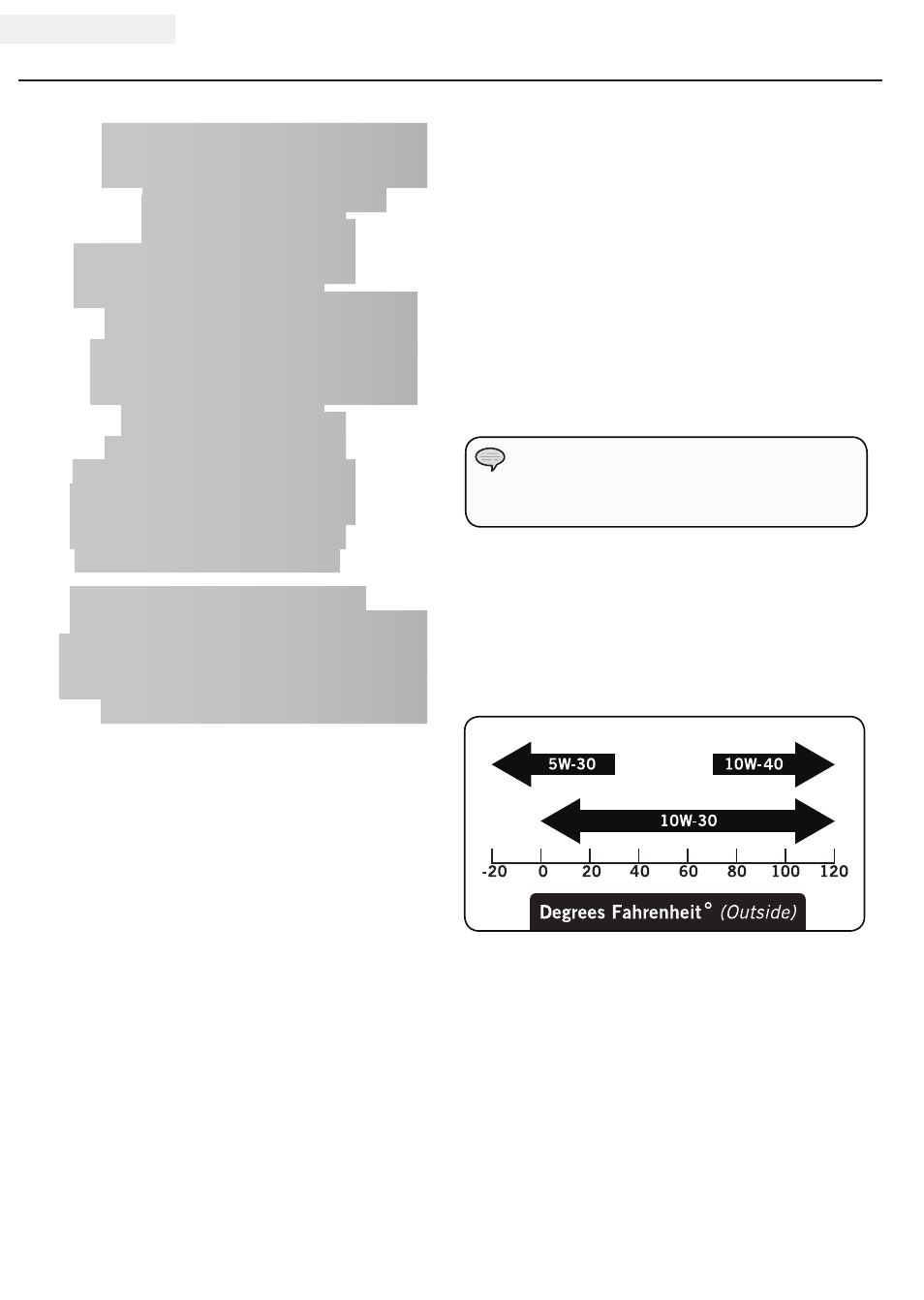

Please reference the following chart for recommended
oil types for use in the log splitter.
Fuel
Fuel capacity is 0.4 gallons (1.5 L). Use regular
unleaded gasoline with a minimum octane rating of 85
and an ethanol content of less than 10% by volume.
An Important Message About Temperature
Your Champion Power Equipment product is designed
and rated for continuous operation at ambient
temperatures up to 40°C (104°F). When your product is
needed your product may be operated at temperatures
ranging from -15°C (5°F) to 50°C (122°F) for short
periods. If the product is exposed to temperatures
outside this range during storage, it should be brought
back within this range before operation. In any event,
the product must always be operated outdoors, in a
well-ventilated area and away from doors, windows and
other vents.
