CAMCORP HVP with Duroflow Blower - Manual (Page 47)

AMERICAN CONTROL PRODUCTS
A DIV. OF PRECISION TIMER CO., INC.
47 WESTBROOK INDUSTRIAL PARK ROAD
WESTBROOK, CT. 06498
PHONE: (860)399-6253 FAX:(860)399-5619
EMAIL:[email protected] Web Site: precisiontimer.com
TECHNICAL BULLETIN
SOLID STATE TIMING MODULE
PAGE 2
OF 2 DATE
6-4-01
606
REV
B

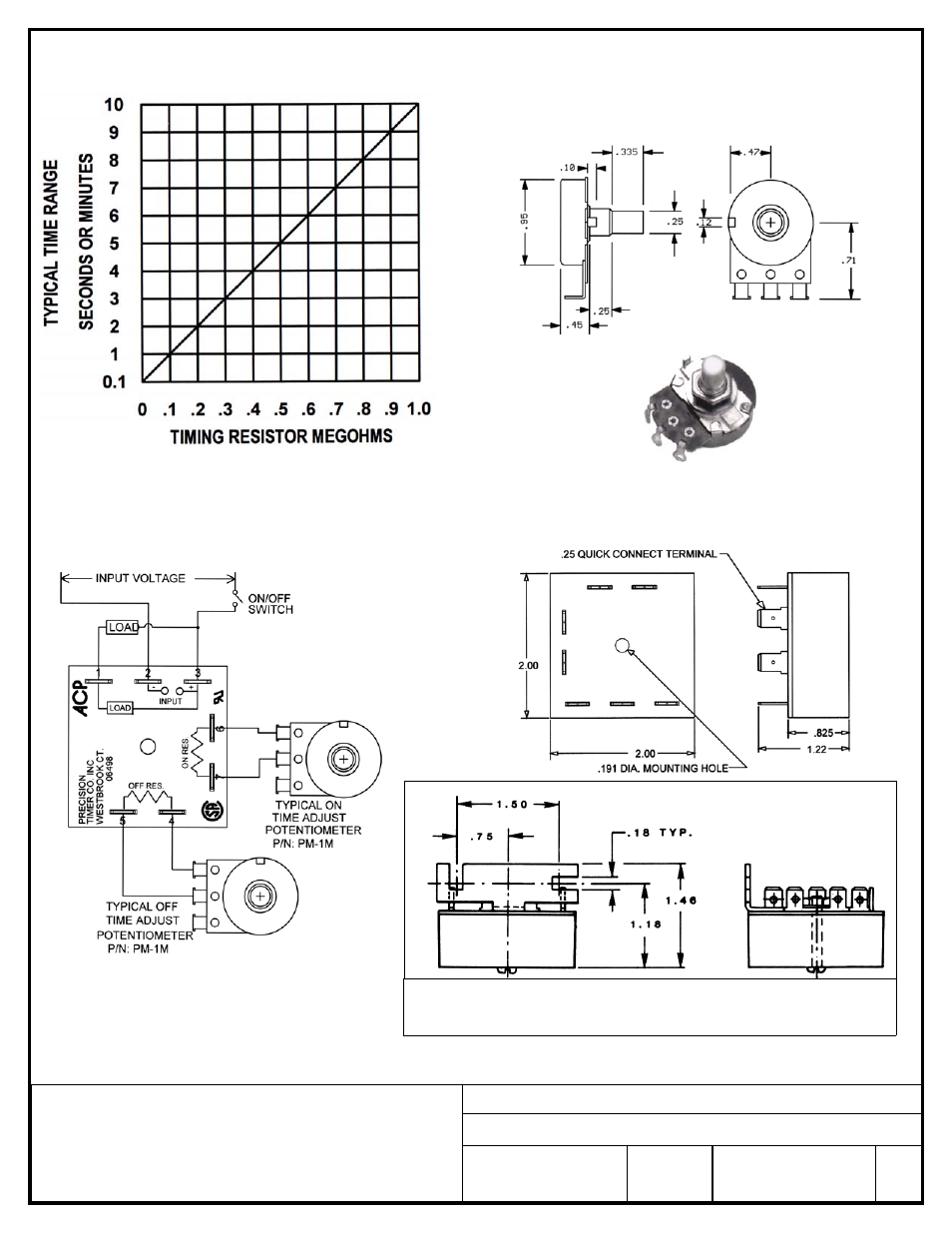

CALIBRATION RESISTANCE VS TIME ACCESSORIES – AVAILABLE FROM STOCK
ORDER P/N: PM – 1M 1 MEGOHM ± 20%
PM – 100K 100 KOHM ± 20%
TYPICAL WIRING OUTLINE DRAWING
MADE IN USA
Order bracket mount model as: 606BM – (T1) (T2) (V) (P1) (P2)
606RBM (T1) (T2) (V) (P1) (P2)
