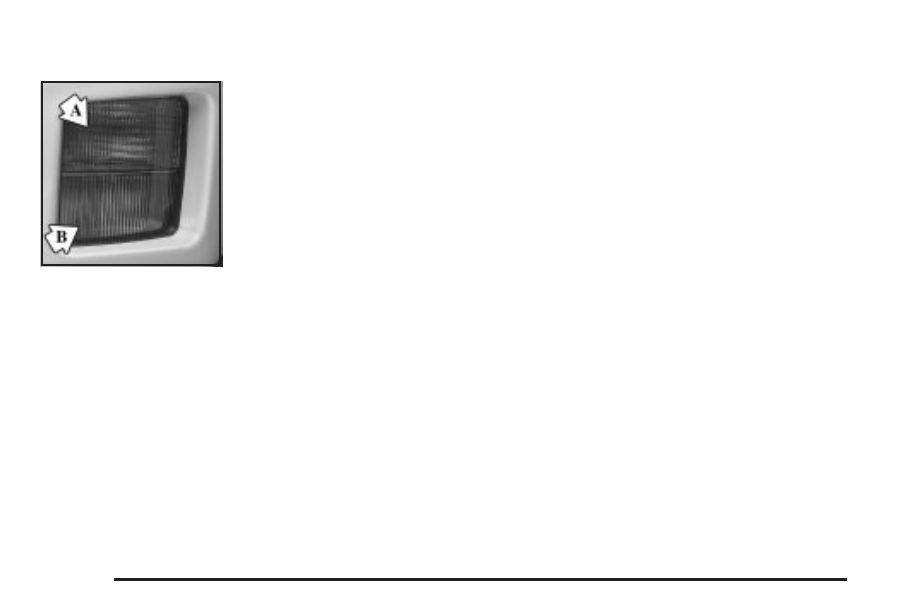

Front Turn Signal and Fog Lamps

A. Turn Signal Lamp

B. Fog Lamp

To replace a fog or turn signal lamp bulb, do the
following:

1. Remove the protection shield located on the

underside of the front of the vehicle by pulling
out the push-pins located on the underside of
the protection shield.

2. Reach up behind the front bumper area from under

the vehicle to access the lamp housing.

3. Remove the bulb socket from the housing by

turning the bulb socket one-quarter turn
counterclockwise.

4. Remove the electrical connector from the bulb by

lifting the two plastic clips.

5. Pull the old bulb from the bulb socket keeping the

bulb straight as you pull it out.

6. Install a new bulb.

7. Reverse the steps to reinstall the lamp assembly.
