2-64

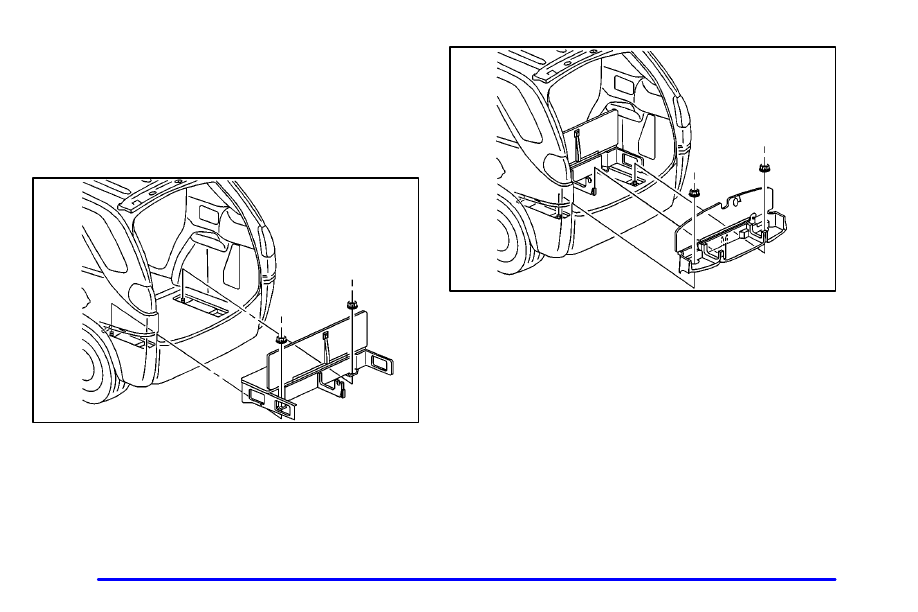

Replacing the Extended Rear Convenience Center
1. Make sure that all items have been removed from the
rear of the vehicle.
2. Remove the carpeted mat (if equipped) from
the vehicle.
3. Lift the forward bin into the back of the vehicle.
Place the mounting brackets onto the forward
mounting bolts on the floor of the vehicle.
4. Put the nuts back onto the mounting bolts
and tighten.
5. Lift the rear bin into the back of the vehicle. Place
the rear bin over the center T - shaped wall on the
forward bin. Push down to secure. Align the rear bin
over the rear mounting bolts.
6. Put the nuts back onto the mounting bolts
and tighten.
7. Push and pull on the rear storage system to make
sure that it is locked into place properly.
