Buick 2007 LaCrosse - Manual (Page 393)

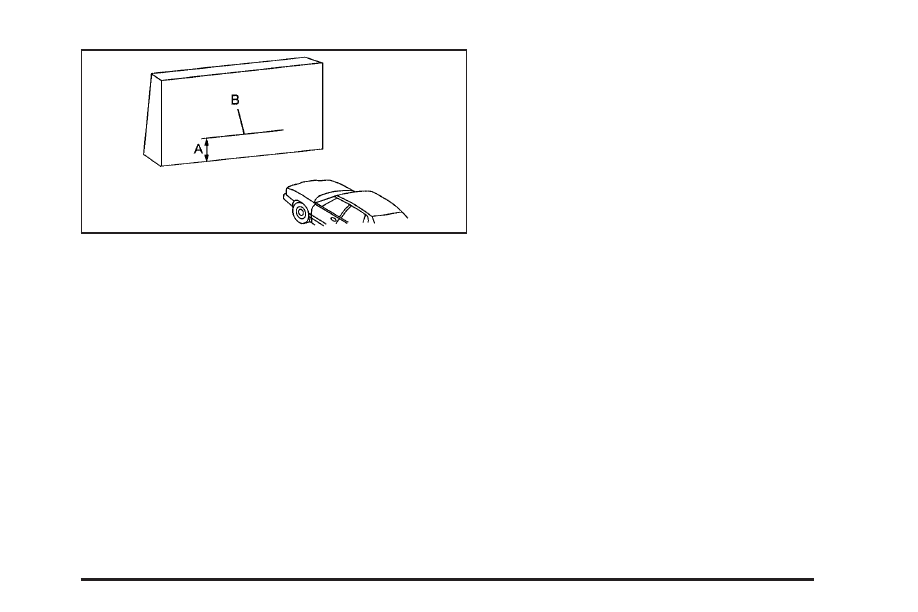

4. At the wall measure from the ground
upward (A) to the recorded distance
from Step 3 and mark it.
Notice: Do not cover a headlamp to improve
beam cut-off when aiming. Covering a
headlamp may cause excessive heat build-up
which may cause damage to the headlamp.
5. Draw or tape a horizontal line (B) on the wall
the width of the vehicle at the height of the
mark in Step 4.
6. Turn on the low-beam headlamps and place a
piece of cardboard or equivalent in front of the
headlamp not being adjusted. Do not place
directly on the headlamp. This allows only the
beam of light from the headlamp being
adjusted to be seen on the flat surface.
7. Locate the vertical headlamp aiming screws,
which are under the hood near each headlamp
assembly.
The adjustment screw can be turned with a
6 mm male hex.
8. Turn the vertical aiming screw until the
headlamp beam is aimed to the horizontal tape
line. Turn it clockwise or counterclockwise to
raise or lower the angle of the beam.
393
