AXEON Fluid-O-Tech Repair Rebuild - Manual (Page 4)

08/09 Ed., Rev. B Page 4of 16

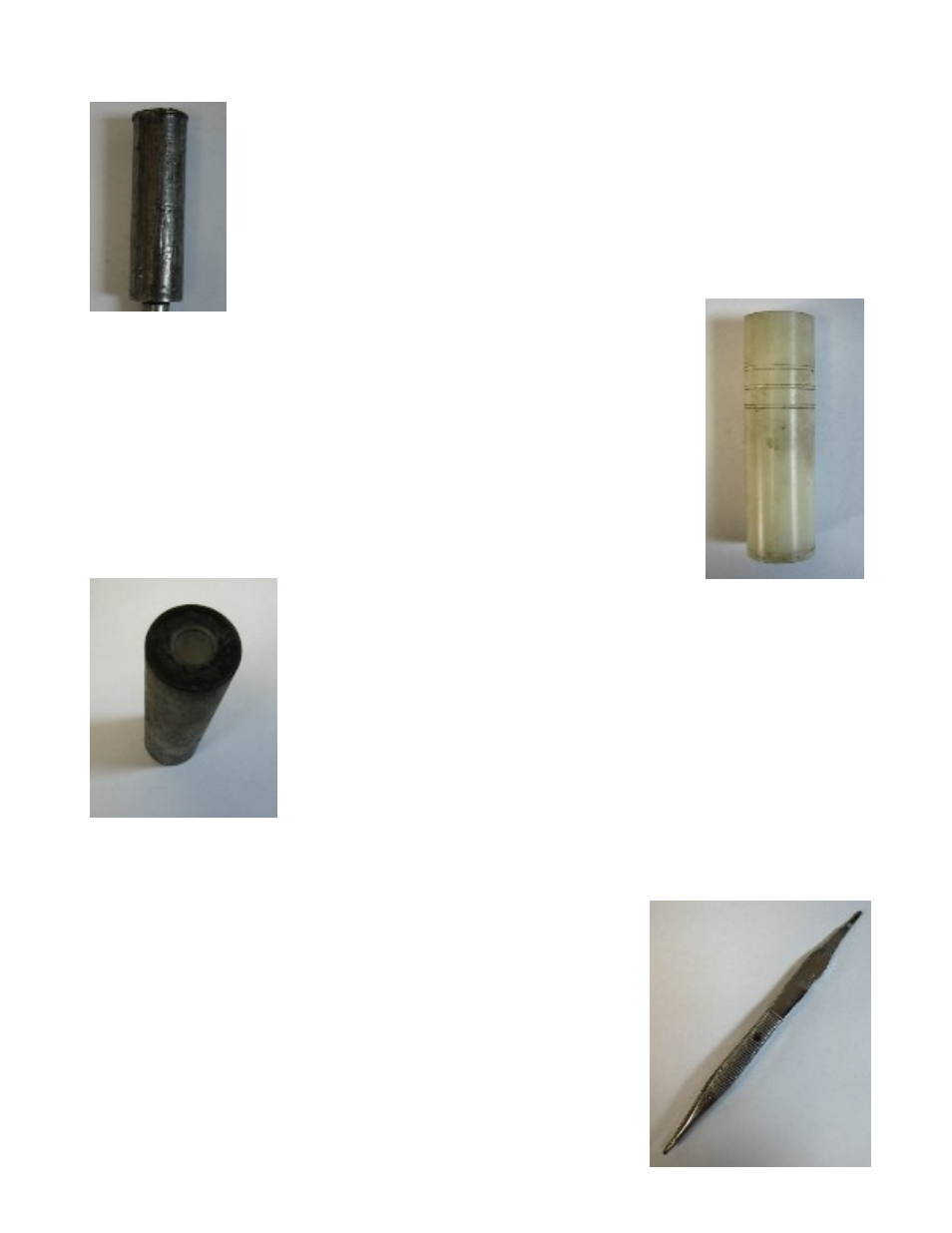

# 5) Metal Rod
Rod to press out the washer and counterface.
It should be about 3/4“ diameter.
# 6) Plastic Rod
Short length of plastic rod for pressing the counterface in place.
Nylon is ideal, and should be about 1.1”. The end should be flat
and squared.
# 7) Plastic tube
Plastic tube to press the seal onto the shaft. It should have a flat,
square end with an ID of about .475” and an OD greater than
about 1”.
# 8) Tweezers
These are not required, but make putting the pins in
the rotor much easier.
