Awntech Mesa User Manual
Page 3
3

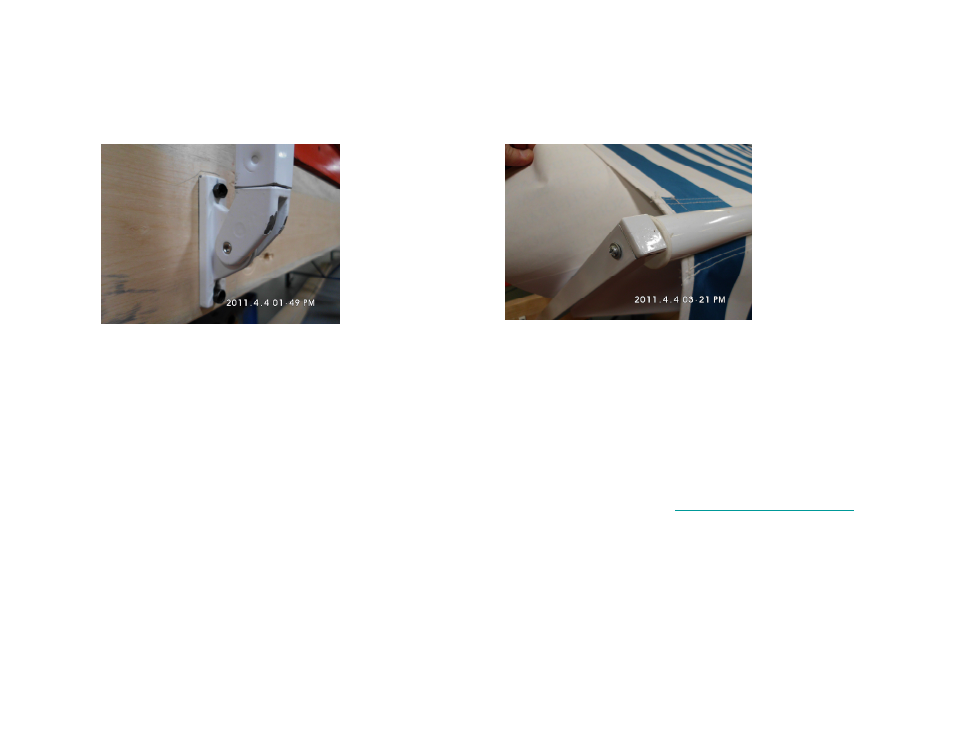

Installation of the projection arms: image 3 & 4
Measure the height of the awning. The height represents the length of the projection arms. The bracket of the
projection arm has a slit and the slit must face the ground. The installation space between the arms must be equal
to the (Space, 1
st
image). Once the arms are installed then lift one arm at a time and attach it to the projection rod
of the awning and secure it tightly. Then repeat the same for the second arm.
CAUTION: THE ARM IS SPRING
LOADED. IMPROPER HANDLING CAN RESULT IN SERERE INJURY TO THE PERSON AND MAY CAUSE
DAMAGE TO THE PROPERTY.
IF YOU HAVE ANY QUESTIONS PLEASE CONTACT US AT 817-354-9600 OR EMAIL
