Awntech Hampton FULL CASSETTE - Manual (Page 5)

INSTALL
Hanging the Awning

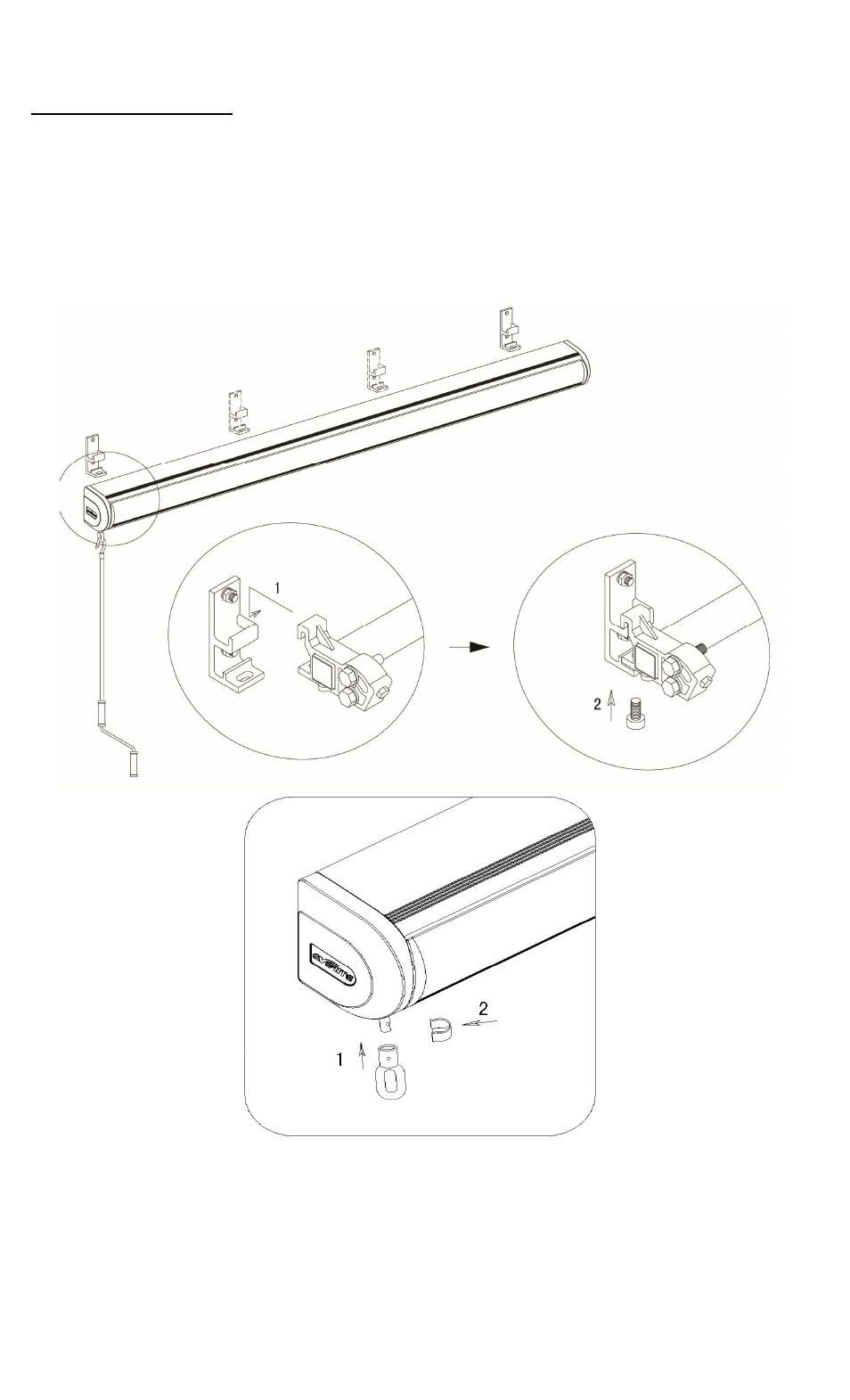

At least 2 adults are needed to hang the awning in the wall brackets. With help, lift
awning to the brackets on the wall and slip the torsion bar into the brackets as
shown in the following figure. If torsion bar can not be easily slipped into the bracket,
lift the front profile slightly. If it still does not fit, loosen nuts (7) on the bracket to align
the torsion bar with bracket. Finally, tighten all bolts securely.
Torsion Bar
Arm Base
Wall Bracket
Gear Box
Wall Bracket
