4 - User and Installation Manual
AvMap Ultra EFIS
User and Installation Manual - 5
AvMap Ultra EFIS

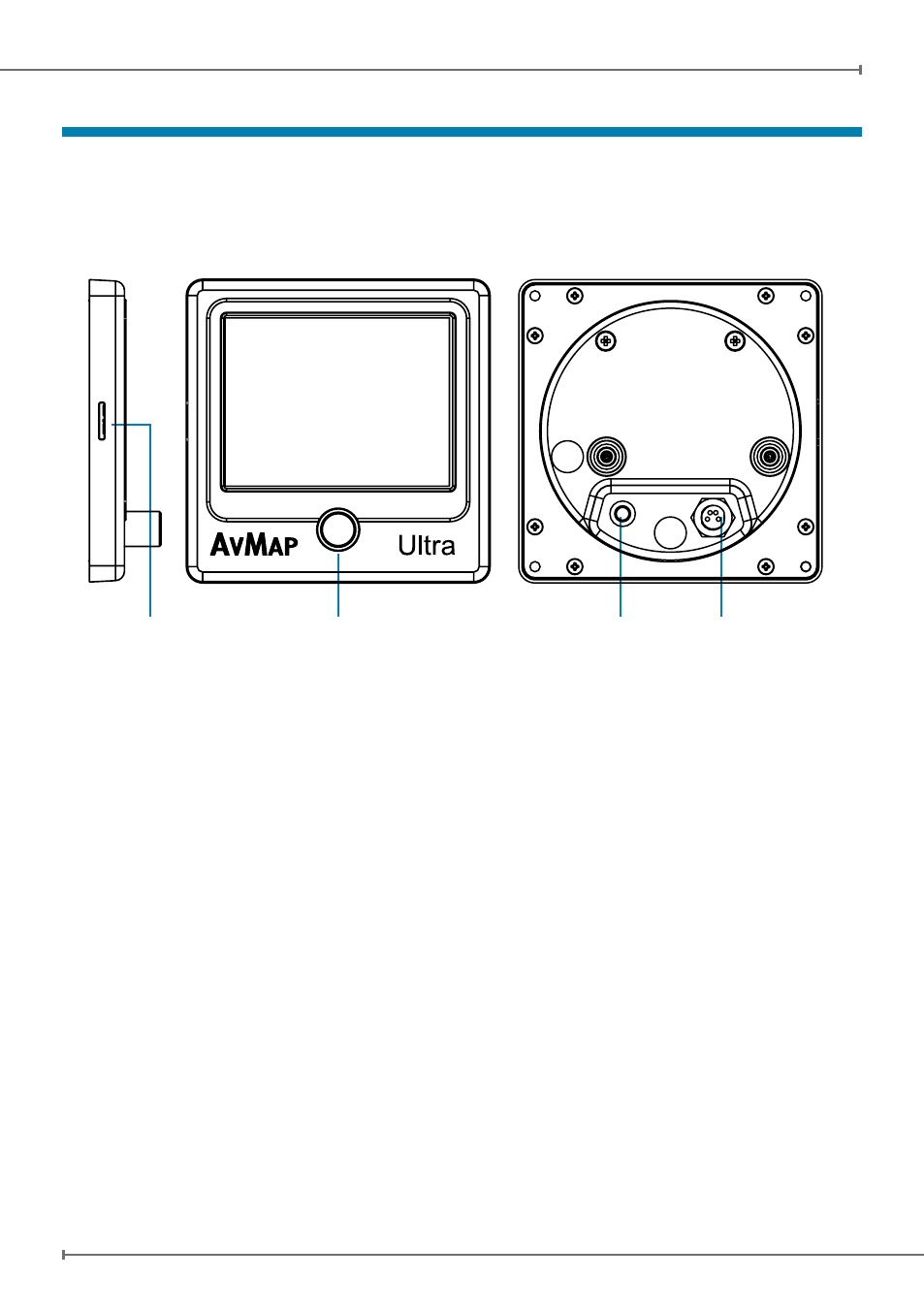

Rotation knob
Figure 1
microSD
slot
Note: For connection specifications see Chapter 2.
ADAHRS
The core of the Ultra is the ADAHRS module. The ADAHRS module contains
solid-state gyros, accelerometers, magnetic field sensors and air data
sensors, providing attitude, heading, altitude and airspeed data to the system.
In order to take full advantage of its functionality, the Pitot and Static ports should be
connected to the aircraft Pitot-static system.
GPS receiver
Connecting the external GPS receiver to the Ultra, the system provides the pilot with
navigation information on the HSI page , providing its position, direction and radials relative
to reference navigation points.
Preloaded navigation POI’s
Ultra is preloaded with Jeppesen navigation POI’s: Airports, NDB’s and VOR’s.
Coverage available: Europe-Africa, North America, South America, Asia-Australia.
The Jeppesen aeronautical database is updated every 28 days. Updates can be purchased
and downloaded at www.avmap.it.
1. Overview
Ultra is a complete instrumentation system for primary flight display (PFD) and horizontal
situation indicator (HSI) functions. It is a rugged and reliable system designed for fixed panel
installation.
Power
& I/O cable
GPS receiver
connector
