20 - AvMap

Farmnavigator

terrain. Farmnavigator software will draw your sprayer,
reproducing the exact number of sections and nozzles,
and it will support you to switch the different sections
on and off.

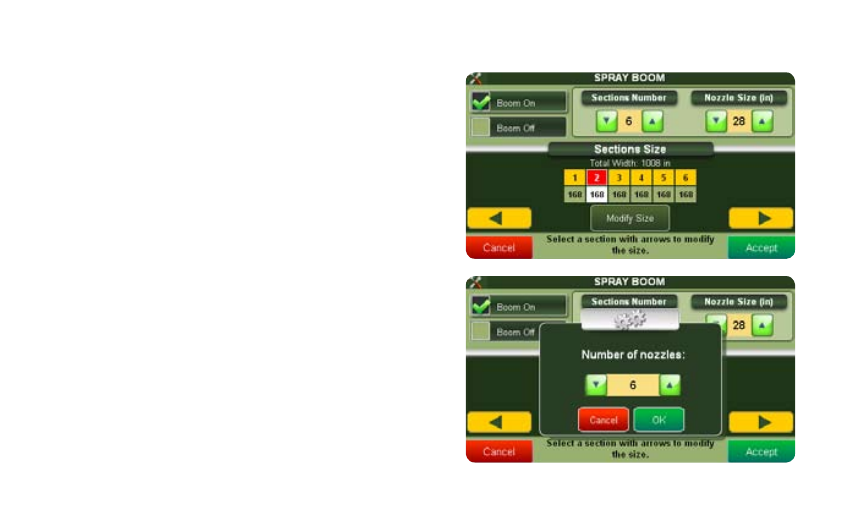

To activate this function press the Spray Boom button in
the main menu and then press the Boom On button.

ATTENTION

when the spray boom virtual control is

activated, its settings are used to calculate the working
width, ignoring the width set in the Working Width page
(par. 2.3.1).

Now you can set the number of sections and the width of
each Nozzle using the arrow Buttons.
The Sections are displayed by numbered squares. You can
select each section and change its width by clicking the
modify size button. Use the arrows to adjust the number
of booms and confirm with OK to save the settings and
