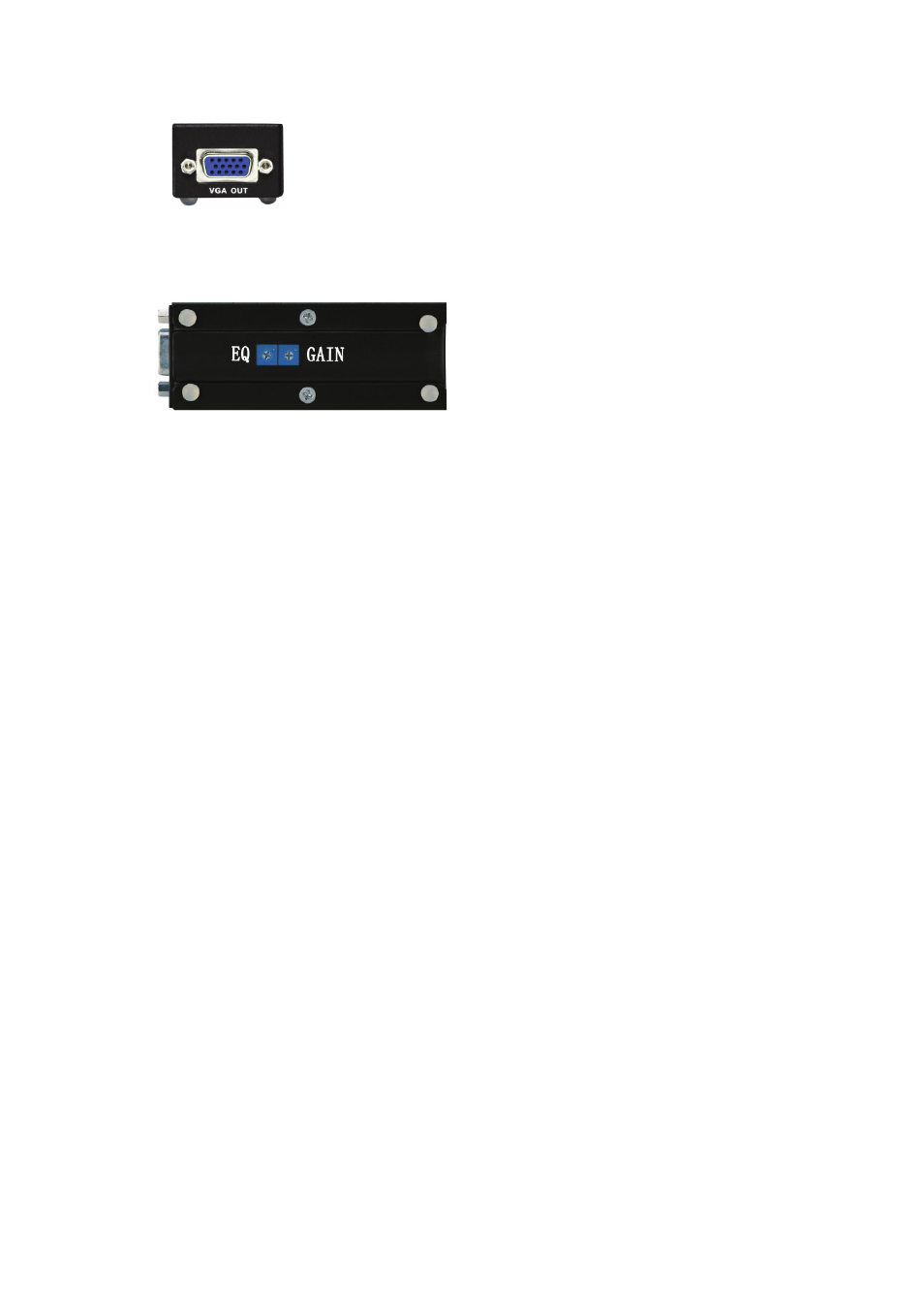

REMOTE REAR VIEW

VGA-R/VGA-R-PRO

1. VGA Output (HD-15 Female Connector)

REMOTE BOTTOM VIEW

VGA-R/VGA-R-PRO

1. EQ – Equalization length adjust (Adjust it and weak characters be sharp)
2. GAIN – Adjust brightness

Installation

1. Turn off the PC.
2. Connect VGA-Extender Local Unit HD-15 female input connector with HD-15 male to male

cable from PC.

3. Connect VGA-Extender Local Unit HD-15 female output connector with HD-15 male to male

cable from monitor.

4. Connect VGA-Extender Local and Remote Unit with CAT.5 cable.
5. Connect VGA-Extender Remote Unit HD-15 female connector with HD-15 male to male cable

from monitor.

6. Connect the power cord on each side.
7. Turn on the monitor and PC.
