Line inputs Four line inputs are available labeled CD1, CD2, Tuner and Aux. Any
standard ʻline levelʼ source can be connected to these inputs.
Connect the ʻRec-Outʼ or ʻLine Outʼ sockets on your recording device
to the ʻTape Inʼ sockets of the M2 Line, Balanced and the ʻTape Outʼ
sockets to the ʻRec-Inʼ or ʻLine Inʼ sockets of your recording device.
Ground Post A ground post is provided for connection to those source components
that also use a separate ground terminal.
Mains The M2 Line Balanced Pre Amplifier utilizes an IEC 320 mains inlet
socket. Use the supplied mains cable to connect the unit to the local
mains supply. The mains fuses are located in separate fuse holders,
situated on the rear panel.
Special Note – Make sure that all connections are tight and clean. For
best results use good quality audio interconnects. Although it is
perfectly acceptable to use cables manufactured by other companies,
for best results and performance, we recommend our own Audio Note
(UK) range of interconnects and loudspeaker cables. For further
information, please consult your nearest Audio Note (UK) dealer, or
alternatively please feel free to contact us directly.
Outputs
The M2 Line Balanced provides two unbalanced outputs, consisting of
two pairs of colour coded RCA / Single Ended sockets.
RED is for
RIGHT channel connection, WHITE is for LEFT channel connection.
There is also a balanced output, consisting of a pair of ʻmaleʼ XLR
sockets (see ʻBalancedʼ section, below).
RCA The two pairs of RCA / Single Ended outputs are for connection to a
power amplifier and are identical, making them suitable for bi-amping.

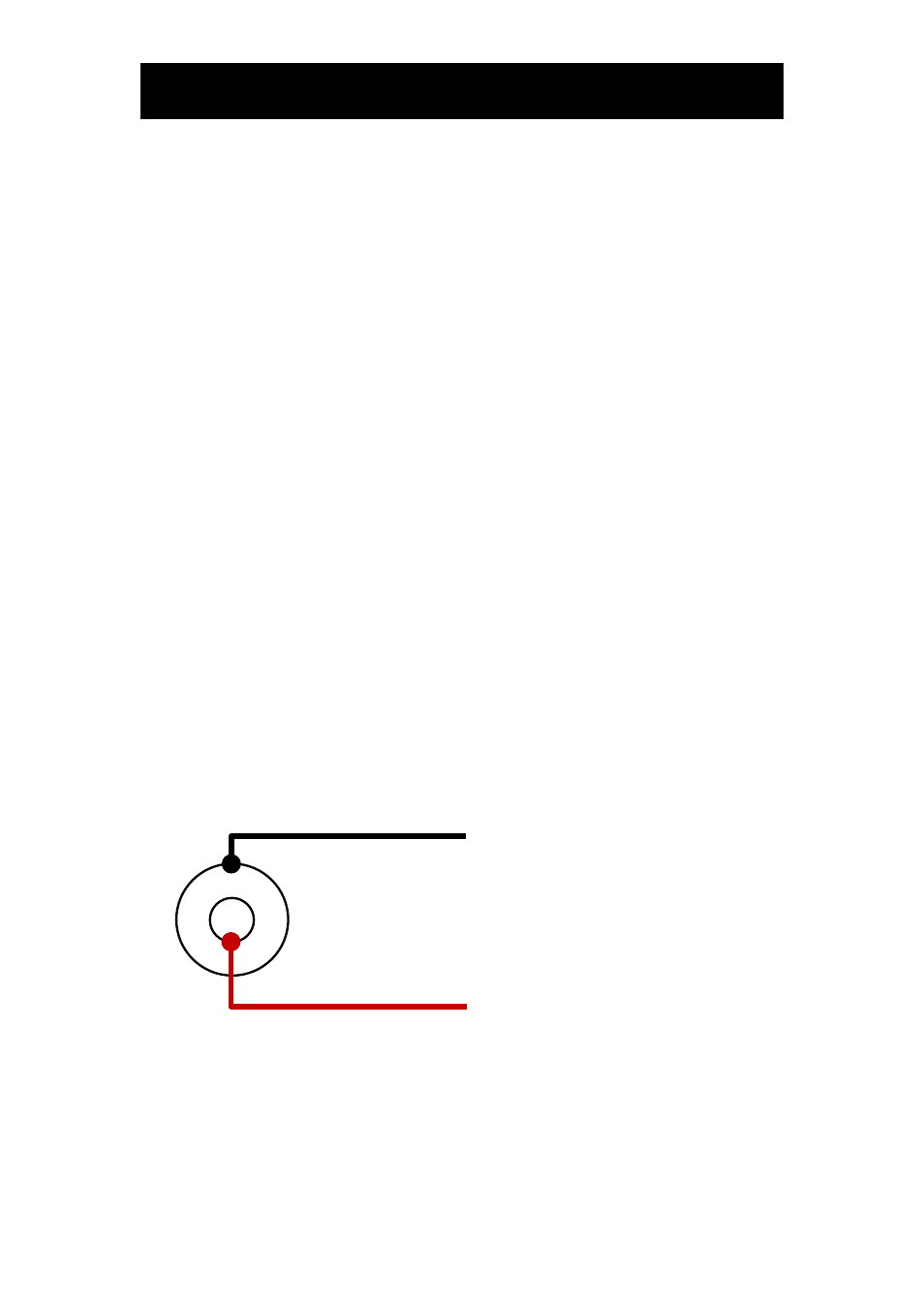

CONNECTION
RCA SOCKET,
CENTRE = POSITIVE / SEND.
RCA SOCKET,
SHELL = NEGATIVE / RETURN.
