CONNECTION continued…

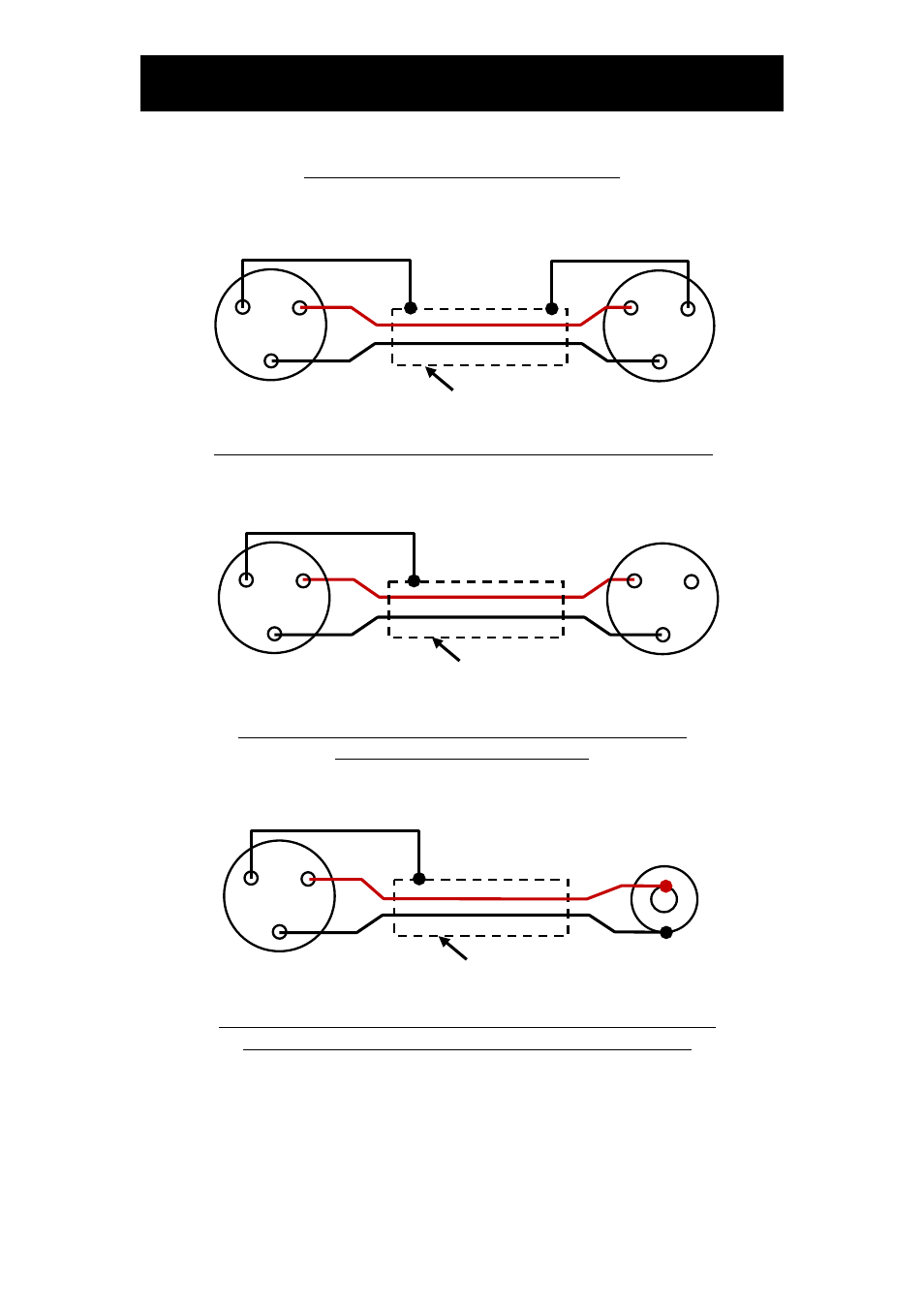

CABLE CONFIGURATION OPTIONS
CONVENTIONAL: SCREEN CONNECTED AT BOTH ENDS
XLR FEMALE XLR MALE
3
1
1
2
2
3
SCREEN
PREAMP OUTPUT POWER AMP INPUT
SCREEN CONNECTED AT PREAMP END ONLY, TO
ELIMINATE GROUND LOOPS
3
2
1 2
1
3
SCREEN
XLR FEMALE XLR MALE
PREAMP OUTPUT POWER AMP INPUT
CABLE CONFIGURATION FOR XLR BALANCED PREAMP
OUTPUT TO RCA UNBALANCED AMPLIFIER INPUT
2
1
3
SCREEN
XLR FEMALE RCA MALE
PREAMP OUTPUT POWER AMP INPUT
