EXTENSION PLATE SELECTION BASED ON FPTV THICKNESS
6.
Depending on the FPTV depth the use of Extension Plates will vary. Refer to the
following; TABLE 1 and FIGURES 4-9.
Figure
FPTV
Thickness
Extension
Plate
Minimum
TV Wall Mount
Bracket Depth
4 & 5
1.0 - 1.4”
No
1.0"
6 & 7
1.9 - 2.8”
Short
1.0"
8 & 9
2.7 – 3.6”
Long
1.0"
TABLE 1

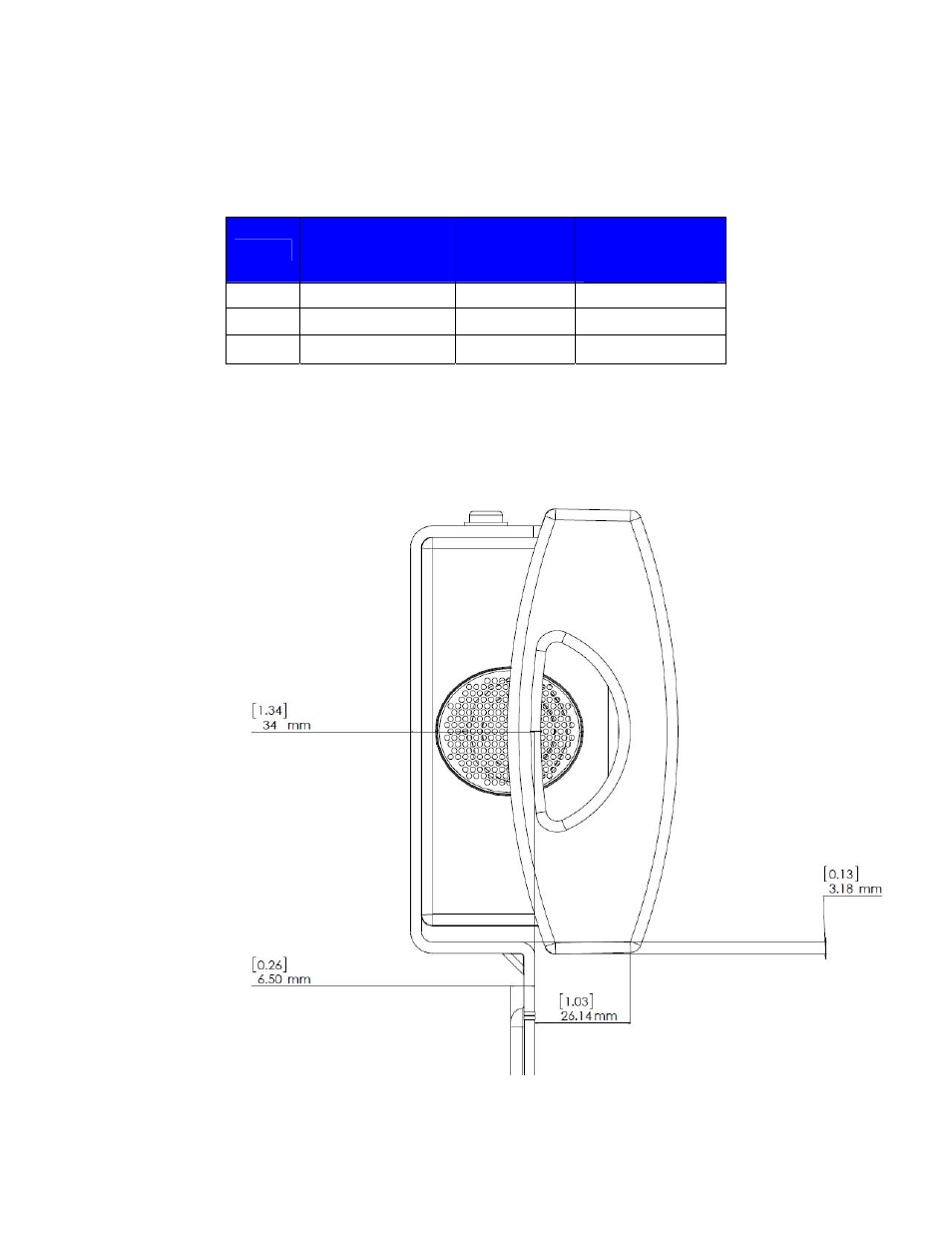

FIGURE 4
