© 2013 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. DESIGNED FAST. DESIGNED TOUGH.
8
v
If the ESC temperature exceeds 80 degrees
Celsius for 5 seconds or longer, the ESC will
enter temperature protection mode and the
status LED will blink quickly.
Once the ESC has cooled down it will resume
normal operation.
ESC Status LED
LED off: Neutral Throttle
LED blinking slowly: Partial Forward/
Reverse/Brake
LED solidly on: Full Forward/Reverse/
Brake
Temperature Protection
ESC Tuning
Throttle Setup
Do not move the throttle when switching the model on and the ESC will automatically set the throttle neutral. A long beep
will sound to confirm setup.
Low Voltage Cut Off
Battery Mode NiMh LiPo
Cut-off Voltage 4.5v 6.2v
Battery Mode: NiMh
Reverse: On
Factory
Defaults

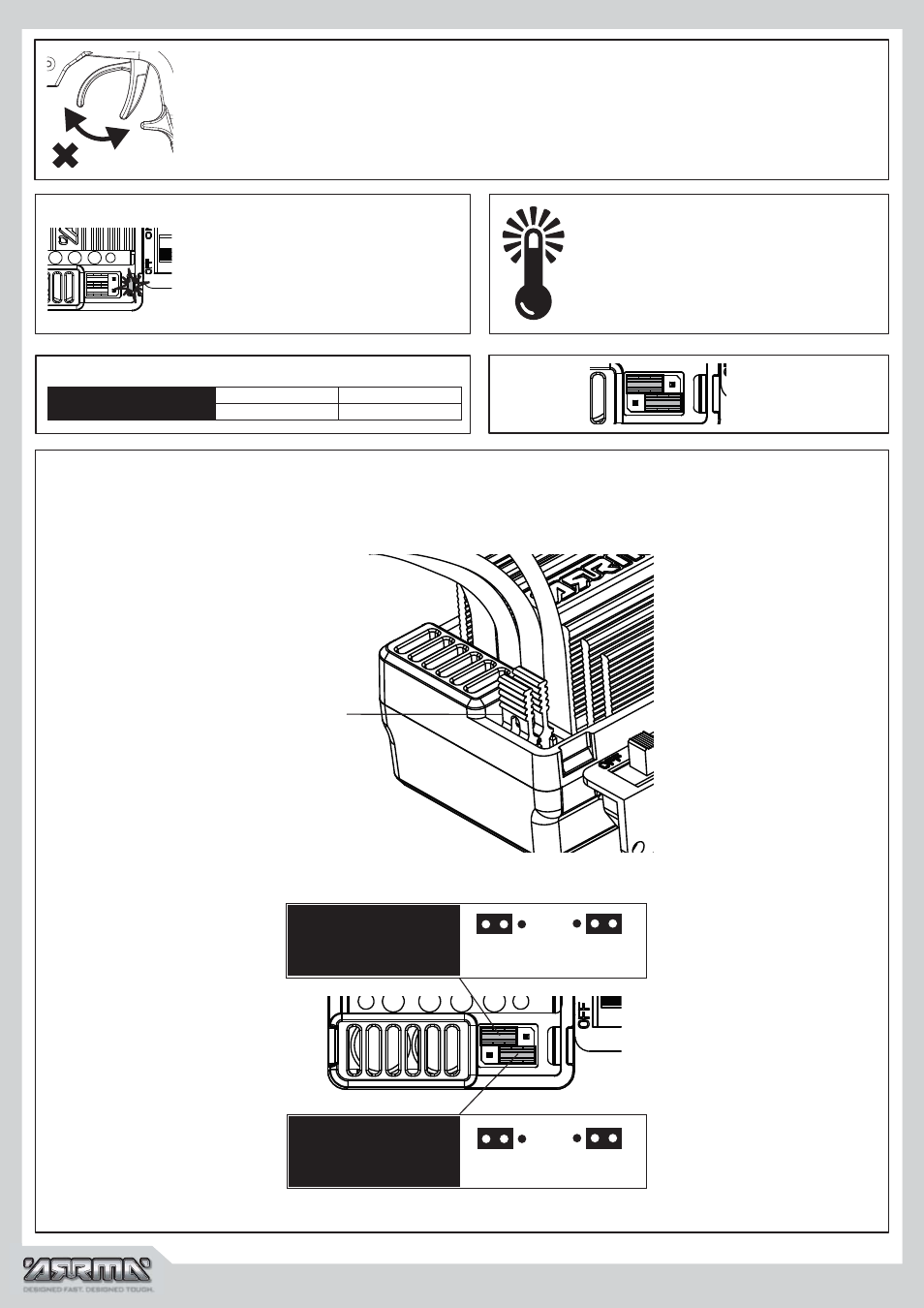

The MEGA brushed ESC has two tuning options - battery mode and reverse lock out. The setting of these modes can be changed by
moving the position of the setting ‘jumpers’
LiPo NiMh
BATTERY
MODE
ON OFF
REVERSE
Setting 'Jumpers'
