7

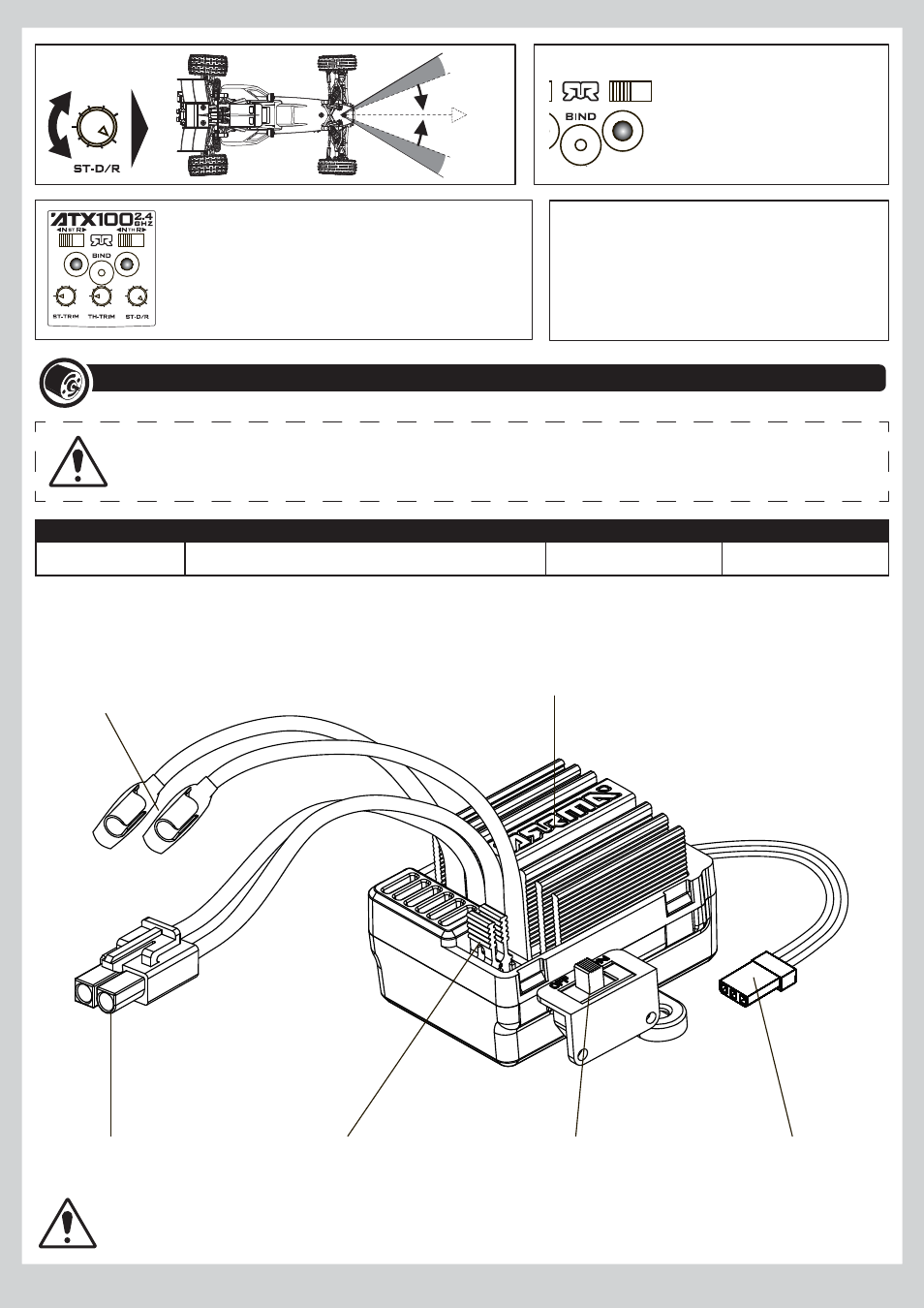

If using LiPo batteries you must set the correct battery mode on the ESC (electronic
speed controller) to prevent battery damage.
Receiver Plug (CH2)
Heat-sink
Electronic Speed Controller (ESC)
Battery connector Power Switch Setting ‘Jumpers’
Motor wires
(Orange/Red +)
(Blue/Black -)
Dual Rate Battery Status
If battery status LED is flashing,
the batteries need to be replaced.
Factory Defaults
Steering/throttle channels switches set to ‘N’,
Steering and Throttle trim set to middle/zero adjustment.
Steering Dual Rate at 100%/fully right.
HEAT-SINK MAY BE HOT AFTER USE
Contains FCC ID: ZL4-KST-HXGT2
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following conditions: (1)
this device may not cause harmful interference, and
(2) this device must accept any interference received;
including interference that may cause undesired
operation.
ESC Specifications
Input Voltage 6-7 NiMh (7.2-8.4v) / 2S Lipo (7.4v) BEC Output 5.0v/2A Max
