Connecting the Monitor

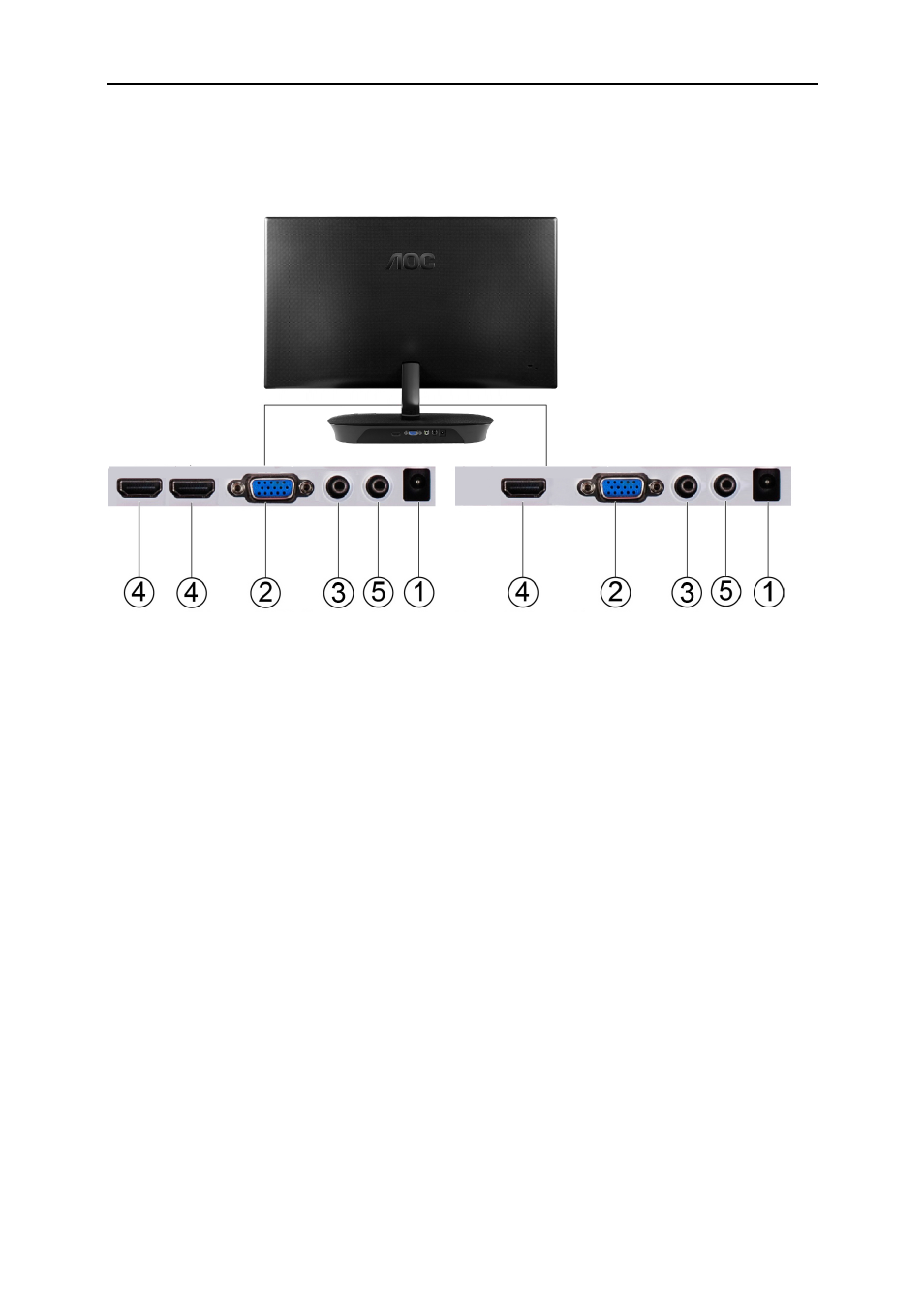

Cable Connections In Back of Monitor and Computer:
1. DC port
2. Analog (DB-15 VGA cable)
3. Audio
4. HDMI/MHL
5. Earphone
To protect equipment, always turn off the PC and LCD monitor before connecting.
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.
I2473PWM I2473PWY
1. Connect the power cable to the DC port on the back of the monitor.
2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the
computer's D-Sub port.
3. Optional –( Requires a video card with audio port) - Connect one end of the audio cable to the back of the monitor
and connect the other end to the computer’s audio port.
4. Optional –(Requires a video card with HDMI/MHL port) - Connect one end of the HDMI/MHL cable to the
back of the monitor and connect the other end to the computer’s HDMI/MHL port.
5. Turn on your monitor and computer.
