8
Transmitter battery replacement
If effective distance seems to be decreased, it is possible the battery level are low and
require replacement. In order to replace the battery, undo the three screws on the back of
transmitter to release the cover. Replace with same type and specification of battery which is
27A 12V

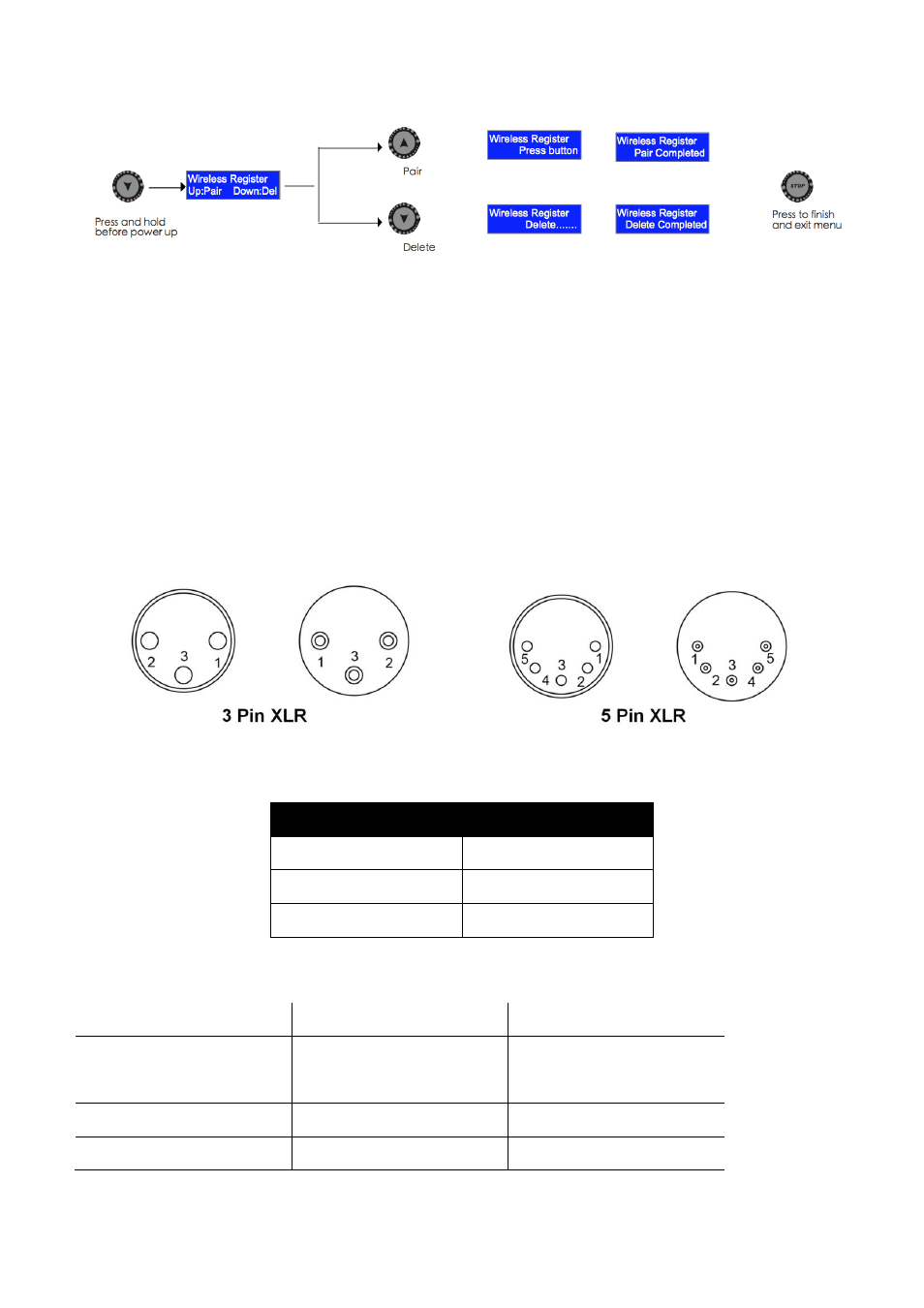

DMX Connector Pin Assignment
The machine provide 3 or 5 pin XLR connector for DMX connection. Diagram below indicate
pin assignment information
Pin Function
1 Ground
2 Data-
3 Data+
DMX Channel Function
Channel 1 DMX Value Range Function
Fog
0
– 4
5
– 255
Fog Off
Fog On
Channel 2 DMX Value Range Function
Red LED 0-255 0-100%
