Vermont Casting 2477 - Manual (Page 16)

16
Dutchwest Non-Catalytic Convection Heater
30002314

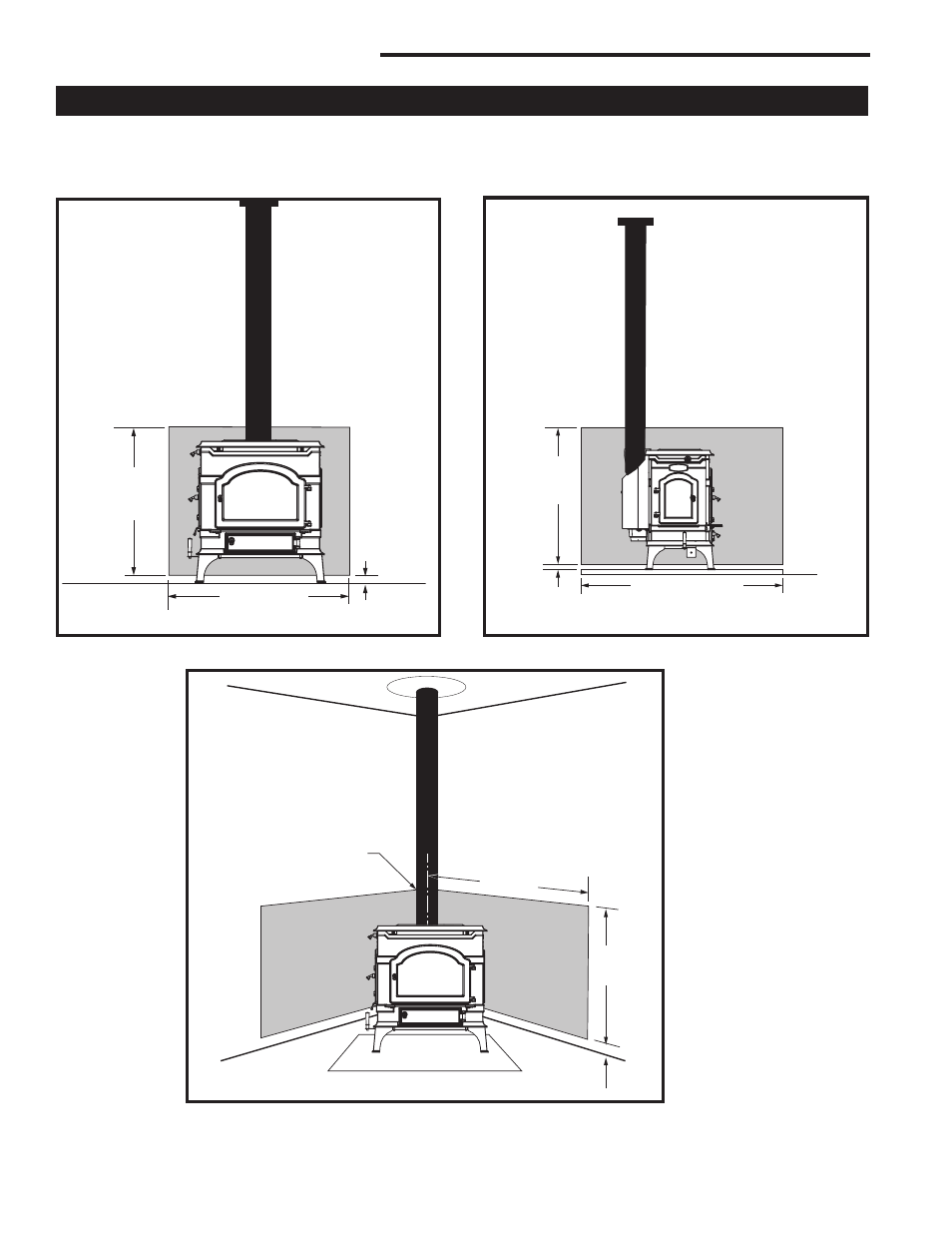

Wall Heat Shield Dimensions
DutchWest Non-Catalytic Convection Heater Model #2477
ST802
sidewall protection
5/04
48”
(1220mm)
48” (1220mm)
Spaced 1”
(25mm)
from Floor ST802
Fig. 22 Sidewall protection.
ST803
corner wall protection
5/04
48”
(1220mm)
48”
(1220mm)
Spaced 1”
(25mm)
from Floor ST803
Fig. 23 Corner wall protection.
Wall Shields
Meet at
Corner
ST801
rear wall protection
5/04
ST801
48”
(1220mm)
Rear Exit
48” (1220mm)
Centered Behind Stove
Fig. 21 Rear wall protection.
Spaced 1”
(25mm)
from Floor
