ation. To select, rotate the aperture selection wheel at the front of the instrument head.
Corrective Lens Selection
This unit is equipped with 19 corrective lenses from +20 to -20 diopters (negative lenses
in red). To select, rotate the corrective lens selection wheel at either side of the instrument
head. Selected lenses can be viewed in the lighted panel on practitioner side of instrument

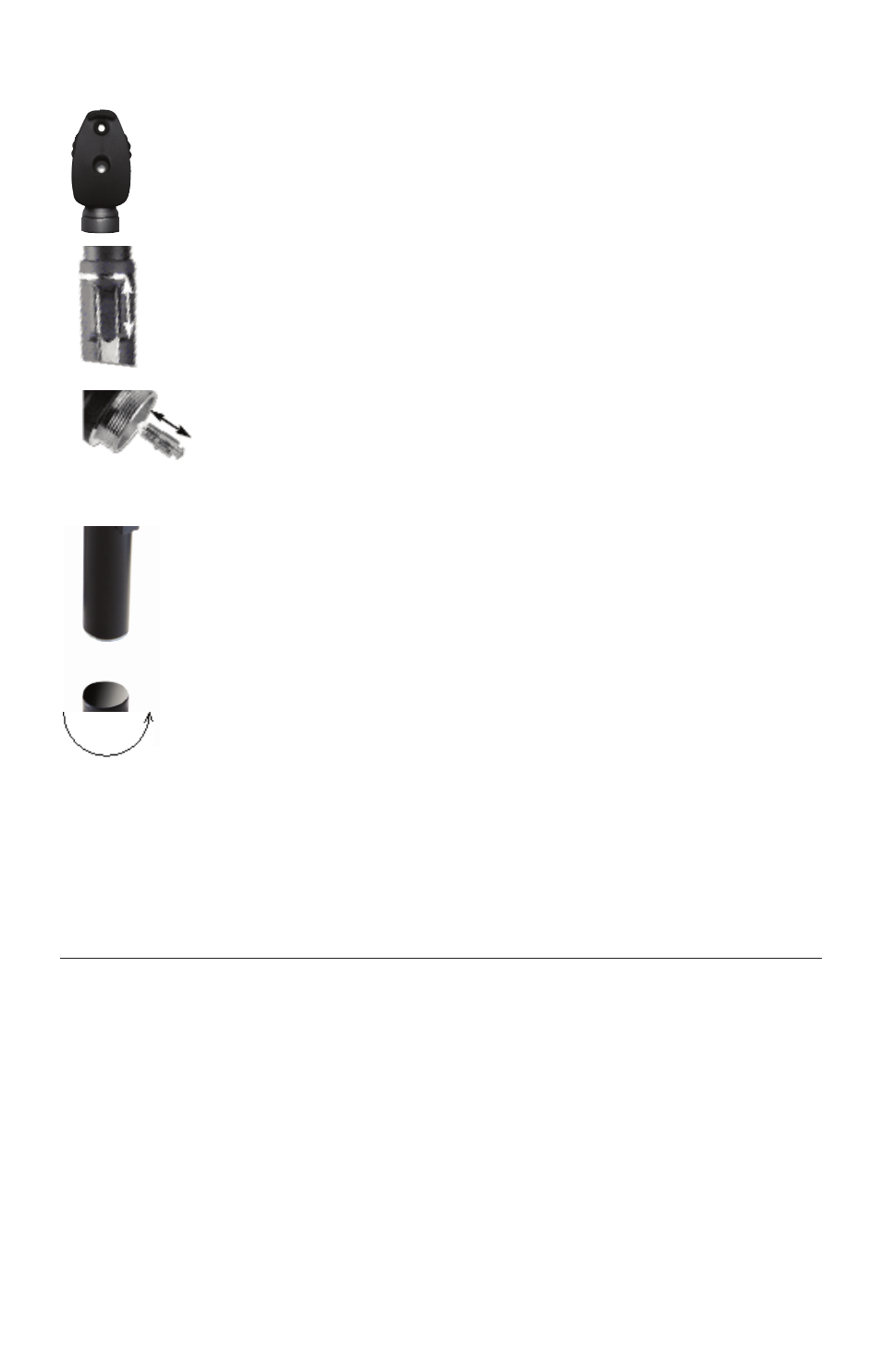

Turning Instrument On
To illuminate, slide the on/off switch located on the battery handle pocket clip away
from the instrument head. Slide the switch in the opposite direction to turn off.
Replacing Xenon Lamp
Remove the Instrument head by turning counterclockwise. Grab end of lamp from
inside base of instrument head and remove. Replace with new lamp, taking care
not to touch glass, and align lamp metal guides on side of lamp with grooves in
lamp socket.
NOTE: Allow lamp to cool for five minutes before handling if device has been recently
used. (Otoscope lamp p/n 5111N-4, Ophthalmoscope lamp p/n 5112N-4)
Battery Replacement
This unit requires 2 “AA” batteries. For best performance, we suggest alkaline batteries.
To replace, remove the battery cap at the base of the handle by turning counterclockwise
and replace batteries, taking care to observe correct polarity. NOTE: This instrument should
be turned OFF when not in use. If storing for extended lengths of time, remove batteries
completely.
Handle Care and Maintenance
Periodically check the condition of both the batteries, making sure there is no sign of corrosion or oxi-
dation. Always replace BOTH batteries. Alkaline batteries are recommended. Remove batteries from han-
dle if instrument will not be used for an extended period of time.
Cleaning and Disinfection
Basic Cleaning Procedure for Battery Handles, Otoscope and Ophthalmoscope Heads
To clean the exterior of the device, prepare a 70% isopropyl alchohol solution and soak a lint-free
cloth. Wipe down the exterior of the ophthalmoscope head and handle, cleaning all external surface
areas. Care should be taken to prevent excess liquid from seeping into the components.
Isopropyl alchohol may be substituted with commonly used, EPA-registered hospital disinfectant
wipes for cleaning purposes if desired. Please refer to the directions provided by the manufacturer of
the wipes for appropriate instructions for use to ensure effective contact time between the wipe and the
device.
It is important to note that solution residue on the magnifying lenses may decrease device perform-
ance. All excess cleaning fluids must be carefully wiped clean if these surfaces are cleaned. The lenses of
the instrument head may be cleaned with a lint-free cloth or lens paper.
OFF
ON
➞
