Core Operation

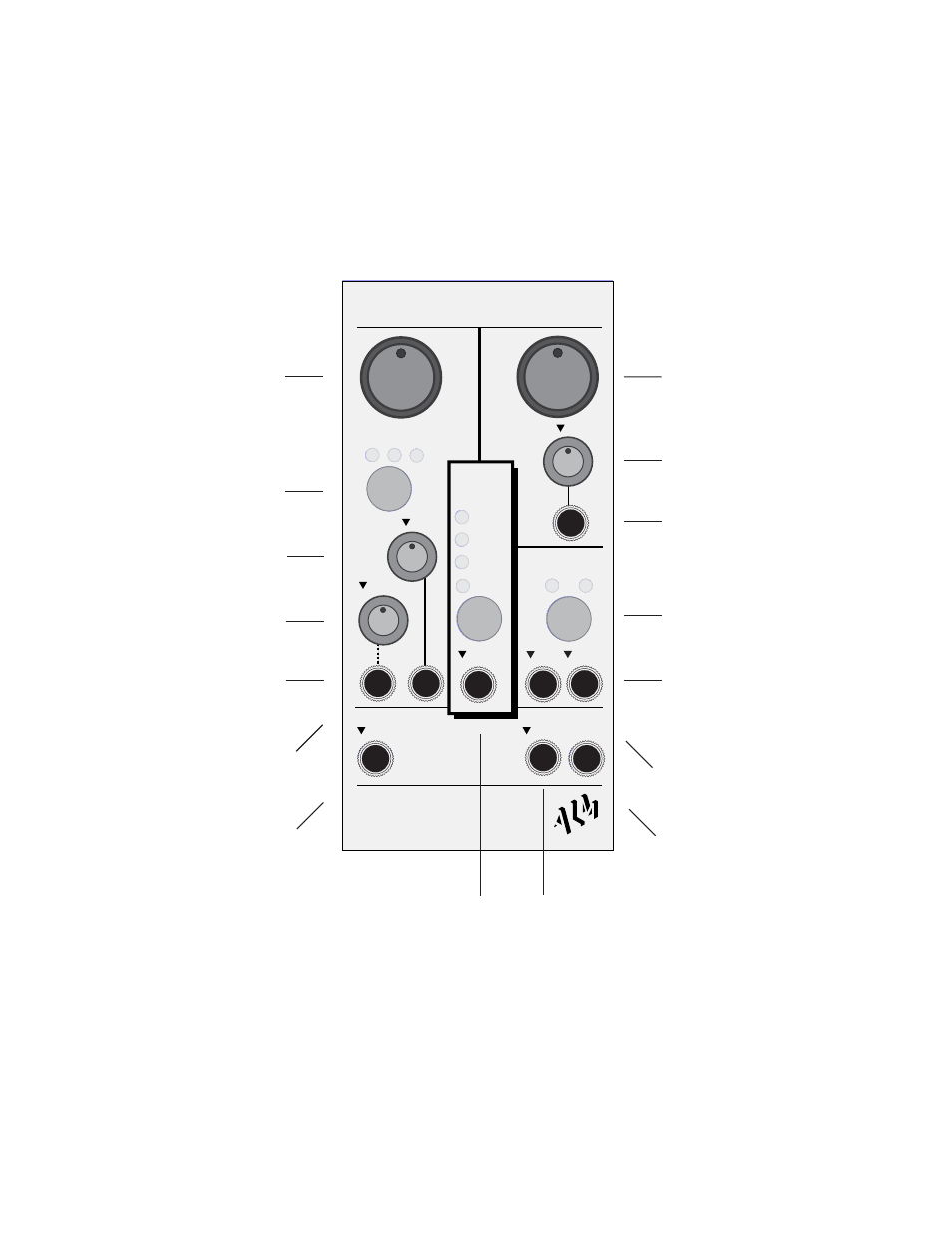

Panel Layout
OUT
Wave
Shape
Mod Osc
_
HP
LP BP
Shape
PWM
Res
Filter
V/Oct
PWM
FI
LT
ER
Ext In
V/Oct
Type
Mo
d
Sy
nc
Pulse wave shape pulse
width control.
Pulse width CV attenuator.
Pulse width CV input.
0-8V
Modulation oscillator
type selection control.
Modulation oscillator
type selection input.
0-5V
Audio Output.
External Audio
Input.
Oscillator Wave shape
Selection.
0-5V
Oscillator 1 Volt per Octave
Frequency input.
0-5V
Filter Resonance CV input.
0-5V
Filter Cutoff CV input.
0-8V
Filter resonance
offset & attenuator.
Filter cut off
attenuator.
Filter type
selection.
Filter Cut off
control.
Modulation oscillator
1 volt per octave input.
0-5V
ALM-003 - ‘SID GUTS’
