H Series IP Camera User Manual –with Pan/Tilt of Mega pixels

11

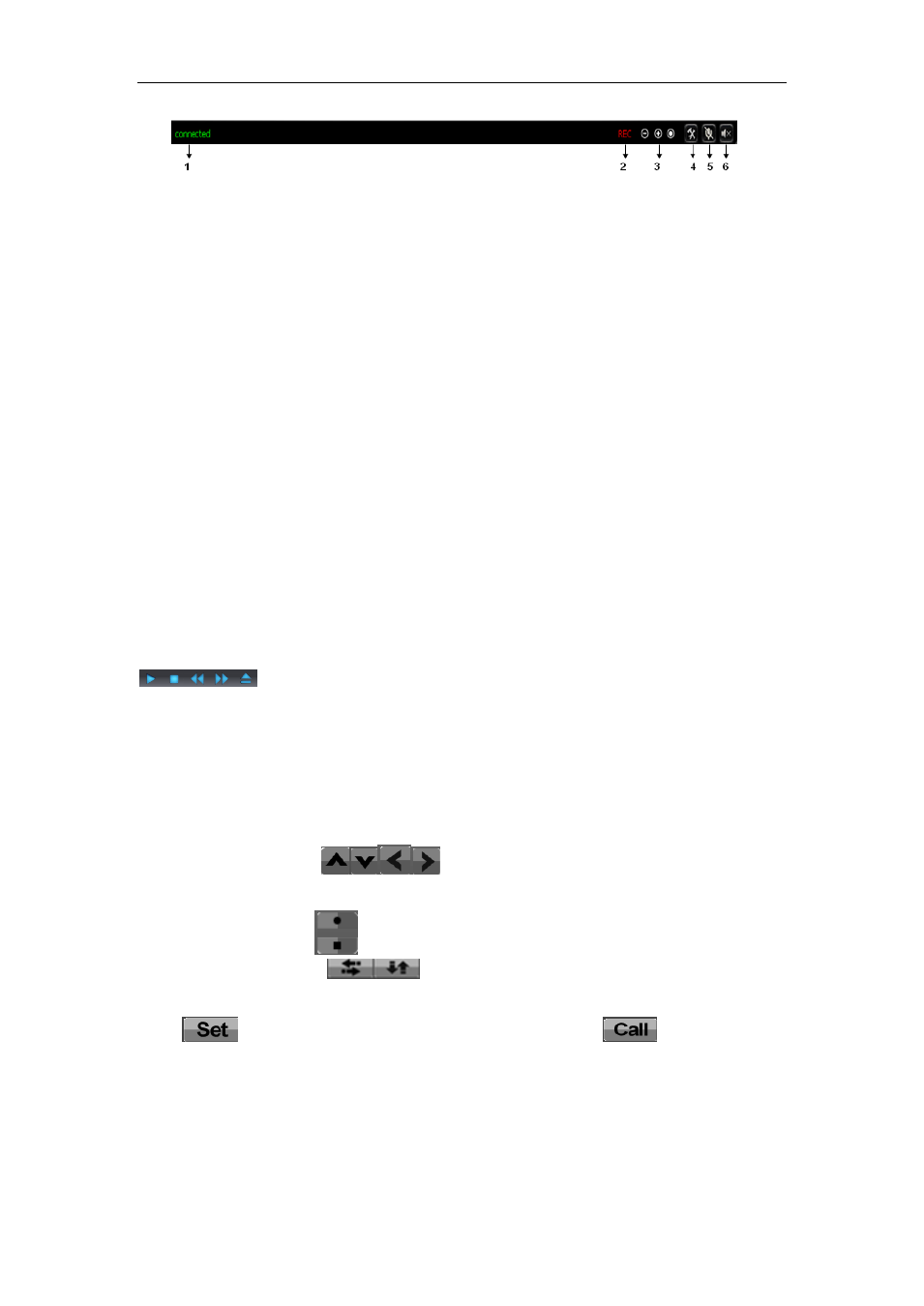

Figure 8

① connection status display
② Record status display:if click “Record” in figure 7, it will show “REC” which

stands for recording; click record button again, it will stop.

③ Zoom out, zoom in and reduction picture buttons
④ File saving location setting:you may set the location for recording and capturing,

the default location is d:/record;

⑤ Talk-back button::it can transmit the sound which collected by the computer to

the equipment. And played out by the speakers which was connected to the

equipment. Click it again, it will stop playing.

⑥ Audio play button: it can play out the sound which collected by the equipment on

the computer, click it again, it will stop playing.

3) Visit the video

Use the first Stream when visit in LAN, use the Second Stream when visit in Wan. The

video area is up to the resolution .The higher resolution, the bigger image.

4)

Record/playback/capture/SD card

Click “Record” to start record. Click again to stop record.
Click “playback”, it will show a player which can play the record video. For the buttons:

, means: play; stop; choose the last video file ; choose the next video

file ; open the file.
Click “capture” to save the picture to the specified file.
Click “SD card” can browse the files in the SD card (If the SD card already inside the
camera).

5) Control the camera

Click the below buttons

can control the camera move up, down, left

and right.

Click the below buttons

can center and stop the movement of the camera

Click the below buttons

will make the camera move around one time

horizontal and vertical respectively.

Click

, when the camera move to another point, click

,the camera will

move back to the “Set” point.
